12174 BLDC 12 Slot 5V Brushless DC Motor 22.5mm 820 RPM Low Cogging for Drone Gimbal
-
Highlight
BLDC 12 slot 5V motor
,22.5mm 820 RPM brushless motor
,low cogging drone gimbal motor
-
Motor Model12174 BLDC
-
Motor TypeBrushless Stator Motor, 12 Slots
-
Rated Voltage5V DC
-
Rated Speed820 +/- 82% RPM No Load
-
Rated Current<= 24 MA No Load
-
Rated PowerOn Request (drive Dependent)
-
Rated TorqueOn Request (drive Dependent)
-
Stator Slots12 Slots
-
Winding ConfigurationConcentrated 3-phase Winding
-
Number Of PolesMagnet Ring Matched To 12 Slots
-
Winding TurnsSet Per Target Speed, On Request
-
Wire DiameterSelected Per Resistance Target
-
Winding Connection3-phase, PWM Brushless Commutation
-
Motor Outer Diameter22.5 Mm Stator
-
Motor LengthPer 2D Drawing
-
Shaft Diameter2 Mm
-
Rotor StructurePermanent Magnet Rotor, Gimbal Layout
-
Mounting DimensionsPer 2D Drawing
-
Bearing TypeOil-impregnated Bearing (ball Bearing On Request)
-
Stator Resistance38.13 - 43.87 Ohm
-
Inductance8.84 - 10.16 MH
-
LifeUp To 20000 Hours
-
Place of OriginDongguan, Guangdong, China
-
Brand NameLihua Motor / HCS Motors
-
CertificationISO 9001, CE, RoHS, REACH
-
Model Number12174 BLDC
-
Minimum Order Quantity750 Pieces
-
PriceNegotiation
-
Packaging DetailsFoam box or plastic box, export carton
-
Delivery Time30-45 days
-
Payment TermsL/C, T/T, D/A, D/P, Western Union,
-
Supply Ability50000 Pieces per Day
12174 BLDC 12 Slot 5V Brushless DC Motor 22.5mm 820 RPM Low Cogging for Drone Gimbal
12174 12 Slot Brushless Motor 5V 820RPM
22.5mm stator, 12 slots, 5V DC. Designed for drone gimbals and precision heads that need a smooth, low-cogging rotation at very low current.

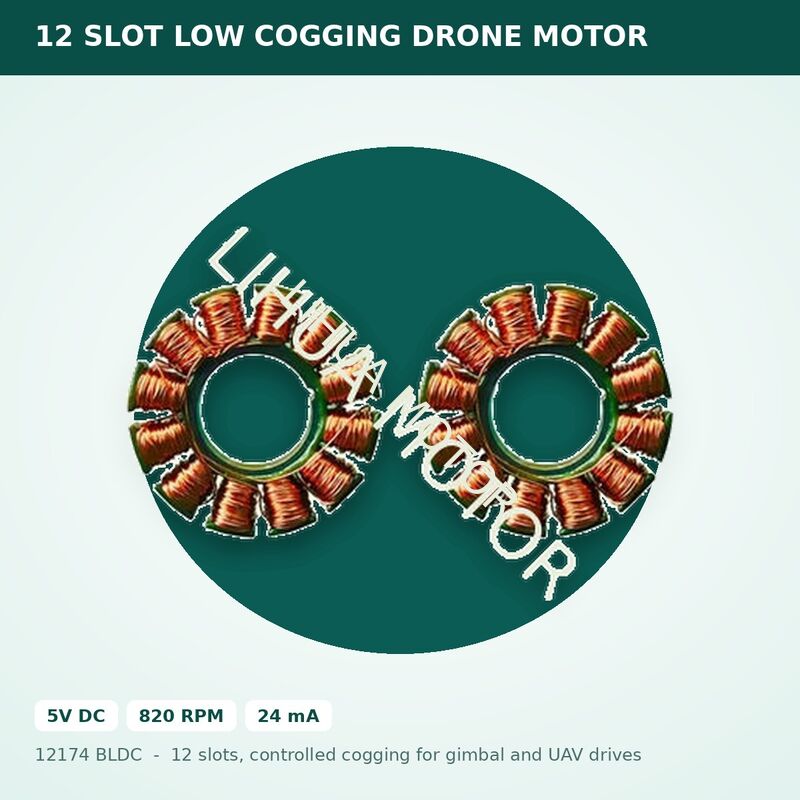

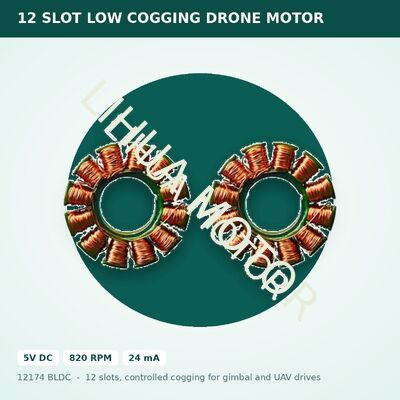

12 Slots5V DC820 RPM24 mALow CoggingDesign Focus: 12 Slots Spread the Cogging

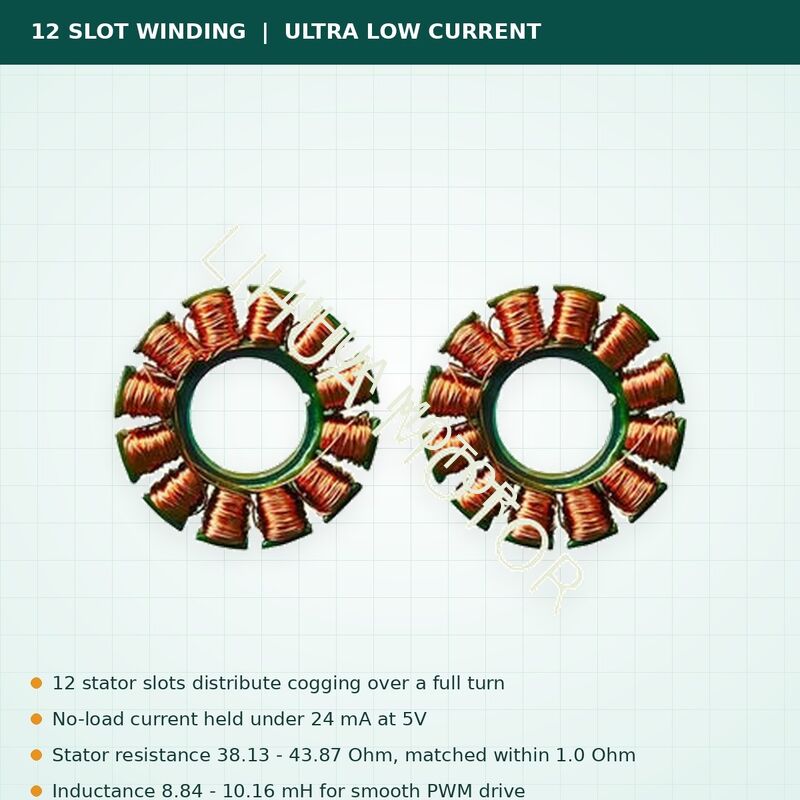

Cogging in a small brushless motor is a geometric problem. With 12 stator slots the detent torque is distributed over more positions per revolution, so each step is smaller: a gimbal axis driven by this stator moves through its travel without the visible notch that a 6-slot stator produces. The same geometry keeps the audible noise low at 820 RPM, which matters when the motor sits centimetres from a microphone.
Winding control is the other half of the story. Resistance is held inside 38.13 - 43.87 Ohm with the polar difference under 1.0 Ohm, so all three phases pull almost the same current and the drive does not have to fight an imbalance. Inductance of 8.84 - 10.16 mH suits a PWM driver running in the 20-30 kHz band.

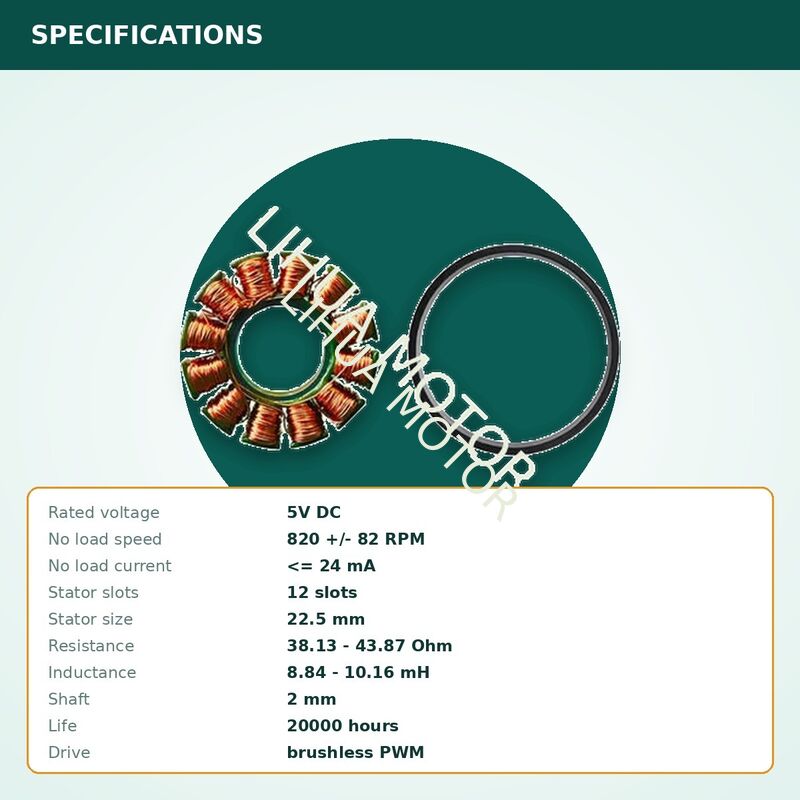

1. Electrical Specifications
| Parameter | Value |
|---|---|
| Rated voltage | 5V DC |
| No-load speed | 820 +/- 82% RPM |
| No-load current | <= 24 mA |
| Rated power | on request, set by the drive stage |
| Rated torque | on request, set by the drive stage |
| Rated current | per application, verified with your driver |
| Stator resistance | 38.13 - 43.87 Ohm |
| Polar difference | <= 1.0 Ohm |
2. Stator & Winding Design
| Parameter | Value |
|---|---|
| Stator slot number | 12 slots |
| Winding configuration | concentrated 3-phase, manual or automatic stator winding |
| Number of poles | magnet ring matched to the 12 slot layout |
| Winding turns | set per target speed, on request |
| Wire diameter | selected to hit the resistance window |
| Winding connection | 3-phase PWM brushless commutation, CW / CCW |
| Stator inductance | 8.84 - 10.16 mH |
3. Mechanical Structure
| Parameter | Value |
|---|---|
| Motor outer diameter | 22.5 mm stator |
| Motor length | per 2D drawing |
| Shaft diameter | 2 mm |
| Rotor structure | permanent magnet rotor in gimbal layout |
| Mounting dimensions | per 2D drawing, custom bracket on request |
| Bearing type | oil-impregnated bronze, ball bearing optional |
4. Customization Capabilities
| Capability | Scope |
|---|---|
| Custom voltage & speed | Winding changed to your rated voltage and target RPM |
| Custom stator slot & pole configurations | Slot and pole combinations re-designed per application |
| Custom winding design | Turns, wire diameter and connection set by drawing |
| Hall sensor / sensorless options | Hall feedback or sensorless FOC drive on request |
| Integrated gearbox / encoder | Gearbox, encoder and driver board can be fitted to the same shaft |
| OEM & ODM support | 15+ years of OEM / ODM micro motor production, custom logo and packing |
Typical Applications
Drone camera gimbals, pan-tilt heads, wearable stabilisers, robot end effectors, medical sampling heads and other low-speed precision axes running from a 5V rail. Manual winding for prototypes and automatic stator winding for mass production are both available from our winding line.
Quality and Delivery
Stator resistance, inductance and polar difference are measured on every batch and reported with the shipment. ISO 9001 production, CE / RoHS / REACH compliant. MOQ 750 pieces, delivery 30-45 days.
