Design Focus: A 6 Slot Stator That Holds Up Under Pump Load

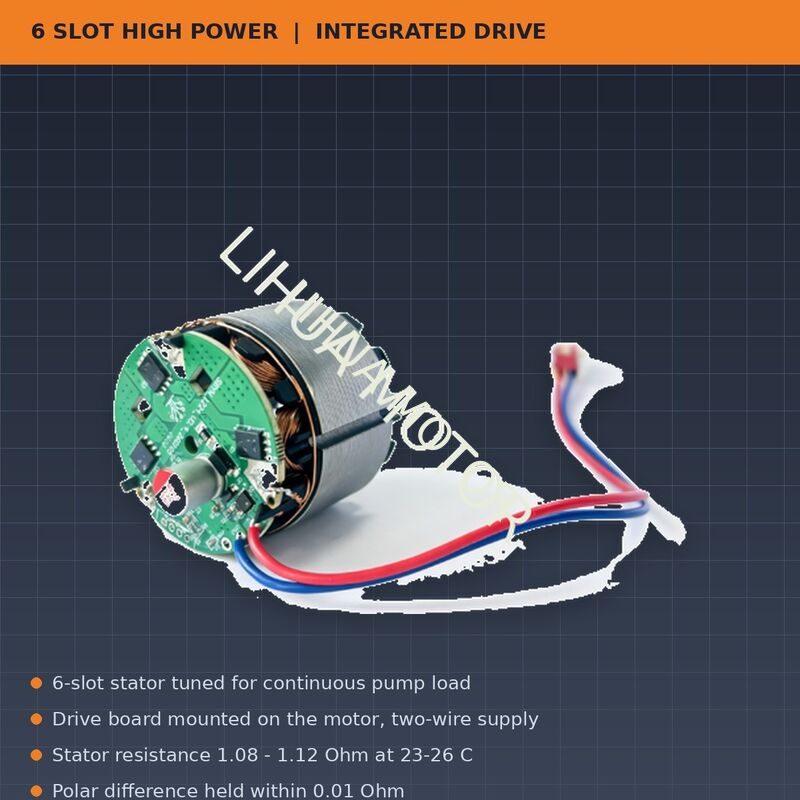

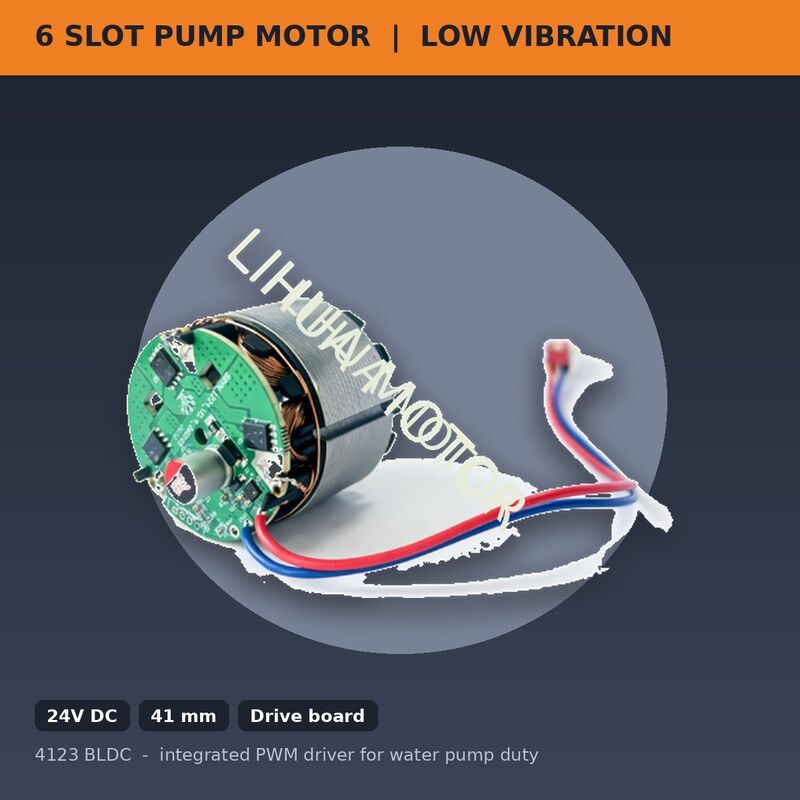

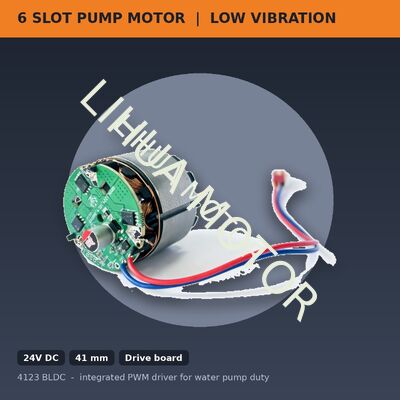

A pump motor spends its life at one operating point, pressed against a hydraulic load, and it is started against a closed outlet. That is a different duty from a fan or a gimbal. The 6-slot stator here has fewer, wider teeth, which gives more copper cross-section per slot for the same 41mm diameter - useful when the winding has to carry continuous current without a large temperature rise.

Winding consistency is what keeps vibration down. Stator resistance is held to 1.08 - 1.12 Ohm at 23-26 C with a polar difference under 0.01 Ohm, so the three phases produce almost identical torque and the rotor does not get a once-per-revolution kick that would show up as pump noise. The drive board is mounted on the motor, so the customer connects supply and a PWM signal only.

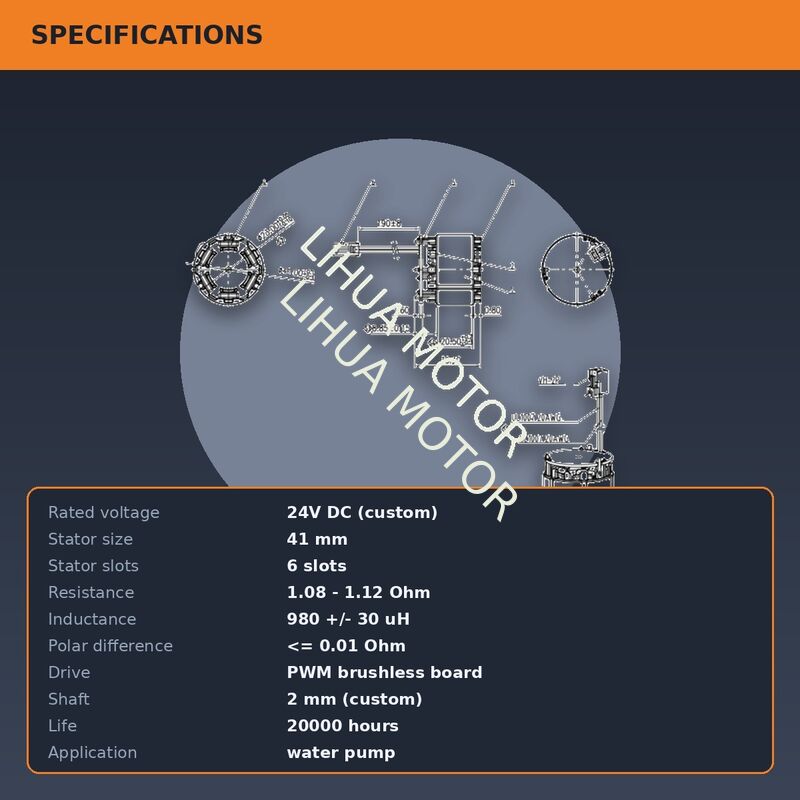

1. Electrical Specifications

2. Stator & Winding Design

3. Mechanical Structure

4. Customization Capabilities

Typical Applications

Domestic and industrial water pumps, booster pumps, circulation pumps in heating and cooling loops, garden and pressure washers, aquarium and hydroponic pumps, and automotive auxiliary pumps that need a 24V brushless drive with the electronics already on board.

Quality and Delivery

Each stator batch is checked for resistance and polar difference, then the assembled motor is run on a pump rig where a head curve is supplied. ISO 9001 production, CE / RoHS / REACH compliant, custom logo and packaging available. MOQ 500 pieces, delivery 30-45 days.
