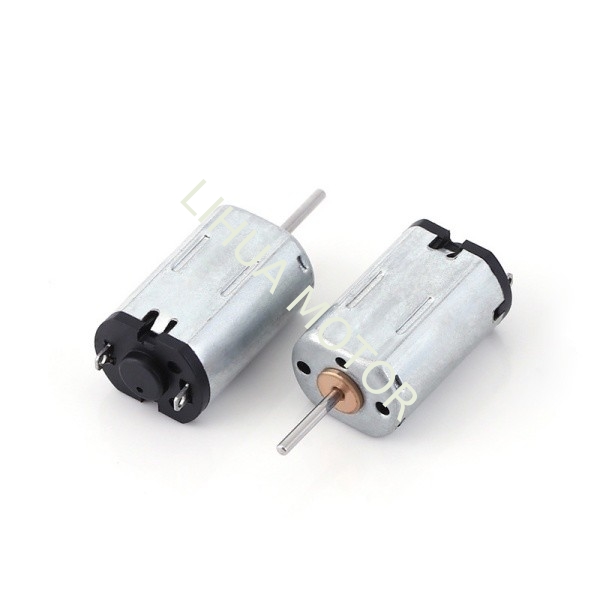

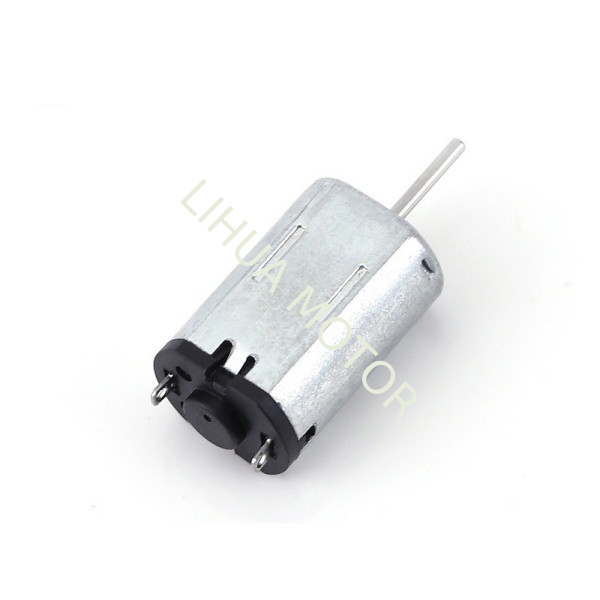

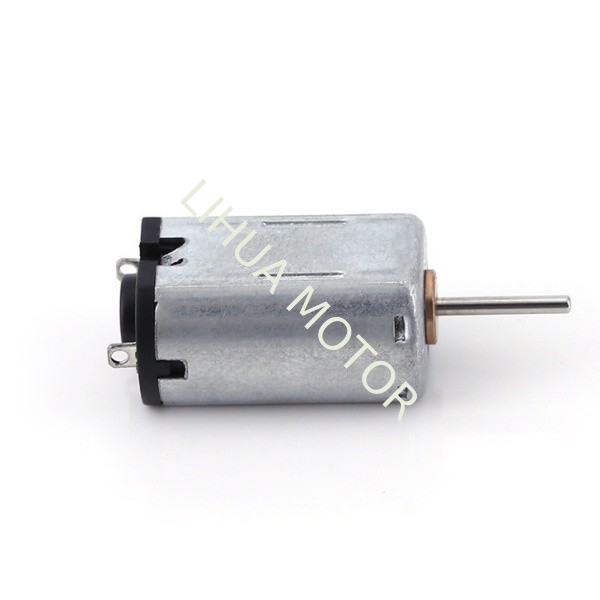

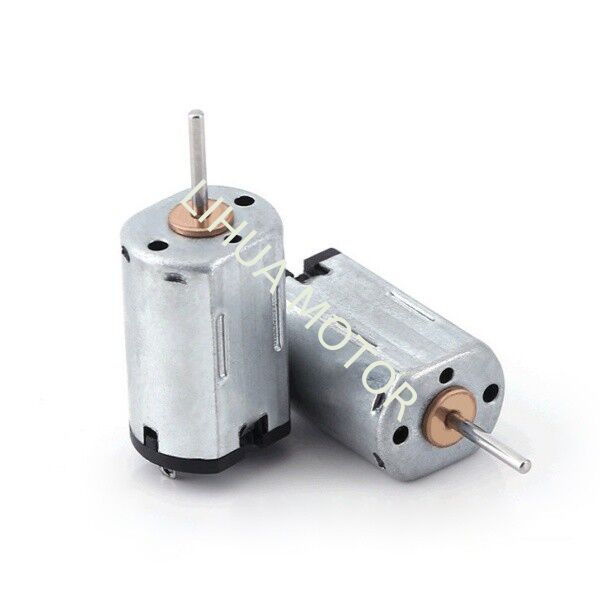

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments

Products - Small Motor
  • Highlight

    FF-M20 Small Motor

    ,

    Small Motor 8mm*10mm

    ,

    Small DC Motor 3V

  • Model Name
    FF-M20 Mini Motor
  • Type
    Micro Motor,DC Motor
  • Motor Body Size
    8mm*10mm*15mm
  • Output Shaft Length
    3.5mm/3.6mm/4.3mm/15.5mm Or As Request
  • Shaft Diameter
    4mm
  • Rated Voltage
    1.5v 3v 5V 6v 7.5v 12v Dc Or As Request
  • Torque
    9.6g.cm/5.7g.cm Or As Request
  • Output Power
    0.1-3.5w
  • Usage
    Portable Camera, Car CD,MD Recorder, Electric Shaver, Massager
  • Commutator
    Precise Metal Brush
  • Speed(rpm)
    6000rpm/8000rpm/15000rpm/18000rpm Or Custom
  • Construction
    Permanent Magnet
  • Weight
    4g
  • Protect Feature
    Drip-proof
  • Efficiency
    75%
  • Direction Of Rotation
    CW/CCW
  • Name
    Small Motor
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor
  • Certification
    ISO9001,Reach,RoHs,SGS
  • Model Number
    FF-M20
  • Document
    6-FF-M20-Model.pdf
  • Minimum Order Quantity
    2000pcs
  • Price
    FF-M20 small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM
  • Packaging Details
    Carbon Box
  • Delivery Time
    25-45days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    10000pcs/day

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments

  • FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
  • FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
  • FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
  • FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
  • FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
Get Price Contact Now

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments



FF-M20 small motor with 8mm*10mm*15mm precise motor size can be used in small instruments: portable camera, DIY toys, eyebrow tattoo massager, smart door lock, small household appliances, aero model.





FF-M20 Mini Motor Parameter List

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A mNm R/min A W g.cm A
FF-M20-1550 1-3V 1.5V 18000 0.1 0.194 14601 0.387 0.32 9.6 1.5
FF-M20-07220 2-4V 3.5V 8609 0.02 0.063 6546 0.063 0.09 5.7 0.201
FF-M20-09125 2-6V 5.0V 25800 0.05 0.292 20879 0.21 0.641 15.6 0.90
FF-M20-10105 2-6V 5.0V 30500 0.06 0.306 24725 0.26 0.79 16.5 1.10




FF-M20 small Motor 8mm*10mm DC 1.5V 3V 3.7V 2D Drawing

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments 0

Note:

1) Dimension in the drawing can be adjusted acording to customer's requirement.
2) Motor can be designed upon the customer's requirements on performance,
installation, power connection method and motor dimension.
3) Motor can be mounted with varying shape and sizes of eccentric weight, which is
made of iron, brass, or fre-ally to become a vibralion motor.
1g=0.035oz
1inch=25. 4mm
1g.cm=0.098mN.m
10z=28.35g
1mm=0.0394inch
1mNm=10.2g cm
