FF-030PK Motor
,3V Metal Brush Motor
,5V Metal Brush Motor
-
NameFF-030PK Motor
-
Motor TypeFF-030PK
-
MaterialPrecise Metal And Plastic
-
Voltage3V 3.5V 4V 5V 6V 12V
-
Current0.02-0.08A Or As Your Require
-
Speed5000RPM-20000RPM
-
Torque0.3-0.8mN.m Or As Your Need
-
Output0.05W-2W
-
Efficiency86%
-
Direction Of RotationCCW/CW
-
Motor Shaft Length5mm Or Custom
-
Motor Diameter15.5mm
-
Motor Body Length18.6mm
-
Motor Screw HolesM2*0.4
-
Warranty48 Month
-
Weight10g
-
Place of OriginDongguan,China
-
Brand NameLihua Motor
-
CertificationISO9001 CE RoHs Reach
-
Model NumberFF-030PK
-
Document
-
Minimum Order Quantity5000PCS
-
Packaging DetailsCarton
-
Delivery Time30-45days
-
Payment TermsL/C,T/T
-
Supply Ability10000PCS/day

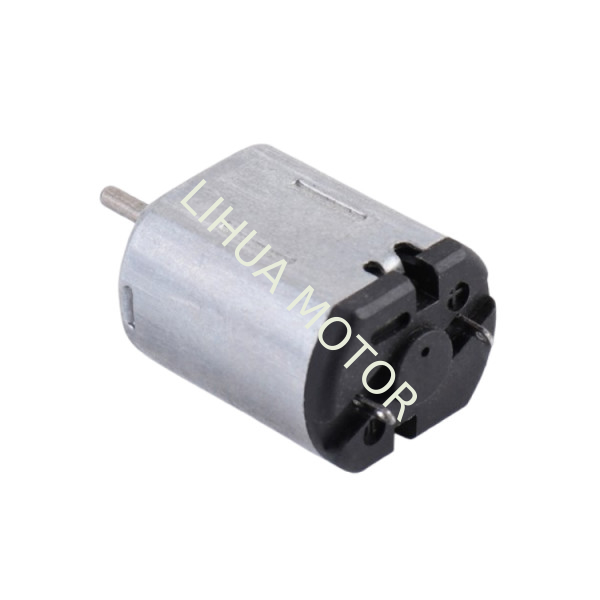

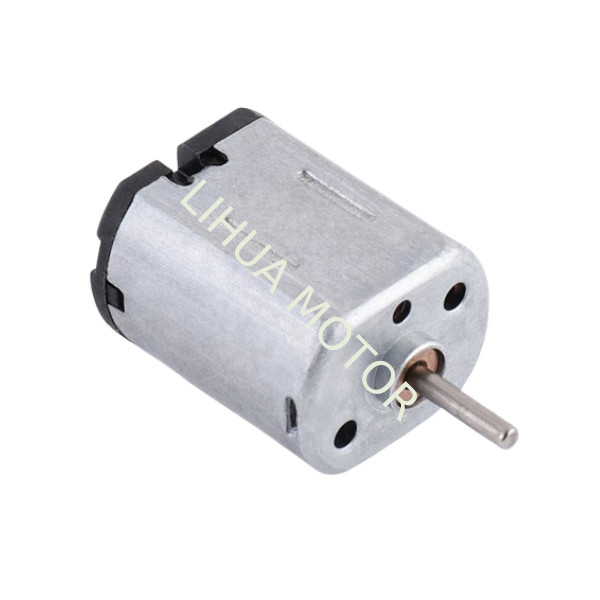

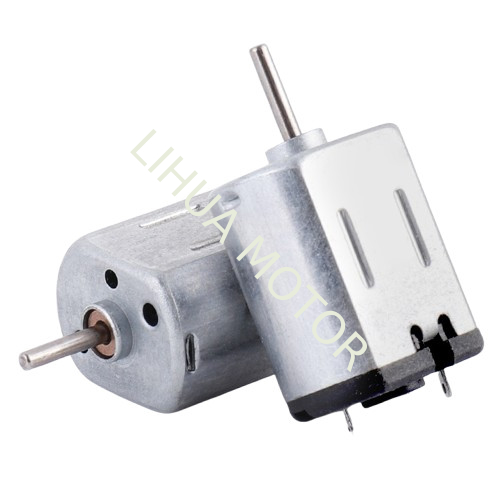

FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Mini Motor 3v 5v Metal Brush 12mm*15.5mm For Sphygmanometer
FF-030PK Custom Small Motor Service
The FF-030PK motor offers extensive customization options to meet your specific needs. Our tailored services include:
-
Product Parameters: Adjustable voltage (up to 36V), current, speed, and torque to suit your application requirements.
-
Motor Dimensions: Customizable output shaft length and diameter, as well as motor diameter for seamless integration.
-
Accessory Additions: Enhance functionality with optional plastic or metal worm gears, eccentric weights, and gearboxes.
-
Additional Custom Services: Comprehensive ODM and OEM support to deliver solutions tailored to your unique specifications.
Experience the flexibility and precision of the FF-030PK motor, designed to adapt to your exact needs. Contact us today to discuss your customization requirements!
FF-030PK Small Motor Datasheet
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | m.Nm | R/min | A | W | g.cm | A | |||
| FF-030PK-12135 | 1-4V | 3.0V | 10500 | 0.064 | 0.411 | 8411 | 0.23 | 0..36 | 19.3 | 0.833 |
| FF-030PK-07300 | 1-6V | 5.0V | 7700 | 0.027 | 0.3 | 5657 | 0.075 | 0.15 | 11.3 | 0.206 |
| FF-030PK-10180 | 3.5-6V | 5.0V | 11700 | 0.05 | 0.49 | 9230 | 0.19 | 0.48 | 24 | 0.7 |
| FF-030PK-09210 | 1-5V | 5.0V | 10500 | 0.046 | 0.44 | 8140 | 0.16 | 0.37 | 20 | 0.55 |
| FF-030PK-11160 | 2-5.5V | 5.0V | 13800 | 0.066 | 0.53 | 10870 | 0.25 | 0.60 | 25 | 0.91 |
NOTE:
1mNm= 1Ncm = 10.2gcm
Customized product models are available upon request
FF-030PK Small Motor Drawing
FF-030PK 3V 5V metal brush 12mm*15.5mm Motor Applications
Our products are sold all over the world, you can rest assured.
