Highlight
FC-280 Motor
,DC Electric Motors 12V
,Flat Carbon Brush Motor DC
-
Motor TypeFC-280
-
Standard Size18.4mm*24mm
-
Motor Body Length30.5
-
Stall TorqueUp To 320gf-cm
-
Voltage1.5V-36V
-
Efficiency85%
-
Shaft Type2mm Round /D Shaft
-
Shaft LengthL±0.5mm
-
Speed3000rpm-12000rpm
-
Shaft Diameter2mm
-
Noise Level＜45dB
-
Operating Temperature-20°C To 80°C
-
ApplicationHair Clipper/Automatic Door Clock/Car Electric Locks
-
Weight39g
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/ HCS Motor
-
CertificationISO9001/CE/RoHs/SGS
-
Model NumberFF-130SH
-
Document
-
Minimum Order Quantity3000PCS
-
Packaging DetailsCarton/Pallet
-
Delivery Time35-45Days
-
Payment TermsL/C,T/T
-
Supply Ability12000PCS/Day

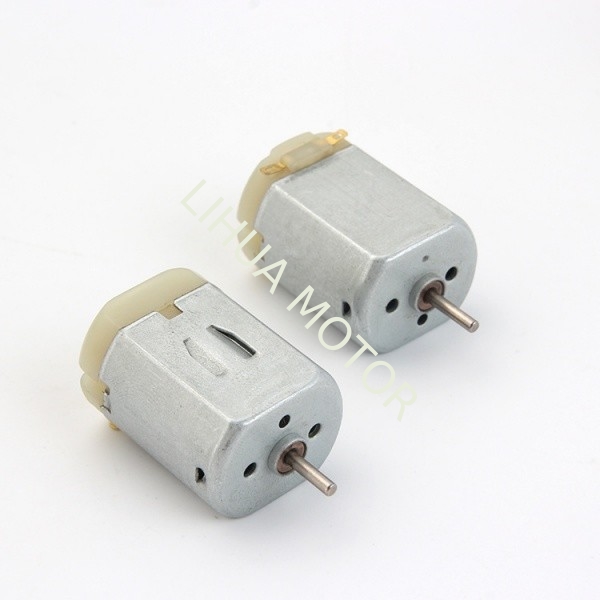

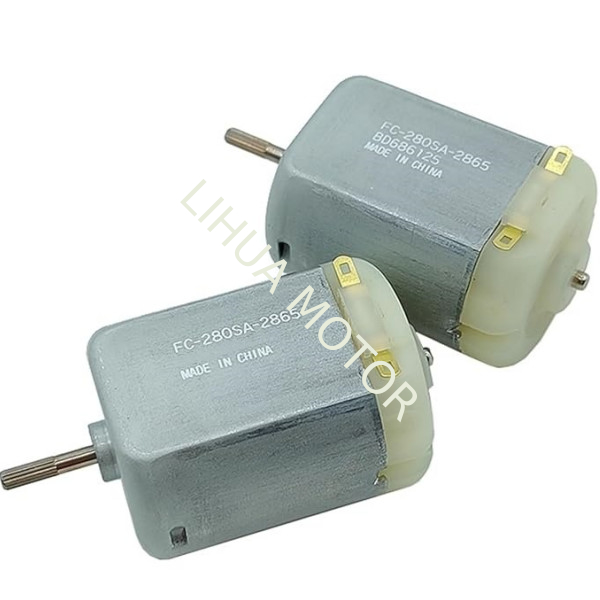

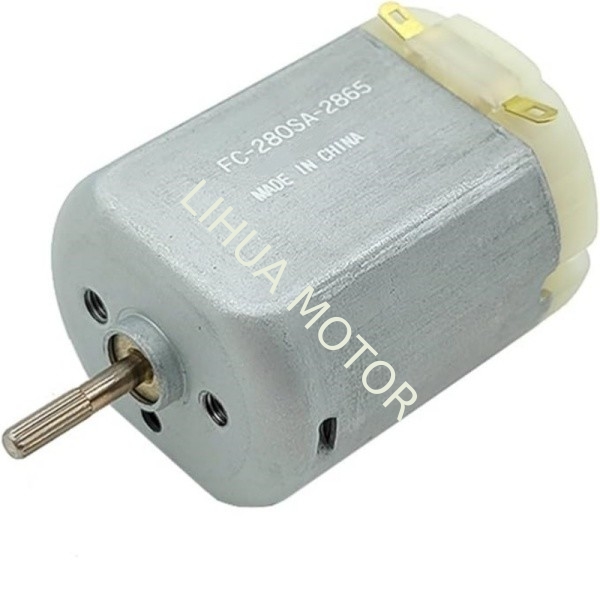

FC-280 DC Electric Motors 12V 18V 24mm Flat Carbon Brush Motor DC
FC-280 DC Electric Motors 12V 18V 24mm Flat Carbon Brushed Motor
Car door lock mechanisms frequently use FC-280 dc electric motors because of their great efficiency.
PMDC brush motors, the FC-280 DC electric motors have a speed range of 3000 RPM to 12500 RPM.The FC-280 motor operates steadily thanks to its exact aluminium housing structure.The voltage range of tiny motors can also be customised to include 3v, 6v, 280v, 12v, and 18v.Additionally, you can adjust the speed to your preference: 5000 RPM, 6000 RPM, 8000 RPM, or 11,000 RPM.
Retractable rearview mirrors and door lock actuators are two prominent applications for FC-280 DC electric motors.A 280 dc micro motor can be utilised in a variety of automobiles with different accessories.
|
Model Number: FC-280SA/FC-280SC/FC-280PT Voltage Range: DC 1.5V - 36V Shaft : Φ2.0mm(0.0787 inch), D shape, etc. Shaft length free customization Stall Torque: up to 320gf-cm Construction: Permanent Magnet Clockwise/counter-clockwise rotation (CW&CCW) Customizations: |
 |
FC-280SA Small Carbon Brushed Motor Model Types Table
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | m.Nm | R/min | A | W | g.cm | A | |||
| FC-280SA-11440 | 6-14V | 12V | 4500 | 0.19 | 1.99 | 3821 | 0.097 | 0.75 | 124 | 0.493 |
| FC-280SA-09550 | 20-26v | 24.0V | 5300 | 0.017 | 2.16 | 4329 | 0.083 | 0.62 | 129 | 0.400 |
| FC-280PC-22125 | 8-16V | 12.0V | 12500 | 0.09 | 4.76 | 11090 | 0.71 | 5.52 | 430 | 5.56 |
| FC-280SC-18180 | 8-16V | 12.0V | 9600 | 0.070 | 3.95 | 8270 | 0.43 | 3.42 | 291 | 2.70 |
| FC-280SC-20150 | 8-16V | 12.0V | 11800 | 0.081 | 4.14 | 10310 | 0.56 | 4.47 | 335 | 3.90 |
| FC-280SC-16220 | 8-16V | 12.0V | 7900 | 0.055 | 3.27 | 6780 | 0.33 | 2.32 | 234 | 2.00 |
| Customized product parameter are available upon your request | ||||||||||
NOTE:
1mNm= 1Ncm = 10.2gcm
DELIVERING:
To ensure your cargo reaches its destination optimally, we look forward to receiving your feedback. We will tailor the transportation solution based on your specific requirements.
|
Shipping Way |
Delivery Time |
|
|
DHL,UPS,FedEx |
5-7 Days |
|
|
Air |
3-4 Days |
|
|
Sea |
10-20 Days |
|
|
Train |
15-30 Days |
Q&A
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer who has specialised in small DC motors for over 20 years.
Q:Can this motor be used in wet or humid environments?
A: While the motor is designed for use in dry environments, it can be used in damp or humid environments with proper sealing and protection.
Q: Do you have certificates for the motors?
A: Yes, we have CE, IATF16949, ISO9001, ROHS, REACH, SGS, etc. If you have the other certificate requirement, we can apply it for you.
Q: Can the DC FC-280 brushed motor be used for continuous operation?
A: Yes, the motor is designed for continuous operation with proper ventilation and cooling.
Q: Does the DC FC-280 brushed motor come with a warranty?
A: The warranty for our motor is 12-24 months.
Q:Do you provide free samples?
A:Yes, we could offer few free samples for checking the performance but do not pay freight.
Our products are sold all over the world, you can rest assured.
