12 Volt DC Electric Motor RS-775 DC Motor High Torque High Speed Motor For Drill
-
Highlight
12 Volt DC Electric Motor
,RS-775 DC Motor
,High Torque High Speed Motor 12V
-
Motor TypeRS-775SM
-
Voltage12V / 24V Standard
-
ODM OptionVolt & Current & Speed & Torque & Shaft Length
-
Motor Shaft Diameter5mm
-
Motor Screw Holes DiameterM2*0.7
-
Motor Size66mm*42mm (L*Dia)
-
ApplicationsHigh-speed Drills / Model Aircraft / Power Tools /Small Mechanical Equipment
-
Weight350(Approx)
-
NameMini DC Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationReach/RoHs/IATF16949/ISO9001
-
Model NumberRS-775
-
Document
-
Minimum Order Quantity2000PCS
-
Packaging DetailsCarton
-
Delivery Time35-45Day
-
Payment TermsL/C,D/A,D/P,T/T
-
Supply Ability10000PCS/Day

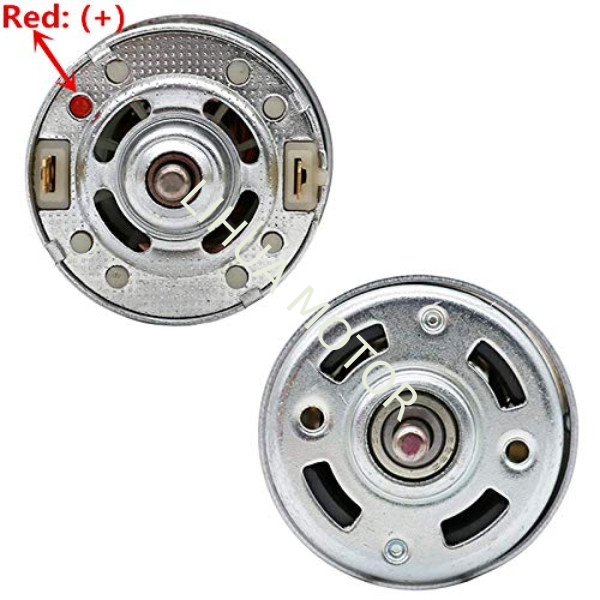

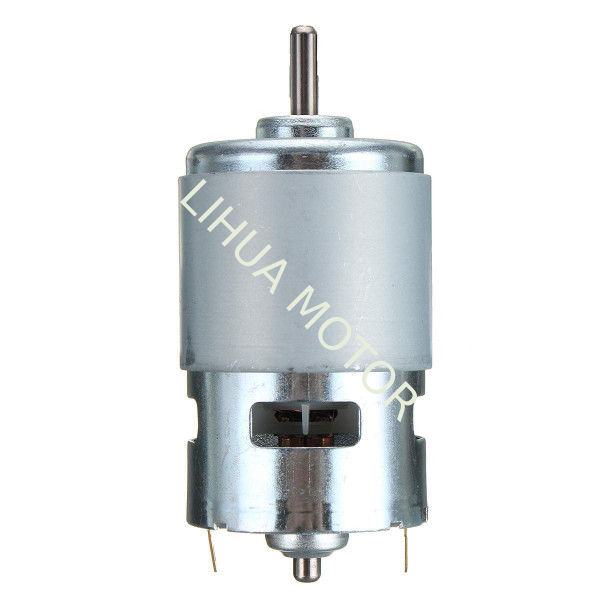

12 Volt DC Electric Motor RS-775 DC Motor High Torque High Speed Motor For Drill

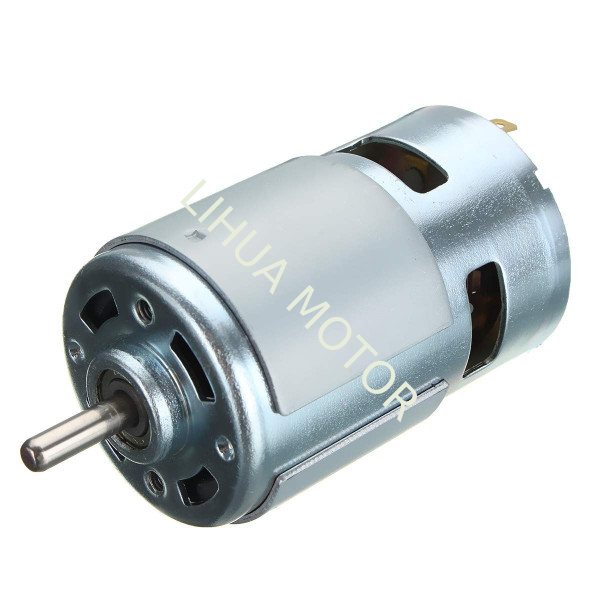

12 Volt DC Electric Motor RS-775 DC Motor High Torque High Speed Motor For Drill
Model Number: RS-775
Shell Stator Size : Φ42* L 66 mm(Φ 2.637 inch * 2.953 inch)
Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
Shaft length free customization
Rated Output Power: up to 80W
Rated Voltage: DC 6V - 24V
Rated Torque: up to 1.2 Kgf·cm(1.47 N·m)
Construction: Permanent Magnet
Commutation: Carbon brush
Former High Level: 4.5 mm
Diagonal Installation Pitch: 29 mm
Mounting Hole Size: M4
Mounting Holes: 2 Holes
Customized service: parameter, shaft type, wires and connectors
Clockwise/counter-clockwise rotation (CW&CCW)
RS 775 DC Motor Parameter And Dimension
|
Model |
Voltage |
No Load |
At Maximum Efficiency |
Stall |
|||||
|
Nominal |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
|
|
r/min |
A |
r/min |
A |
g-cm |
w |
g-cm |
A |
||
|
RS-775SH-8013 |
DC 12V |
22000 |
3 |
18760 |
15.75 |
1028 |
198 |
8540 |
110.3 |
|
RS-775SH-5520 |
DC 24V |
21000 |
1.7 |
18410 |
10.72 |
962 |
181.9 |
7200 |
68.1 |
|
RS-775SH-9008 |
DC 7.2V |
14600 |
3.2 |
12310 |
20.05 |
816 |
103.2 |
5190 |
108.7 |
|
RS-775SH-9009 |
DC 12V |
21000 |
2.8 |
18050 |
21.07 |
1046 |
193.9 |
8225 |
143.7 |
|
RS-775-1 |
DC 12V |
3000 |
0.22 |
2200 |
1.0 |
350 |
7.7 |
1400 |
3.5 |
|
RS-775-2 |
DC 12V |
4500 |
0.45 |
3300 |
2.0 |
500 |
16.5 |
2000 |
6.5 |
|
RS-775-3 |
DC 12V |
6000 |
0.9 |
4500 |
4.0 |
750 |
34 |
3000 |
13 |
|
RS-775-4 |
DC 24V |
3000 |
0.11 |
2200 |
0.5 |
350 |
7,7 |
1400 |
1.8 |
|
RS-775-5 |
DC 24V |
4500 |
0.23 |
3300 |
1.0 |
500 |
16,5 |
2000 |
3.3 |
|
RS-775-6 |
DC 24V |
6000 |
0.45 |
4500 |
2.0 |
750 |
34 |
3000 |
7 |
|
*Note:lt's only typical technical data for reference, special requirement can be customized. |
|||||||||
RS-775 Motor Application Analysis in Electric Drills and Garden Tools
The RS-775 motor is a common type of DC motor widely used in many power tools and small mechanical equipment due to its high speed and substantial torque. Below is an analysis of its typical applications in electric drills and home lawn mowers:
