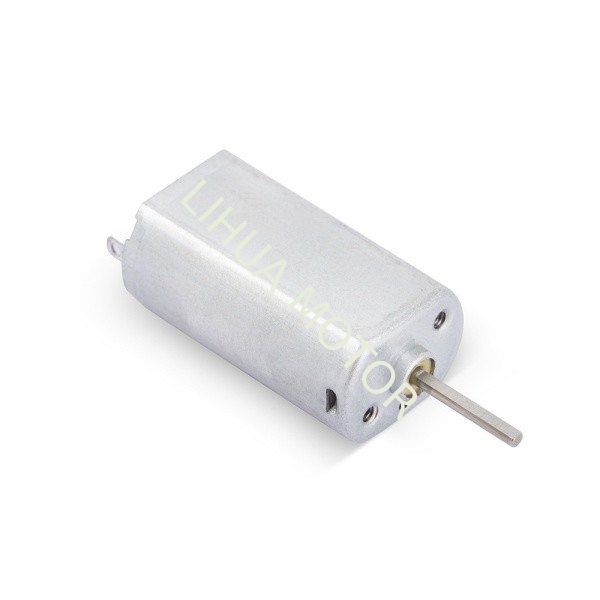

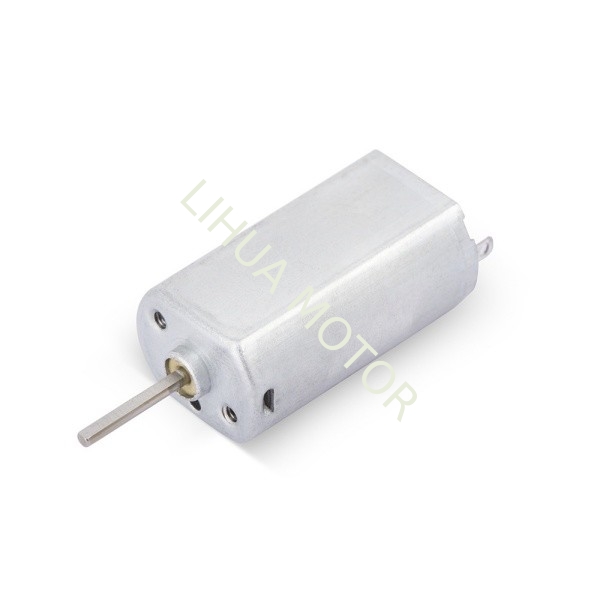

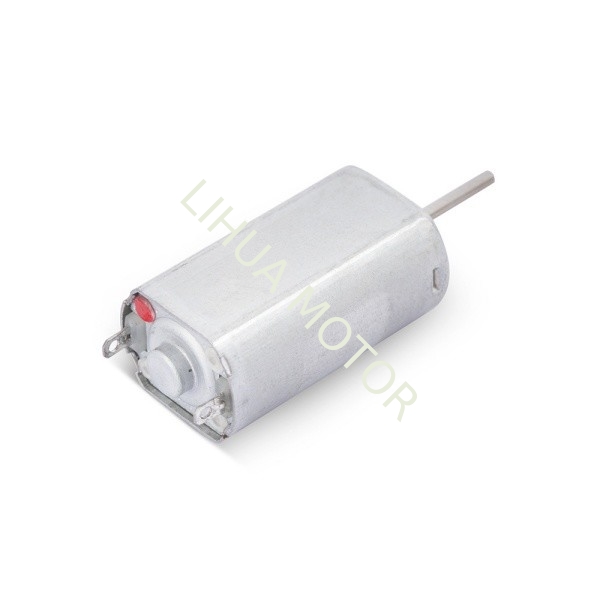

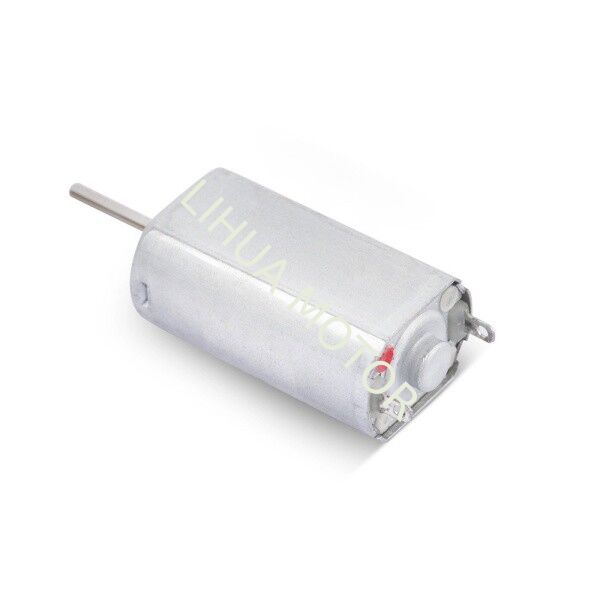

3V 12V 24V Small Motor FF-180SH Motor 6000rpm 12000rpm 15.4*20.4mm For Shaver Toothbrush
-
Highlight
24V Small Motor
,FF-180SH Motor 6000rpm
,12V Small Motor
-
Motor TypeFF-180SH
-
Standard Size15.4mm*20.4mm
-
Motor Body Length32.1mm
-
Stall TorqueUp To 120gf-cm
-
Voltage1.5V-36V
-
Efficiency85%
-
Shaft Type2mm Round /D Shaft
-
Shaft LengthL±0.5mm
-
Speed3000rpm-12000rpm
-
Shaft Diameter2mm
-
Noise Level＜45dB
-
Operating Temperature-20°C To 80°C
-
ApplicationElectric Shaver /DIY Toy Engine/ Air Condition Humidity Regular
-
Weight26g
-
NameSmall Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/ HCS Motor
-
CertificationISO9001/CE/RoHs/SGS
-
Model NumberFF-130SH
-
Minimum Order Quantity3000PCS
-
Packaging DetailsCarton/Pallet
-
Delivery Time35-45Days
-
Payment TermsL/C,T/T
-
Supply Ability12000PCS/Day
3V 12V 24V Small Motor FF-180SH Motor 6000rpm 12000rpm 15.4*20.4mm For Shaver Toothbrush
FF-180SH 3V 12V 24V 6000rpm 12000rpm 15.4*20.4mm For Shaver Toothbrush
Model Number: FF-180SH
Voltage Range: DC 1.5V - 36V
Motor Size: Maximum 15.4mm x 20.4mm
Shaft : Φ2.0mm(0.0787 inch), D shape, etc.
Shaft length free customization
Stall Torque: up to 120gf-cm
Construction: Permanent Magnet
Clockwise/counter-clockwise rotation (CW&CCW)
Customizations:
Shaft Length
Technical Parameters
Cables and Connectors
Eccentric Wheel Size and Material
FF-180SH Small Brushed Motor Model Types Table
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | m.Nm | R/min | A | W | g.cm | A | |||
| FF-180SH-2466 | 2-4v | 3.0v | 7600 | 0.106 | 1.7 | 6431 | 0.574 | 1.14 | 111 | 3.1 |
| FF-180SH-10400 | 20-26v | 24.0V | 10200 | 0.025 | 2.53 | 8557 | 0.139 | 2.23 | 168 | 0.768 |
| FF-180SH-15165 | 2-4V | 3.0V | 4600 | 0.118 | 1.46 | 3360 | 0.316 | 0.65 | 55 | 0.85 |
| FF-180SH-2852 | 1-3V | 2.4V | 8100 | 0.15 | 1.82 | 6850 | 0.82 | 1.31 | 120 | 4.5 |
| FF-180SH-14230 | 2.5-10V | 3.0V | 3600 | 0.037 | 0.74 | 2850 | 0.14 | 0.22 | 36 | 0.53 |
| FF-180SH-2657 | 1-3v | 2.4v | 7700 | 0.13 | 1.63 | 6500 | 0.7 | 1.11 | 107 | 3.8 |
| FF-180SH-4026 | 1.0~1.5v | 1.2 | 8,300 | 0.3 | 1.63 | 6990 | 1.6 | 1.20 | 106 | 8.55 |
NOTE:
1mNm= 1Ncm = 10.2gcm
Customized product parameter are available upon your request
DELIVERING:
To ensure your cargo reaches its destination optimally, we look forward to receiving your feedback. We will tailor the transportation solution based on your specific requirements.
|
Shipping Way |
Delivery Time |
|
|
DHL,UPS,FedEx |
5-7 Days |
|
|
Air |
3-4 Days |
|
|
Sea |
10-20 Days |
|
|
Train |
15-30 Days |
Q&A
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer who has specialised in small DC motors for over 20 years.
Q:Can this motor be used in wet or humid environments?
A: While the motor is designed for use in dry environments, it can be used in damp or humid environments with proper sealing and protection.
Q: Do you have certificates for the motors?
A: Yes, we have CE, IATF16949, ISO9001, ROHS, REACH, SGS, etc. If you have the other certificate requirement, we can apply it for you.
Q: Can the DC FF-180 brushed motor be used for continuous operation?
A: Yes, the motor is designed for continuous operation with proper ventilation and cooling.
Q: Does the DC FF-180 brushed motor come with a warranty?
A: The warranty for our motor is 12-24 months.
Q:Do you provide free samples?
A:Yes, we could offer few free samples for checking the performance but do not pay freight.
Our products are sold all over the world, you can rest assured.
