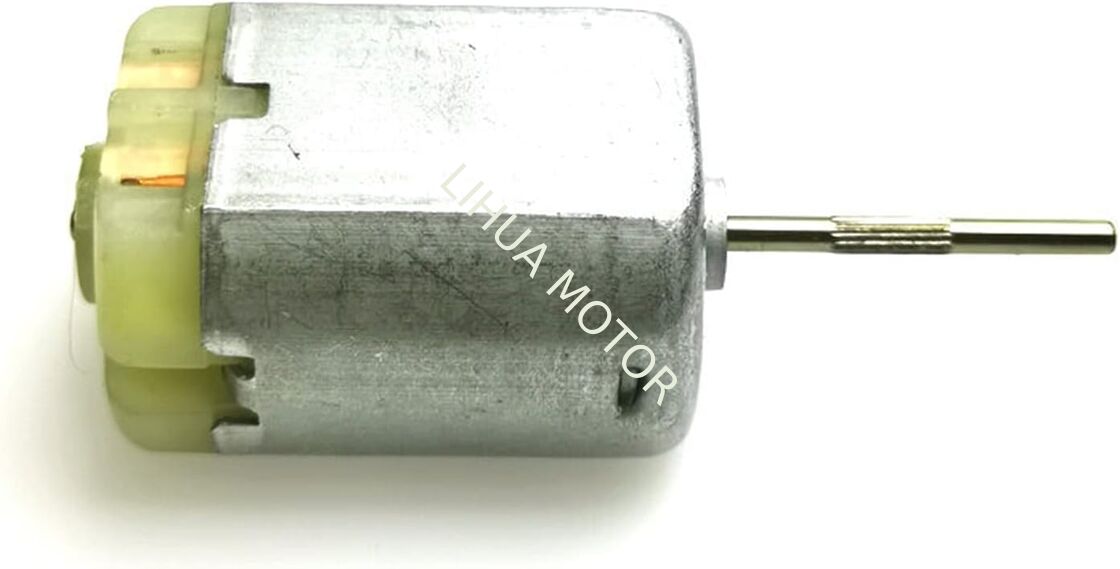

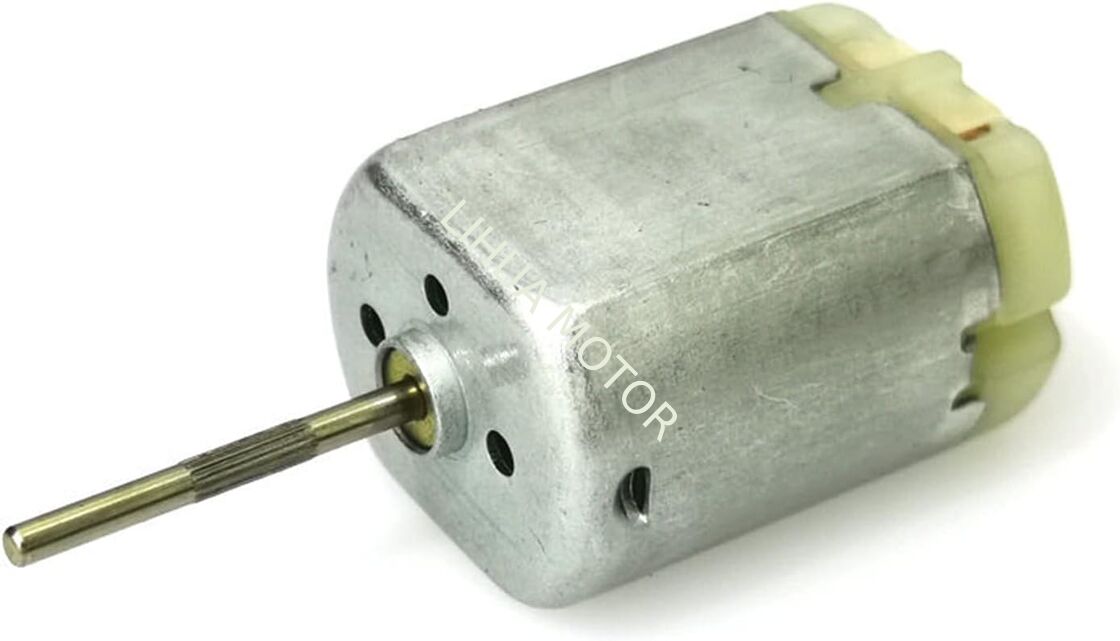

24mm Diameter Carbon Brush DC Motor FC-280 Series with High Torque and Medium Speed for Industrial Applications
-
Motor TypeFC-280
-
Standard Size18.4mm*24mm
-
Motor Body Length30.5
-
Stall Torque129 G.cm
-
Voltage1.5V-36V
-
Efficiency85%
-
Shaft Type2mm Round /D Shaft
-
Shaft LengthL±0.5mm
-
Speed3000rpm-12000rpm
-
Shaft Diameterφ2 Mm
-
Noise Level＜45dB
-
Operating Temperature-20°C To 80°C
-
ApplicationHair Clipper/Automatic Door Clock/Car Electric Locks
-
Weight39g
-
Body Diameterφ24 Mm
-
Body Length30.5 Mm
-
Operating Voltage6V-24V
-
No Load Speed4500-5300 RPM
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/ HCS Motor
-
CertificationISO9001/CE/RoHs/SGS
-
Model NumberFF-130SH
-
Document
-
Minimum Order Quantity3000PCS
-
Packaging DetailsCarton/Pallet
-
Delivery Time35-45Days
-
Payment TermsL/C,T/T
-
Supply Ability12000PCS/Day
24mm Diameter Carbon Brush DC Motor FC-280 Series with High Torque and Medium Speed for Industrial Applications
The FC-280 is a 24mm diameter carbon brush DC motor with an extended 30.5mm body length, designed for applications requiring medium speed and high torque. Operating at 6V-24V with standard configurations at 12V and 18V, this motor offers excellent energy efficiency with ultra-low no-load current (as low as 0.017A). Speed ranges from 4500 to 5300 RPM, providing smooth and reliable operation. The carbon brush construction ensures durability for continuous duty applications. Maximum efficiency output reaches 0.75W with stall torque up to 129 g.cm. Ideal for automation equipment, industrial machinery, and applications requiring sustained operation with minimal power consumption.
|
 |
| Parameter | Value |
|---|---|
| Body Diameter | φ24 mm |
| Body Length | 30.5 mm |
| Shaft Diameter | φ2 mm |
| Shaft Length | L±0.5 (customizable) |
| Mounting Hole Spacing | 11.5 mm |
| Mounting Hole Size | 2-φ2.3 mm |
| Body Height | 18.4 mm |
| Model | Operating Voltage Range | Nominal Voltage | No Load Speed (r/min) | No Load Current (A) | Max Efficiency Speed (r/min) | Max Efficiency Current (A) | Torque (mN.m) | Output Power (W) | Stall Torque (g.cm) | Stall Current (A) |
|---|---|---|---|---|---|---|---|---|---|---|
| FC-280S-11440 | 6-14V | 12V | 4500 | 0.19 | 3821 | 0.097 | 1.99 | 0.75 | 124 | 0.493 |
| FC-280S-09550 | 18-24V | 18V | 5300 | 0.017 | 4329 | 0.083 | 2.16 | 0.62 | 129 | 0.400 |
NOTE: 1mNm = 1Ncm = 10.2gcm
FC-280 Motor, 24mm DC Motor, Carbon Brush Motor, 12V Motor, 18V Motor, 24V Motor, 4500 RPM Motor, 5300 RPM Motor, Medium Speed Motor, High Torque Motor, Low Current Motor, Energy Efficient Motor, Industrial Motor, 24mm Diameter Motor, Long Body Motor, Custom Motor
Q1: What is the difference between FC and FK series?
A: FC series uses carbon brushes for continuous operation and durability. FK series uses precious metal brushes for low noise, minimal sparking, and sensitive electronic applications.
Q2: What is the minimum order quantity (MOQ)?
A: Standard MOQ is 500-1000 pieces depending on the model. Custom specifications may have different MOQ requirements. Please contact us for details.
Q3: Can I get samples before placing a bulk order?
A: Yes, samples are available for testing and evaluation. Sample orders typically require 5-10 pieces. Contact us for sample availability and pricing.
