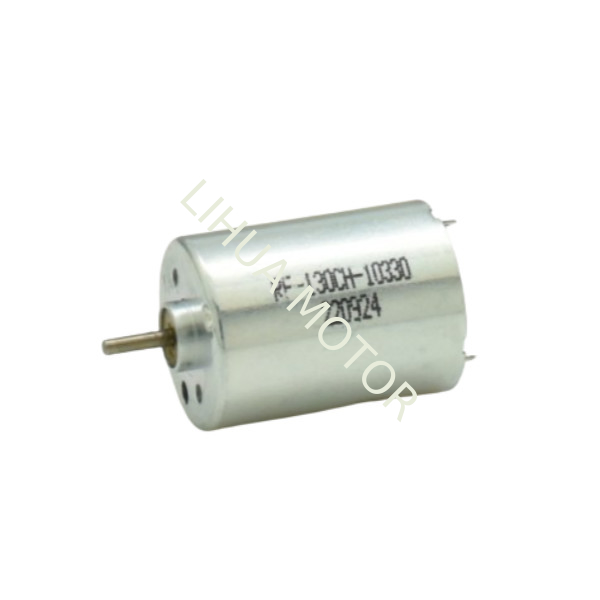

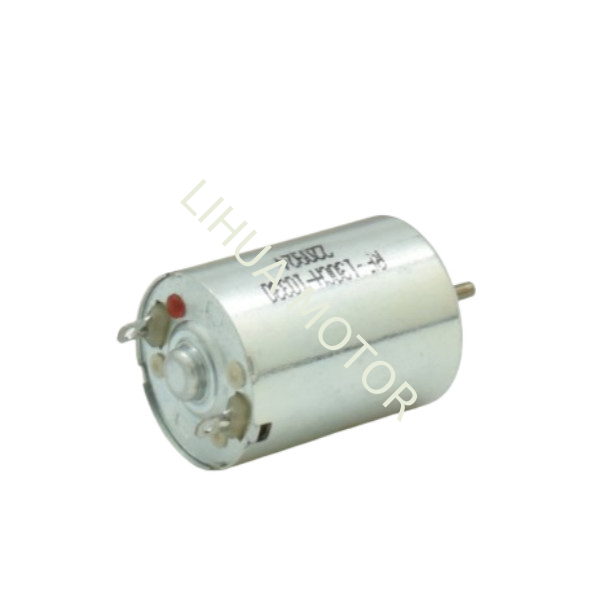

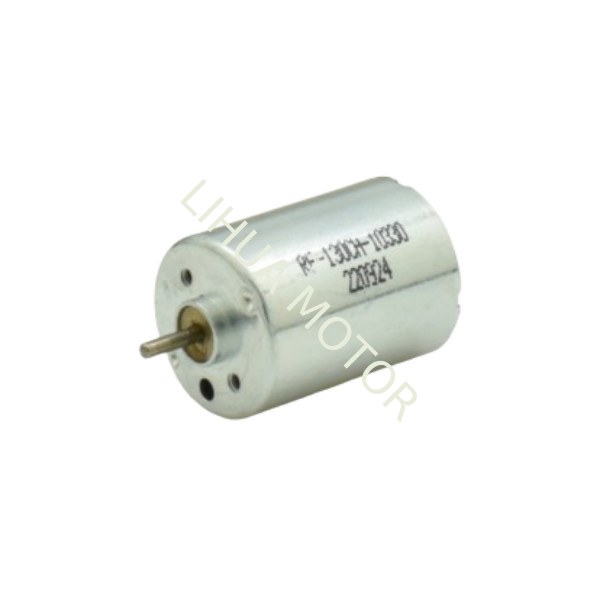

RF-130 3V-12V Brushed Motor DC 3000RPM-12000RPM Speed 17.7mm*22.8mm

RF-130 17.7mm*22.8mm 3V-12V Brushed Motor DC 3000RPM-12000RPM Speed RoHs

Model: RF-130CH-12250

Product Overview:
The RF-130 is a high-performance brushed DC motor with dimensions of 17.7mm*22.8mm, suitable for multiple voltage inputs (3V-12V) and a wide speed range (3000RPM-12000RPM). Utilizing permanent magnet technology, this motor is known for its high efficiency, low noise, and long lifespan. It is widely used in boats, cars, electric bicycles, home appliances, and more. As a classic model from Mabuchi, the RF-130CH-12250 has earned global customer trust for its exceptional performance and reliability.

Product Features:

• Wide Voltage Range: Supports 3V-12V input, adaptable to various applications.

• High-Speed Performance: Speed range of 3000RPM-12000RPM to meet different power needs.

• Compact Design: Small size (17.7mm*22.8mm) for easy integration into various devices.

• High Efficiency and Durability: Permanent magnet technology and premium materials ensure high efficiency and long lifespan.

• Multiple Certifications: Compliant with CCC, ROHS, CE, ISO9001, and IATF16949 standards, ensuring quality and safety.

Technical Parameters:

• Rated Voltage: DC 6V

• Suitable Voltage: DC 3V-6V

• No-Load Current: 0.14A (6V)

• Weight: 18g

• No-Load Speed:

  • 3V: 4050RPM

  • 6V: 8100RPM

• No-Load Current:

  • 3V: 27mA

  • 6V: 36mA

• Shaft Length: 3mm

• Shaft Diameter: 1.5mm

• Shaft Type: Straight

• Protection Feature: Explosion-proof

• Commutation: Brushed

• Construction: Permanent Magnet

• Type: Micro Motor

Application Fields:
The RF-130 motor is widely used in the following fields:

• Marine Equipment: Such as small boat pumps and rudder drives.

• Automotive Electronics: Such as wiper motors and window lifters.

• Electric Bicycles: Such as power-assist motors and battery management systems.

• Home Appliances: Such as fans, blenders, and power tools.

• Industrial Equipment: Such as small conveyors and automation devices.

Why Choose RF-130 From Lihua Motor:

• Brand Assurance: Lihua Motor /HCS motors is a globally renowned motor brand known for high quality and reliability.

• High Performance: Wide voltage range and high-speed performance to meet diverse needs.

• Multiple Certifications: Compliant with international standards, ensuring safety and environmental friendliness.

• Customization Services: Customized solutions available based on customer requirements.
