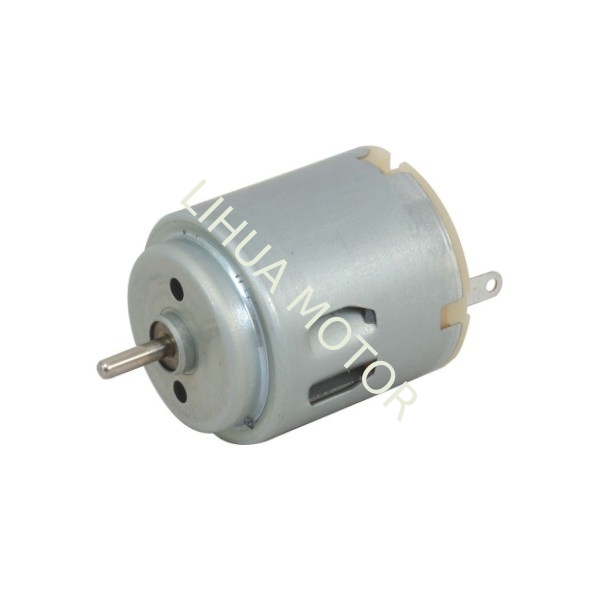

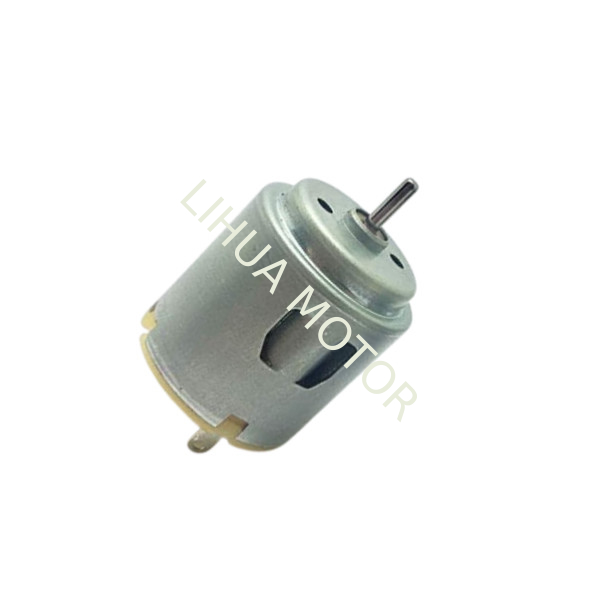

24cm*26.9cm 3V 6900RPM Round Shaft RC-260SA Carbon Brush Motor For Massager Clipper

Products - Brushed Motor DC

Highlight

3V Carbon Brush Motor
,
6900RPM Carbon Brush Motor
,
RC-260SA Carbon Brush Motor
Motor Type

RC-260SA-2670/RC-260RA-2670
Shaft Diameter

2mm
Motor Body Size

24mm*26.9mm
Voltage

3V
Shaft Type

Round/D Shaft
Operating Temperature

-20°C To 80°C
Noise Level

＜45 DB
Speed

6000RPM/1200RPM/Or As You Request
Applications

Hair Clipper/Massager/DIY Toys/Radio Control Model/Vibrator
Weight

28g
No-Load Speed

12300 Rpm
No-Load Current

0.4 Amps
Place of Origin

Dongguan,China
Brand Name

Lihua Motor/ HCS Motors
Certification

ISO9001/Reach/RoHs/SGS/CE
Model Number

RC-260
Document

22-RC-260-Model.pdf
Minimum Order Quantity

3000pcs
Packaging Details

Foam Inner /Carbon Outer
Delivery Time

30-45Days
Payment Terms

T/T
Supply Ability

12000pcs/Day

24cm*26.9cm 3V 6900RPM Round Shaft RC-260SA Carbon Brush Motor For Massager Clipper

Name: 24cm*26.9cm 3V 6900RPM Round Shaft RC-260SA Carbon Brush Motor For Massager Clipper
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: RC-260
Price: 9.35 USD
Availability: InStock

button button

Get Price Contact Now

RC-260SA Motor Product Description:

High Efficiency: The RC-260SA motor achieves a high speed of 12300 RPM/6900RPM at 3V, ensuring strong power and efficient performance during operation.
Compact Design: With dimensions of 24cm x 26.9cm, the motor is compact and suitable for installation in various small devices, especially in space-limited applications.
Round Shaft Design: The round shaft design offers flexible installation and compatibility with multiple transmission methods, making it ideal for DIY modifications or repairs.
Wide Applicability: This motor is not only suitable for hair clippers but also for DIY toys, model cars, small fans, and other electric devices, meeting diverse user needs.
Durability: Made from high-quality materials, the motor has a long service life and maintains stable operation at high speeds, reducing maintenance costs.

RC-260RA-2670 Features:

Nominal voltage: 4.5V DC
Voltage range: 3 - 6VDC
Current at maximum efficiency: 1.58A
Speed atmaximum efficiency: 15,000 RPM
Torque at maximum efficiency: 21.8 g-cm
Efficiency: 53.0%
Terminal type: 0.3mm solder tabs
Shaft diameter: 2mm
Shaft length: L±0.5mm (As you request)
Size: 24.2±0.2 diameter x 26.9mm depths

Accepted Custom RC-260 Motor Technical Parameters:

Technical Parameter	Value
Product Name	RC-260 Carbon Brush Motor
Shaft Type	Round/D Shaft
Shaft Length	L±0.5mm
Shaft Diameter	2mm
Direction of Rotation	CW/CCW
Size	24.2±0.2mm*26.9mm
Torque	1.43mNm/Custom
Current	2A/Custom
Speed	6000RPM/1200RPM/Or As You Request

Model	Voltage(V)		No Load		Rated Load				Stall
	Range	Rated	Speed	Current	Torque	Speed	Current	Output	Torque	Current
	Range	Rated	R/min	A	m.Nm	R/min	A	W	g.cm	A
RC-260RA-18130	4.5-6V	4.5V	9800	0.14	1.48	7750	0.53	1.2	72	2.0
RC-260RA-2670	3-4.5V	4.5V	18500	0.30	2.14	15290	1.43	3.41	125	6.8
RC-260SA-2670	3-4.5V	4.5V	13700	0.24	2.66	11520	1.27	3.2	170	6.7
RC-260SA-2295	3-6V	4.5V	10200	0.20	2.43	8300	0.87	2.11	133	3.8
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm

24cm*26.9cm 3V 6900RPM Round Shaft RC-260SA Carbon Brush Motor For Massager Clipper 0

FAQ:

Q: Why can't I find the same micro motor model name in your website?

A: The model name of the brushed motor DC product is custom according to different parameter,so if you want to get the same motor you can send your parameter to us,then we can provide the suitable motor for you.

Q: Please quota the price for RC-260SA motor ?

A: Price is base on different material and structure,so you need clarify specific motor requirements, including size, power, speed, voltage, and application scenarios,and annual need.So we can quota the price for you as soon as possible.
