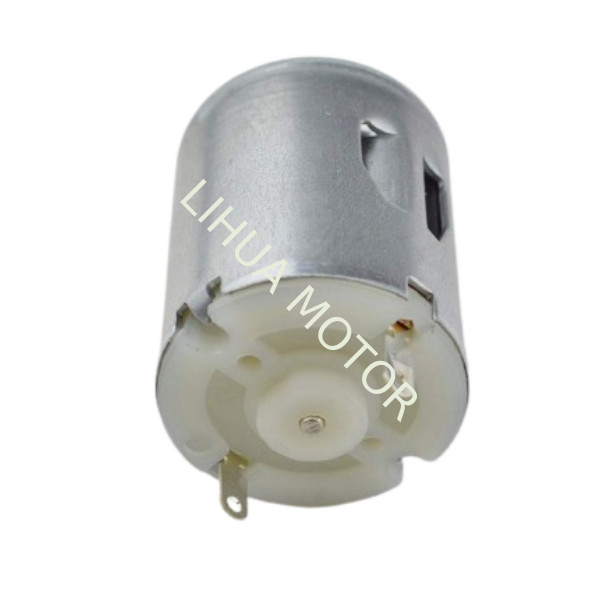

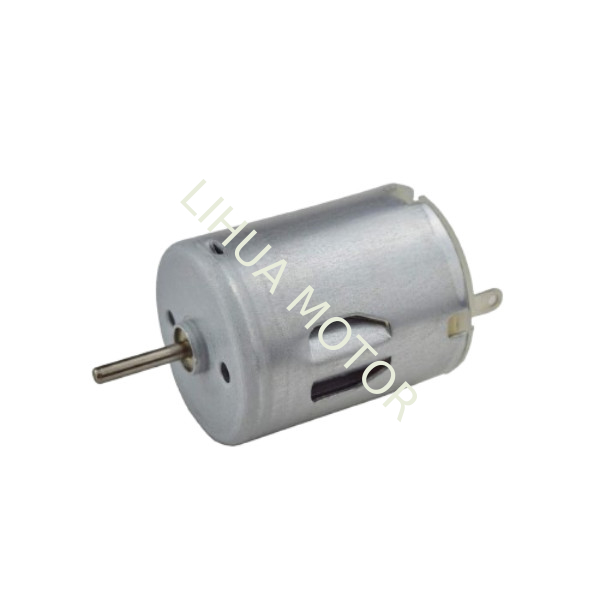

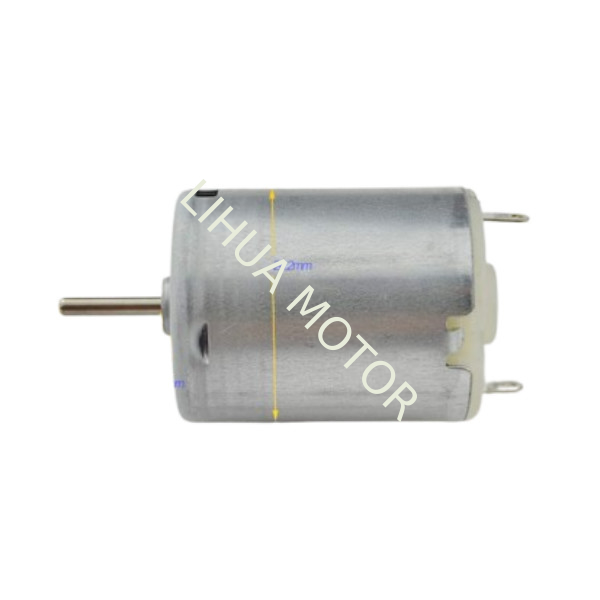

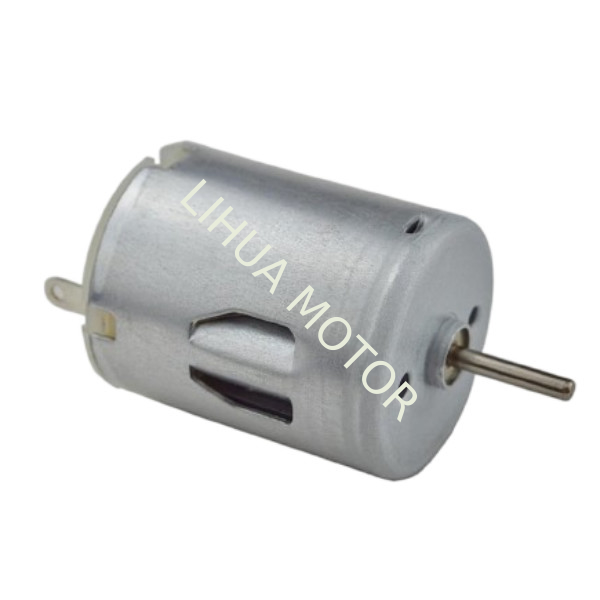

RC-280SA Motor 24cm*30.5cm 6V 12V DC Motor 4500RPM Round For RC Model Hair Clipper Massager

RC-280SA Motor 24cm*30.5cm 6V 12V DC Motor 4500RPM Round For RC Model Hair Clipper Massager

Products - Brushed Motor DC
  • Highlight

    12V DC Motor Round

    ,

    12V DC Motor 4500RPM

    ,

    RC-280SA Motor

  • Motor Type
    RC-280SA-11430
  • Shaft Diameter
    2mm
  • Motor Body Size
    24mm*30.5mm
  • Rated Voltage
    12V
  • Shaft Type
    Round/D Shaft/Knurling/Screw Thread
  • Operating Temperature
    -20°C To 80°C
  • Noise Level
    ＜45 DB
  • No-load Speed
    6000RPM/1200RPM/Or As You Request
  • Applications
    Hair Clipper/Massager/DIY Toys/Radio Control Model/Vibrator
  • Weight
    39g
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor/ HCS Motors
  • Certification
    ISO9001/Reach/RoHs/SGS/CE
  • Model Number
    RC-260
  • Minimum Order Quantity
    3000pcs
  • Packaging Details
    Foam Inner /Carbon Outer
  • Delivery Time
    30-45Days
  • Payment Terms
    T/T
  • Supply Ability
    12000pcs/Day

RC-280SA Motor 24cm*30.5cm 6V 12V DC Motor 4500RPM Round For RC Model Hair Clipper Massager

  • RC-280SA Motor 24cm*30.5cm 6V 12V DC Motor 4500RPM Round For RC Model Hair Clipper Massager
  • RC-280SA Motor 24cm*30.5cm 6V 12V DC Motor 4500RPM Round For RC Model Hair Clipper Massager
  • RC-280SA Motor 24cm*30.5cm 6V 12V DC Motor 4500RPM Round For RC Model Hair Clipper Massager
  • RC-280SA Motor 24cm*30.5cm 6V 12V DC Motor 4500RPM Round For RC Model Hair Clipper Massager
Get Price Contact Now





RC-280SA 24cm*30.5cm 6V 12V 4500RPM Round For RC Model Hair Clipper Massager

RC-280SA Motor Technical Parameter

  • *RC-280SA DC Motor is operating on DC4.5-12V.
  •  Typical application:home appliances,toys and models, such as hair clipper,massager, vibratior, radio control model.
  • *Type: RC-280SA
  •  Size: 24.2*24.2*30.5mm (0.95"*0.95"*1.20")
  •  Shaft Diameter: 2.0mm(0.08")
  •  Shaft Length: 10.6mm (0.41")
  •  Mounting Hole: Φ2.3mm
  • Working Voltage: DC 3-9V ；
  • NO LOAD Voltage: 3V DC ；Current: 0.6A ； Speed: 5500r/min
  • NO LOAD: Voltage: 6V DC ； Current: 0.9A ； Speed: 11200r/min
  • NO LOAD: Voltage: 9V DC ； Current: 2.4A ； Speed: 16000r/min



  • AT MAXIMUM EFFICIENCY: Voltage: 9V DC； Torque: ≤41.3g.cm； Output: 4W；



Accepted Custom RC-280 Motor Technical Parameters:

Technical Parameter Value
Product Name RC-280 Carbon Brush Motor
Rated Volt 12V
Shaft Type Round/D Shaft/knurling, screw thread
Shaft Length L±0.5mm
Shaft Diameter 2mm
Direction of Rotation CW/CCW
Size 24.2±0.2mm*30.5mm
Torque(At maximium efficiency) 2.178mNm/Custom
Current(At maximium efficiency) 0.106AMPS/Custom
Speed 6000RPM/1200RPM/Or As You Request






RC-280 24 mm Micro Brush DC Electric Motor Data Table


Model Voltage No Load RATED LOAD Stall
Operating range Rated Speed Current Speed Current Torque Output Efficiency Torque Current
VDC RPM A RPM A mN.m gf.cm W % mN.m gf.cm A
RC-280SA-2865 4.9 - 9.0 6 14000 0.28 11910 1.6 4.46 45.5 5.56 58.0 29.9 305 9.1
RC-280SA-20120 4.5 - 12.0 9 11300 0.14 9540 0.76 4.06 41.3 4.04 59.1 26 265 4.1
RC-280SA-2485 4.5 - 9.6 6 10800 0.18 9130 0.99 3.71 37.8 3.54 59.6 24 245 5.4
RE-280SA-2295 3.0 - 6.0 6 9600 0.14 8150 0.78 3.27 33.3 2.79 59.5 21.6 220 4.4
RE-280SA-2865 1.5 - 4.5 3 7100 0.16 6000 0.88 2.58 26.3 1.62 61.36 12.7 129 4.7
RE-280RA-2865 1.5 – 3.0 3 9200 0.16 7770 0.87 1.98 20.2 1.61 61.7 12.65 129 4.7
RC-280SA-2769 3.0-6.0 6 14000 0.236 11948 1.374 4.31 44 5.40 65.5 29.40 299.9 8

Customized product parameter are available upon your request

Note:1mNm= 1Ncm = 10.2gcm
