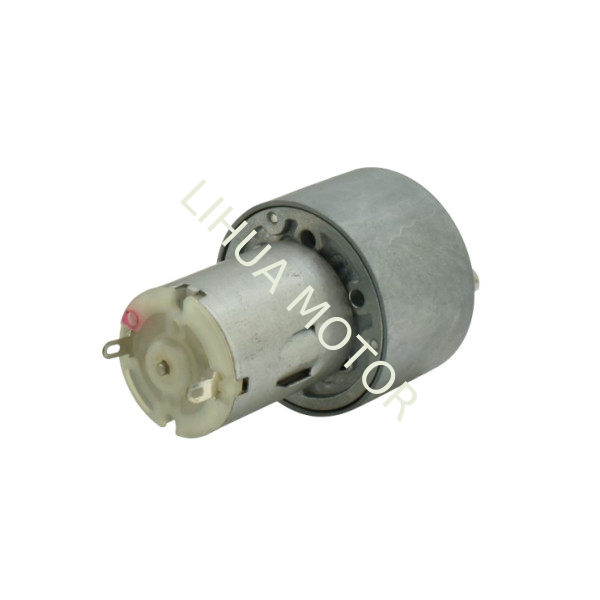

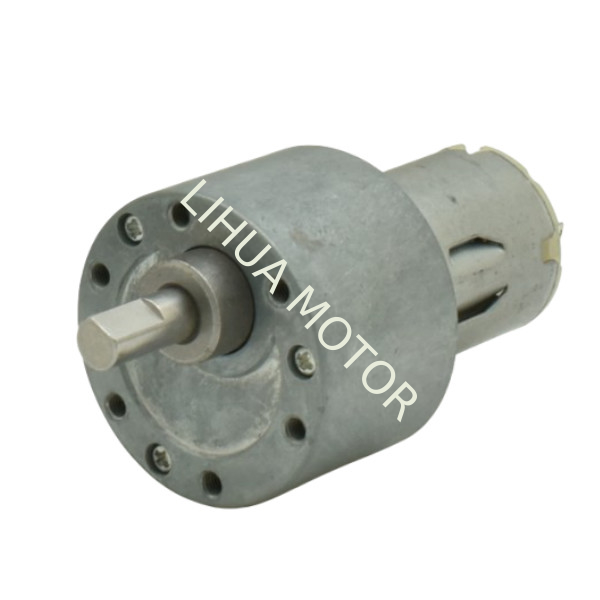

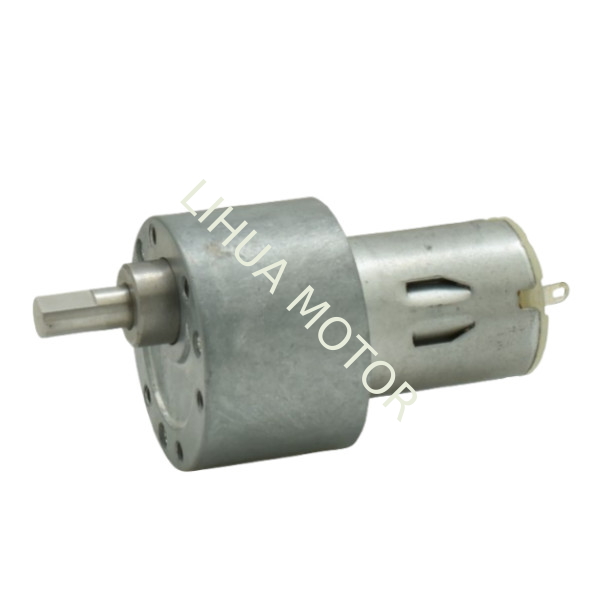

37mm 4.5V 6V 100 Rpm DC Motor 13mm D Shaft Full Metal Gear Motor For Small Machinery
-
Highlight
6v 100 rpm dc motor
,D Shaft Gear Motor
,Full Metal Gear Motor
-
ModelGB37-280
-
Voltage Range3V-24V
-
Motor Body Size24.4mm*30mm(W*L)
-
Motor CategoryGeared Motor
-
No-load Speed15rpm-120rpm
-
Stall Torque7.85Kgf.cm-10Kgf.cm
-
Gear Box Size37mm*24 (Length Can Be Custom)
-
Rated Voltage4.5VDC
-
Rated Current0.18A
-
Rotations Per Minute (RPM)103
-
Shaft Diameter5.35mm (Approx.)
-
Shaft Length13 Mm (Approx.)
-
Custom ServiceODM/OEM Accepted
-
Weight160g
-
Place of OriginGongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationISO9001,CE,RoHs,Reach,SGS
-
Model NumberGB37-280 /GB37-280/37GB280
-
Document
-
Minimum Order Quantity1000pcs
-
Packaging DetailsFoam Box
-
Delivery Time40-45days
-
Payment TermsL/C,T/T,D/P,D/A
-
Supply Ability30000pcs/day
37mm 4.5V 6V 100 Rpm DC Motor 13mm D Shaft Full Metal Gear Motor For Small Machinery
37mm 4.5V 6V 100 Rpm 13mm D Shaft Full Metal Gear Motor For Small Machinery CE
Model : GB37-280 /GB25Y280 micro metal gearmotor
Gearbox: 37mm Dia metal spur gear reducer
RC280 Motor Size:24mm*30mm
Shaft : Φ6mm D-cut 0.5mm, M5.35, custom
Gear Box Size:37mm*24 mm
Shaft size : Approx. 5.35 x 13 mm (Dia.*L)
Nominal Voltage : DC 3V 6V 12V
Operating Voltage:3V-9V 12V-24V 18V-26V
Revolving speed:Custom as your need
Mouting Screw Size:3mm
Shaft Step:6mm
Shaft Length:19±0.5mm
Weight:160g
GB37-280 37mm Gear Reduction Motor Features and Custom Service
| Key Feature | Custom Items |
| Big Large Torque | Output Shaft |
| Higher Efficiency | Lead Wire |
| Out-rotor Structure | Connector |
| Lower Noise | Speed |
| Long Life | Mounting Holes |
|
180 Gear Motor Ratio Options:29,31,56,73,78,107,140,182,268,349,456,488
|
|
3V–24V Mini 37mm Gearbox 280 Motor Parameter List & Dimensions
Model: GA25-370 6V 12V DC Gear Motor Paramter List
|
Model |
Volt |
No-load |
At Maximum Efficiency |
Stall |
||||
|
|
Speed |
Current |
Speed |
Current |
Torque |
Torque |
||
|
r/min |
A |
r/min |
A |
N.m |
Kgf.cm |
A |
||
|
GB37Y280-56 |
4.5V |
103 |
0.18 |
77 |
0.8 |
0.19 |
7.1 |
0.7 |
|
*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may lead to damage to the internal gears. All reduced no-load speeds have a tolerance of ±15%. |
||||||||
Frequently Asked Questions (FAQs):
1. What types of motors do you offer?
At Lihua Motor, we specialize in manufacturing DC motors and gear motors with diameters ranging from 6mm to 42mm. Our expertise extends to automotive motors, vibration motors, and brushless motors, ensuring a wide range of solutions for diverse applications.
2. What is the lead time for samples or mass production?
For samples, the typical lead time is 10-15 days. For mass production, DC motors take approximately 35-40 days, while gear motors require 45-60 days to ensure top-quality manufacturing.
3. Can you provide a quotation for a specific motor?
Yes, we offer customized solutions based on your unique requirements. To receive a quotation, kindly share your detailed specifications and annual quantity. We will promptly provide a tailored quote.
4. Do you supply motor accessories such as encoders, PCBs, connectors, or soldered wires?
While our primary focus is on motor production, we can arrange for accessories if your annual order volume meets a certain threshold. Our engineering team will assist in sourcing the necessary components to meet your needs.
5. Are your motors certified with UL, CB Tüv, and CE standards?
Yes, all our motors comply with UL, CB Tüv, and CE certifications. Additionally, our products adhere to REACH and ROHS regulations. We can provide detailed motor exploration drawings and BOM (Bill of Materials) to support your product certification process. Furthermore, we offer motors with built-in filters to meet your EMC directive requirements, ensuring seamless compliance.
Our products are sold all over the world, you can rest assured.
