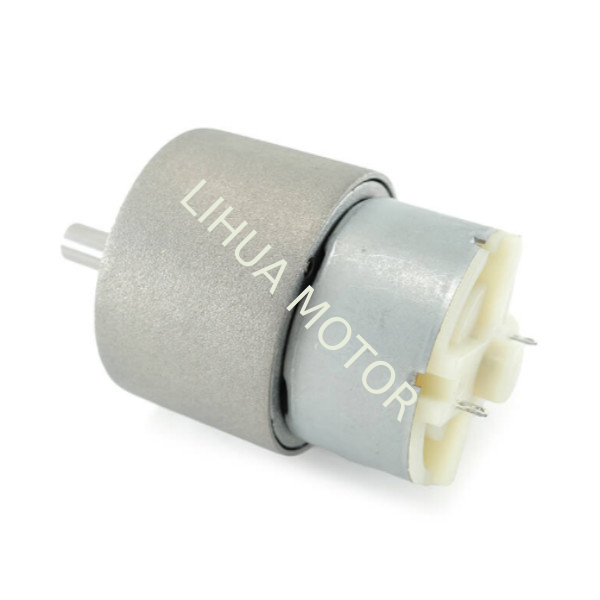

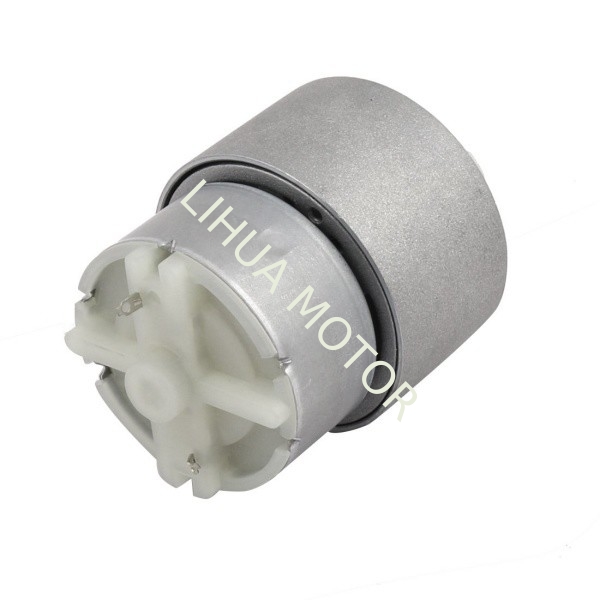

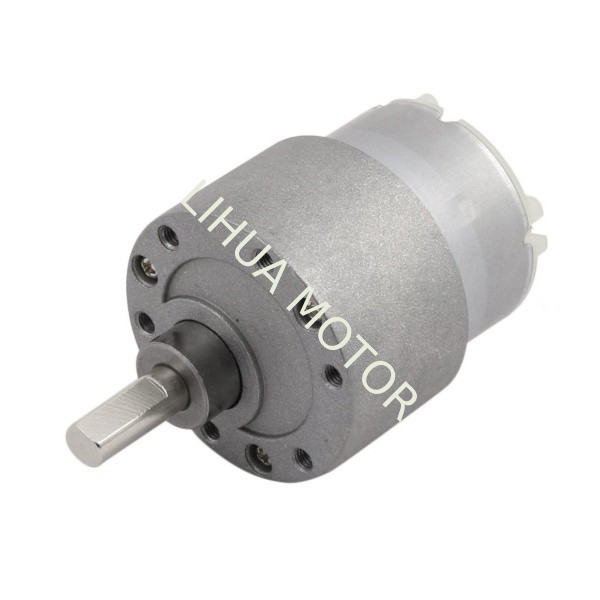

37mm 500 Rpm 12V 500 DC Motor With Gearbox Reversible Adjustable Speed Low Noise

37mm 500 Rpm 12V 500 DC Motor With Gearbox Reversible Adjustable Speed Low Noise

Products - Motor Gearbox DC
  • Highlight

    500 DC Motor With Gearbox

    ,

    12V DC Motor With Gearbox

    ,

    500 rpm 12v dc motor with gearbox

  • Motor Type
    GB37Y500/GB37-500
  • Ratio
    10:1, 30:1, 50:1, 90:1, 150:1, 260:1, 450:1, 650:1, 810:1
  • Rated Volt
    3V 6V 12V 24V
  • No-load Speed
    1rpm-360rpm Can Be Choose
  • No-load Current
    ≤0.05A
  • Stall Torque
    1kgf.m-28kgf.m
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor/HCS Motors
  • Certification
    CE/RoHs /Reach/IATF16949/ISO9001
  • Model Number
    GB37Y500/GB37-500
  • Document
    GB37Y500 37mm Gear motor.pdf
  • Minimum Order Quantity
    1000Pcs
  • Packaging Details
    Foam Carton
  • Delivery Time
    35-45Days
  • Payment Terms
    L/C,D/P,T/T,Western Union,D/A
  • Supply Ability
    10000PCS/Day

37mm 500 Rpm 12V 500 DC Motor With Gearbox Reversible Adjustable Speed Low Noise

  • 37mm 500 Rpm 12V 500 DC Motor With Gearbox Reversible Adjustable Speed Low Noise
  • 37mm 500 Rpm 12V 500 DC Motor With Gearbox Reversible Adjustable Speed Low Noise
  • 37mm 500 Rpm 12V 500 DC Motor With Gearbox Reversible Adjustable Speed Low Noise
Get Price Contact Now

37mm 500 Rpm 12V 500 DC motor With Gearbox Reversible Adjustable Speed Low Noise

High-Performance DC Geared Motor Specifications

Upgrade your projects with our premium 37mm Metal Gearbox combined with a high-performance 500 Motor. This powerful duo is crafted to deliver exceptional efficiency, durability, and adaptability, making it an ideal choice for both hobbyists and professionals. Whether you're developing robotics, automation systems, or other high-demand applications, this motor-gearbox combination is built to deliver outstanding results.

Key Features:

  • Operating Voltage: 6V DC to 12V DC (Customizable up to 24V DC upon request).

  • Weight: Approximately 120g (varies with the selected reduction ratio).

  • 500 Motor Size:32mm*19.5mm(Dia*L)
  • 500 Motor Type:RF-500TB/RK-500TB
  • Gearbox Diameter:37mm
  • Gearbox Step Height:6mm
  • Gearbox Diameter:12mm
  • Mounting Screw Holes Size:3mm



37mm 500 Rpm 12V DC motor With Gearbox Parameter List



Model
　
　

Volt

No-load

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GB37Y500-10

3.0

275

0.04

220

0.18

0.09

0.22

0.56

0.34

GB37Y500-30

3.0

90

0.04

75

0.18

0.26

0.2

1.5

0.34

GB37Y500-90

3.0

30

0.04

25

0.18

0.71

0.18

4.1

0.34

GB37Y500-210

3.0

13

0.05

10

0.19

1.4

0.15

8.1

0.34

GB37Y500-506

3.0

5

0.05

4

0.19

3.0

0.14

18

0.34

GB37Y500-810

3.0

3

0.05

2.5

0.19

4.8

0.14

28

0.34

GB37Y500-2430

3.0

1

0.05

0.8

0.19

20

0.14

/

0.34

GB37Y500-10

6.0

375

0.04

300

0.15

0.11

0.35

0.68

0.65

GB37Y500-30

6.0

125

0.04

100

0.15

0.31

0.31

1.8

0.65

GB37Y500-90

6.0

41

0.04

33

0.15

0.83

0.28

5.0

0.65

GB37Y500-210

6.0

17

0.05

14

0.15

1.6

0.24

9.7

021.65

GB37Y500-506

6.0

7

0.05

6

0.15

3.5

0.22

21

0.65

GB37Y500-810

6.0

4.5

0.05

3.5

0.15

5.7

0.22

34

0.65

GB37Y500-2430

6.0

1.5

0.05

1.2

0.15

25

0.22

/

0.65

GB37Y500-10

12.0

360

0.02

300

0.06

0.08

0.24

0.65

0.3

GB37Y500-30

12.0

120

0.02

100

0.06

0.2

0.21

1.7

0.3

GB37Y500-90

12.0

40

0.02

33

0.06

0.6

0.19

4.7

0.3

GB37Y500-210

12.0

17

0.03

14

0.07

1.1

0.16

9.2

0.3

GB37Y500-506

12.0

7

0.03

6

0.07

2.5

0.15

20

0.3

GB37Y500-810

12.0

4.5

0.03

3.5

0.07

4.0

0.15

32

0.3

GB37Y500-2430

12.0

1.4

0.03

1.1

0.07

24

0.15

/

0.3

GB37Y500-10

24.0

240

0.02

200

0.03

0.08

0.17

0.56

0.1

GB37Y500-30

24.0

80

0.02

65

0.03

0.2

0.15

1.5

0.1

GB37Y500-90

24.0

26

0.02

22

0.03

0.6

0.14

4.1

0.1

GB37Y500-210

24.0

11

0.02

9.5

0.03

1.1

0.12

8.1

0.1

GB37Y500-506

24.0

4.5

0.02

4

0.03

2.5

0.11

17

0.1

GB37Y500-810

24.0

3

0.02

2.5

0.03

4.0

0.11

28

0.1

GB37Y500-2430

24.0

1

0.02

0.8

0.03

24

0.11

/

0.1



*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.



37mm 500 Rpm 12V DC 500Motor With Gearbox Dimensions



37mm 500 Rpm 12V 500 DC Motor With Gearbox Reversible Adjustable Speed Low Noise 0

Ratio

6.25-10

18.8-30

43.8-90

102-270

306-976

1179-2928

Gearbox Length Option(L)

19mm

21.5mm

24mm

26.5mm

29mm

31.5mm



37mm 500 Rpm 12V DC 500Motor With Gearbox Key Features

  • Robust Build Quality: The 37mm gearbox is constructed from premium-grade metal, ensuring exceptional durability and resistance to wear, even in demanding environments.

  • Exceptional Torque Performance: Powered by the 500 motor, this combination delivers high torque output, making it perfect for heavy-duty applications and tasks requiring substantial power.

  • Precision-Crafted Design: Featuring meticulously machined gears, this setup ensures smooth, efficient operation by reducing friction and optimizing performance.

  • Wide Application Range: Versatile enough to be used in robotics, automation systems, remote-controlled vehicles, and various other projects.

  • Seamless Integration: Designed for easy installation, this gearbox and motor combo can be effortlessly incorporated into diverse systems and setups, saving time and effort.
