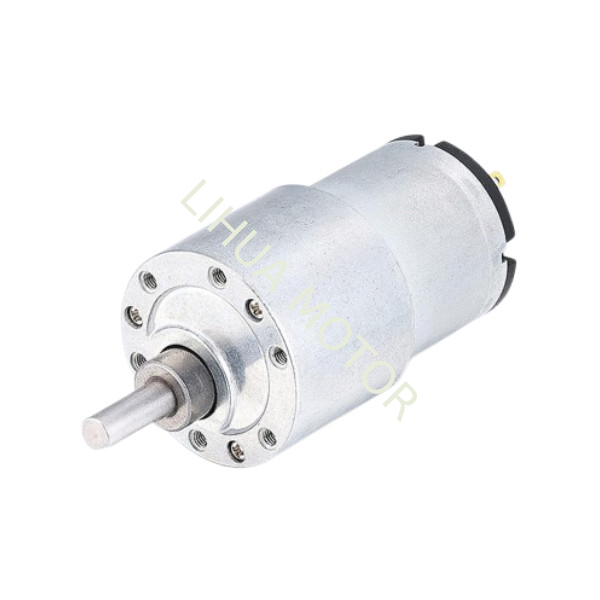

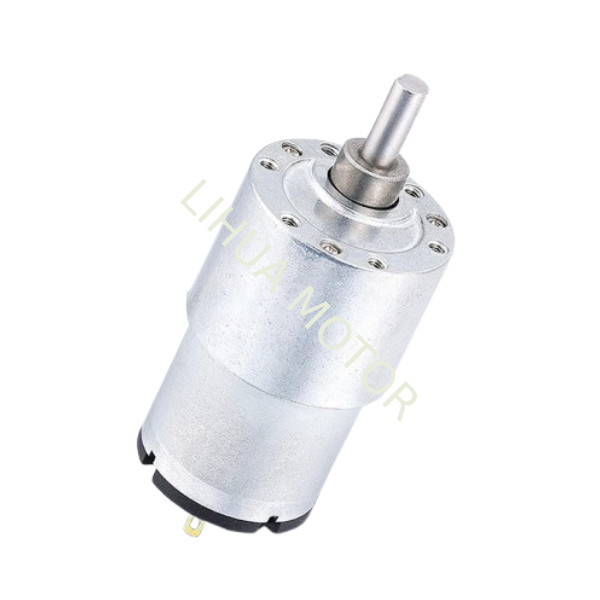

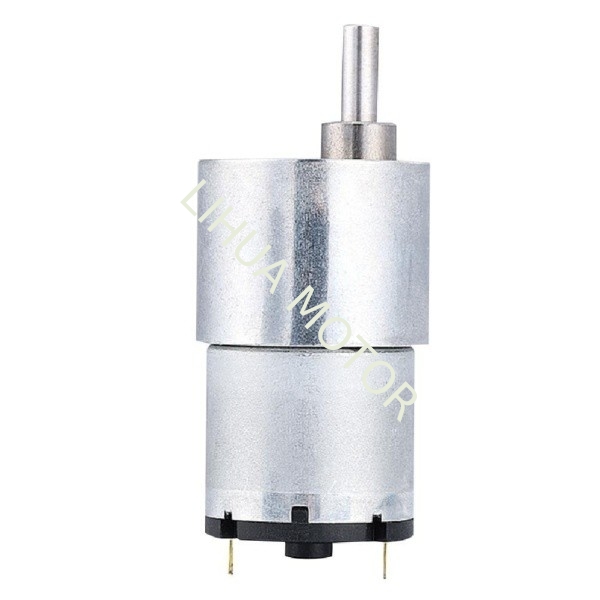

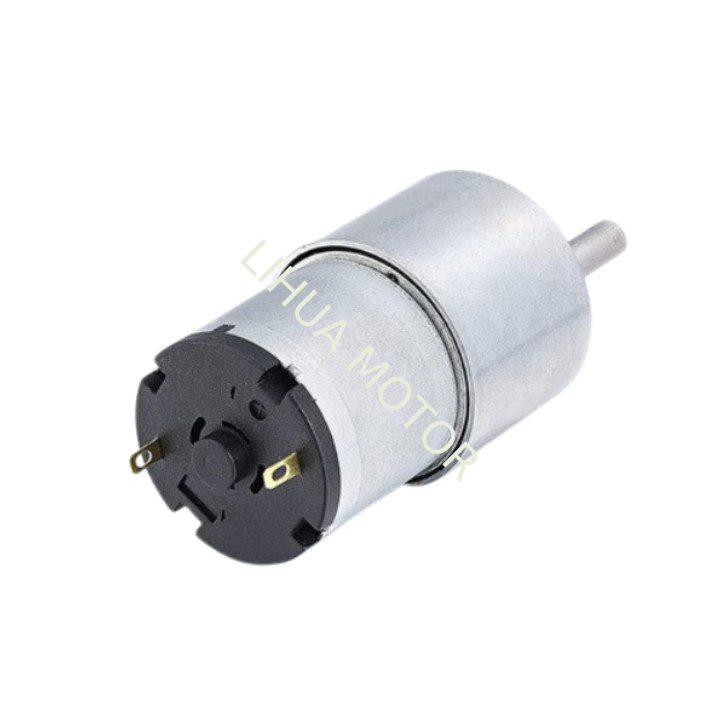

37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor

Products - Motor Gearbox DC

Highlight

37mm High Torque Gearbox Motor
,
12V High Torque Gearbox Motor
,
490RPM High Torque Micro Motor
Motor Type

GB37Y528/GB37-528
Ratio

10:1, 30:1, 50:1, 90:1, 150:1, 260:1, 450:1, 650:1, 810:1
Rated Volt

6V 12V 24V
No-load Speed

1rpm-450rpm Can Be Choose
No-load Current

≤0.05A
Stall Torque

1kgf.m-30kgf.m
Place of Origin

Dongguan,China
Brand Name

Lihua Motor/HCS Motors
Certification

CE/RoHs /Reach/IATF16949/ISO9001
Model Number

GB37Y528/GB37-528
Document

JGB37 528 Gear Motor Model.pdf
Minimum Order Quantity

1000Pcs
Packaging Details

Foam Carton
Delivery Time

35-45Days
Payment Terms

L/C,D/P,T/T,Western Union,D/A
Supply Ability

10000PCS/Day

37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor

Name: 37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: GB37Y528/GB37-528
Price: 9.35 USD
Availability: InStock

button button

Get Price Contact Now

37mm 12V Motor High Torque Gearbox GM37 528 DC 50RPM To 490RPM Micro Motor

Strong high-Torque Gear Motor Data Sheet Torque:Compared to a typical motor of the same size, the torque production is greatly increased by the gear reduction system, enabling it to drive bigger loads.

Speed Control: This motor's reduction gearbox allows it to produce lower output speeds while preserving or boosting torque, which is crucial for precise motions in automation systems, robotics, and other fields.

Durability: A motor with high-quality construction is often made to last, with sturdy casing to protect the internal components and wear-resistant gears.

Key Features:

Operating Voltage: 6V DC to 12V DC (Customizable up to 24 DC upon request).
Weight: Approximately 180g (varies with the selected reduction ratio).
528 Motor Size:33mm*30mm(Dia*L)
528Motor Type:RF-528/RK-528
Gearbox Diameter:37mm
Gearbox Step Height:6mm
Shaft Gearbox Diameter:12mm
Mounting Screw Holes Size:3mm
Distance Between contacter Ends :24.8mm

37mm 500 Rpm 12V DC motor With Gearbox Parameter List

Ratio	Gearbox	No Load		Rated Load			Stall
i : 1	Length	Current	Speed	Current	Speed	Torque	Current	Torque
6.3:1	19.0mm	≤0.2A	1,530rpm	≤2.0A	1,030rpm	0.6kg.cm	≤6.0A	1.6kg.cm
10:1	19.0mm	≤0.2A	960rpm	≤2.0A	650rpm	1.0kg.cm	≤6.0A	2.7kg.cm
18.8:1	21.5mm	≤0.2A	510rpm	≤2.0A	346rpm	1.8kg.cm	≤6.0A	4.8kg.cm
30:1	22.0mm	≤0.2A	320rpm	≤2.0A	215rpm	3.0kg.cm	≤6.0A	7.5kg.cm
50:1	24.0mm	≤0.2A	192rpm	≤2.0A	130rpm	4.8kg.cm	≤6.0A	13.0kg.cm
90:1	24.0mm	≤0.2A	107rpm	≤2.0A	72rpm	8.5kg.cm	≤6.0A	21.0kg.cm
150:1	26.5mm	≤0.2A	64rpm	≤2.0A	43rpm	14.5kg.cm	≤6.0A	33.0kg.cm
260:1	26.5mm	≤0.2A	35rpm	≤2.0A	25rpm	20.0kg.cm	≤6.0A	≥35.0kg.cm; not allowed stalling
450:1	29.0mm	≤0.2A	21rpm	≤2.0A	14rpm	25.0kg.cm	≤6.0A	≥35.0kg.cm; not allowed stalling
630:1	29.0mm	≤0.2A	15.5rpm	≤2.0A	10rpm	30.0kg.cm	≤6.0A	≥35.0kg.cm; not allowed stalling

37mm 50RPM To 490RPM Rpm 24V DC motor With Gearbox Parameter List

Ratio	Gearbox	No Load		Rated Load			Stall
i : 1	Length	Current	Speed	Current	Speed	Torque	Current	Torque
6.3:1	19.0mm	≤0.13A	1,530rpm	≤1.2A	1,030rpm	0.6kg.cm	≤3.5A	1.6kg.cm
10:1	19.0mm	≤0.13A	960rpm	≤1.2A	650rpm	1.0kg.cm	≤3.5A	2.7kg.cm
18.8:1	21.5mm	≤0.13A	510rpm	≤1.2A	346rpm	1.8kg.cm	≤3.5A	4.8kg.cm
30:1	22.0mm	≤0.13A	320rpm	≤1.2A	215rpm	3.0kg.cm	≤3.5A	7.5kg.cm
50:1	24.0mm	≤0.13A	192rpm	≤1.2A	130rpm	4.8kg.cm	≤3.5A	13.0kg.cm
90:1	24.0mm	≤0.13A	107rpm	≤1.2A	72rpm	8.5kg.cm	≤3.5A	21.0kg.cm
150:1	26.5mm	≤0.13A	64rpm	≤1.2A	43rpm	14.5kg.cm	≤3.5A	33.0kg.cm
260:1	26.5mm	≤0.13A	35rpm	≤1.2A	25rpm	20.0kg.cm	≤3.5A	≥35.0kg.cm; not allowed stalling
450:1	29.0mm	≤0.13A	21rpm	≤1.2A	14rpm	25.0kg.cm	≤3.5A	≥35.0kg.cm; not allowed stalling
630:1	29.0mm	≤0.13A	15.5rpm	≤1.2A	10rpm	30.0kg.cm	≤3.5A	≥35.0kg.cm; not allowed stalling

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.

37mm 500 Rpm 12V DC 528Motor With Gearbox Dimensions

37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor 0

Ratio	6.25-10	18.8-30	43.8-90	102-270	306-976	1179-2928
Gearbox Length Option(L)	19mm	21.5mm	24mm	26.5mm	29mm	31.5mm

Key Components Of GB37-528 Mini Gear Motor Dirver

Gearbox Structure & Functionality

A gear reduction motor integrates a high torque gearbox composed of multiple gears. Its primary role is to reduce the input speed of the drive motor while amplifying the output torque, enabling efficient power transfer for demanding applications.

The stator forms the stationary foundation of a DC gear motor, housing essential parts such as main magnetic poles, commutation poles, a durable frame, and brush assemblies. These elements work together to generate the magnetic field required for rotor movement.

Rotor Assembly

In micro gear motors, the rotor acts as the rotating core. It includes the armature core, armature windings, commutator, and a precision-engineered rotating shaft. This assembly converts electrical energy into mechanical motion, driving the motor’s operation.

Bearings & Worm Gears

Bearings and worm gears are critical in gear reduction motors for supporting rotational motion and power transmission. Bearings ensure smooth, low-friction operation, while worm gears efficiently transfer torque between perpendicular axes, enhancing the high torque gearbox’s reliability and performance.
