RK-370 Mini DC Motor , Round DC Motor 3V-36V For Auto Actuator Evaporation Tank
-
Highlight
RK-370 Mini DC Motor
,Round DC Motor 3V
,Round DC Motor 36V
-
Motor ShapeRound 370 Mini Motor
-
DirectionCW/CCW
-
Rated Voltage3V-36V Or Custom
-
OEM/OEMAvailable For Volt, Current, Torque, Speed, Shaft Length
-
Motor Length30.5mm(Not Including Shaft Length)
-
Housing Diameter24mm(D)
-
Brush TypeCarbon Brush Micro Motor
-
MPNDoes Not Apply
-
NameMini DC Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationIATF16949/ISO9001/Reach/RoHs/SGS
-
Model NumberRK-370
-
Minimum Order Quantity2000PCS
-
Packaging DetailsFoam Carton
-
Delivery Time35-45Days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union
-
Supply Ability10000PCS/Day
RK-370 Mini DC Motor , Round DC Motor 3V-36V For Auto Actuator Evaporation Tank

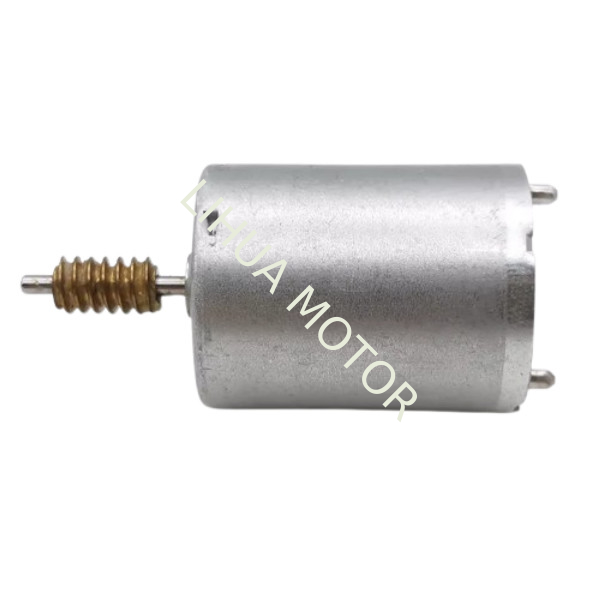

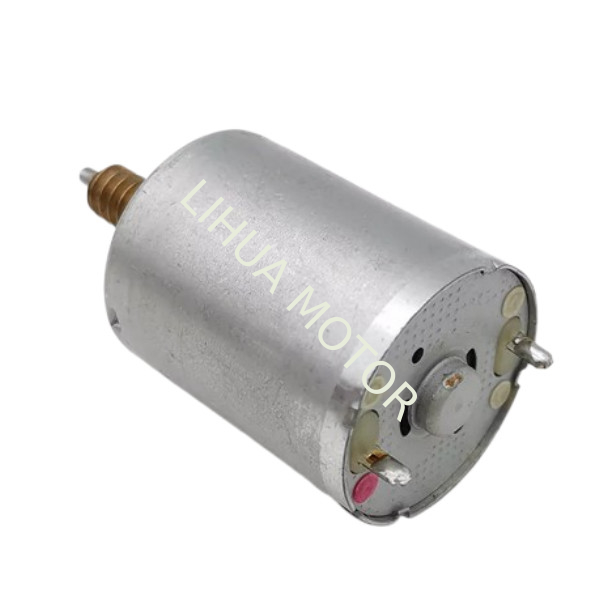

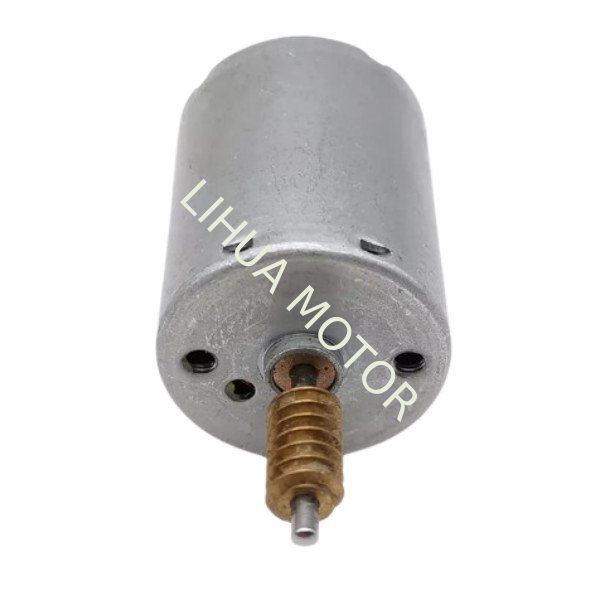

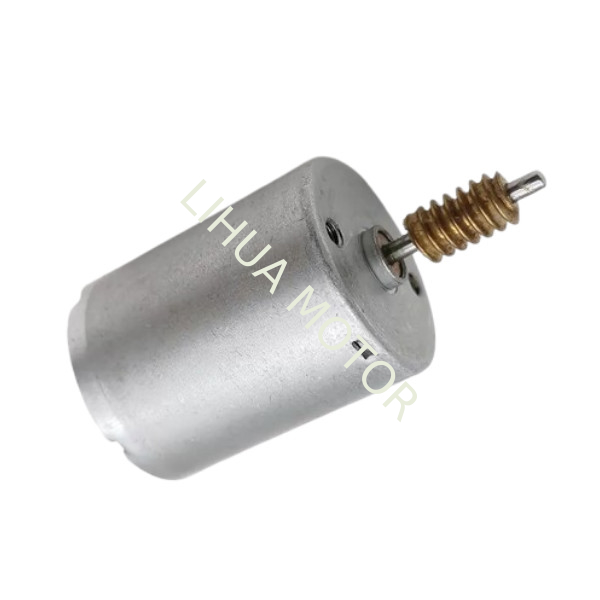

3V-36V 370 Mini Motor With Metal Copper Worm Gear For Auto Actuator Evaporation Tank
The 12V RK-370 Worm Gear Micro DC Motor is a compact yet powerful motor solution designed for precision-driven applications requiring high torque, self-locking performance, and long-term reliability. Integrated with a worm gear reduction system, this motor is ideal for various automation mechanisms, offering a perfect balance of size, performance, and durability.
Whether you are developing a smart home device, a medical instrument, or an industrial automation component, this motor provides efficient torque transmission and precise control in a small footprint.
RK-370 Mini Motor With Worm Gear Technical Specifications (Customizable)
| Item | Specification |
|---|---|
| Motor Type | Brushed DC Motor |
| Gear Type | Worm Gear Reduction |
| Model | RK-370 Worm Gear Motor |
| Operating Voltage | 12V DC (other voltages customizable: 6V, 24V) |
| No-load Speed | 2000–8200 RPM |
| No-load Current | 50–150 mA |
| Rated Torque | 0.5 ~ 10 kg·cm (customizable) |
| Worm Gear Size/Length | Can be design as your need |
| Shaft Type | Worm shaft (custom D-shaft, key shaft available) |
| Motor Size | Ø244mm (motor diameter) |
| Lifetime | ≥ 3000 hours under rated conditions |
| Operating Temperature | -10°C ~ +60°C |
Note: Custom voltage, gear ratio, shaft shape, and connector types are available upon request.
3V-36V 370 Mini Motor With Metal Copper Worm Gear Dimension
RK-370CB Micro Motor Key Features & Benefits
- High Torque Output: Worm gear reduction allows for significantly increased torque at low speed – ideal for lifting or rotating loads.
- Strong Self-locking Mechanism: The worm gear structure provides excellent self-locking capability, preventing reverse motion when power is off.
- Low Noise, Smooth Operation: Engineered with precision bearings and optimized gear mesh for quiet performance and low vibration.
- Space-saving Compact Design: RK-370 motor is small in size, suitable for compact device integration.
- Reliable Performance: Designed for continuous operation in demanding environments with extended service life.
RK-370 Motor With Worm Gear Applications
The RK-370 worm gear motor is widely used in:
- Smart Curtain Systems
- Electric Door Lock Mechanisms
- Robot Joint or Drive Systems
- Medical Devices & Laboratory Automation
- DIY Robotics & Engineering Projects
- Vending Machines & Coin Mechanisms
- Electric Window Openers
- Positioning Mechanisms with Self-holding Function
As a trusted supplier of small dc gear motor solutions, Lihua Motor manufactures high-quality mini dc motor with gearbox assemblies for industrial and consumer applications. Our small worm gear motor series delivers reliable torque output with customizable speed and voltage options to meet OEM requirements.
Our products are sold all over the world, you can rest assured.
