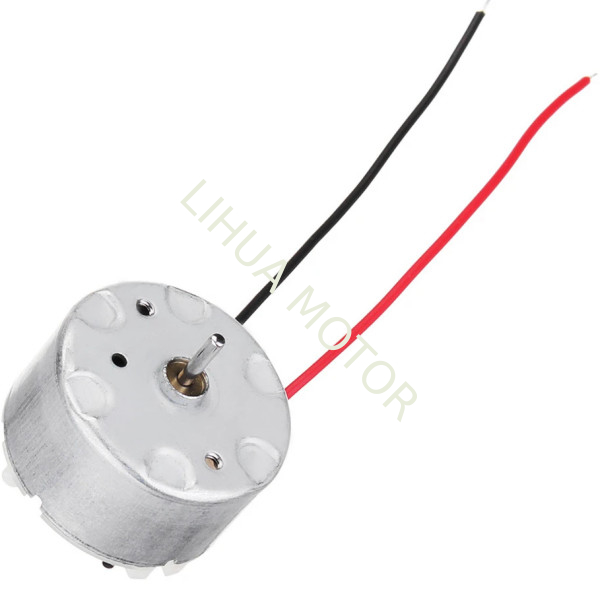

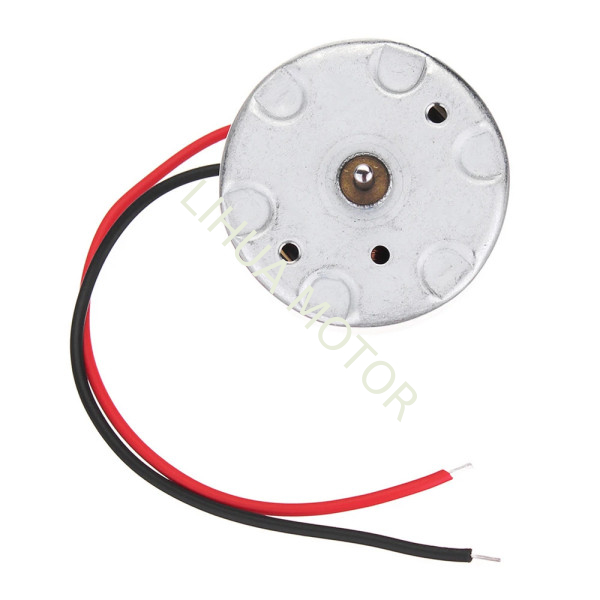

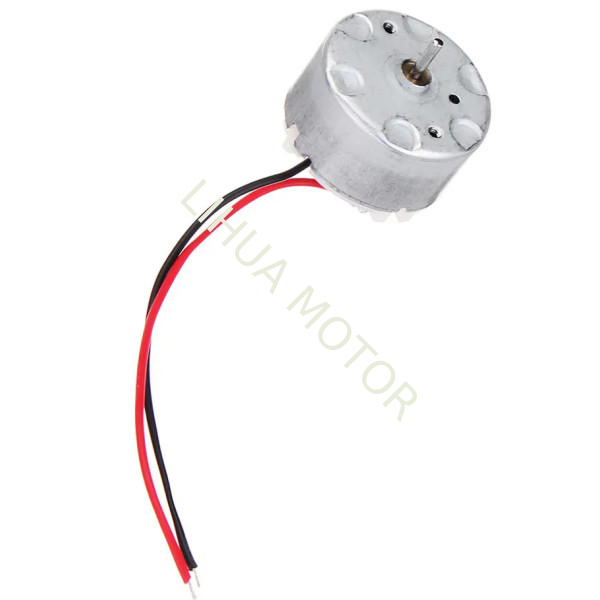

RF-500 12V DC Electric Motor High Rpm DC Motor For Rotating Firelight

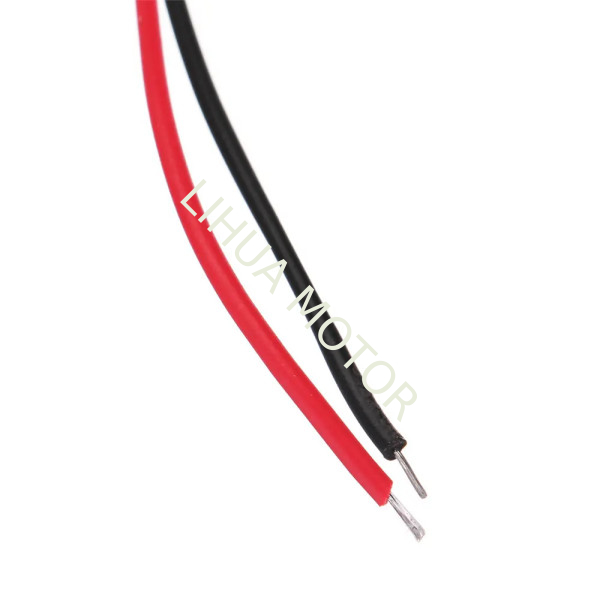

RF-500 12V dc Electric Motor High Rpm DC Motor With Cables For Rotating Firelight

Key Features:

• High-Speed Performance: Achieves speeds of up to 8700 RPM for efficient operation.

• Compact Design: 32mm small size and lightweight construction for easy integration into space-constrained devices.

• Permanent Magnet: Ensures consistent torque and reliable performance.

• Versatile Voltage: RF-500TB motor volt can be customized as your requirement,1V-36V 500 mini motor volt range can be choose.

RF-500TB Mini Motor Key Features:

• Model: RF-500 Motor

• Shaft Type: Single Shaft

• Shaft Diameter: 2mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter: 32mm

• Motor Body Length: 19.5mm(Without Motor Shaft)

• Voltage Range: DC 1.5V-36V

• Front Steps Diameter: 6.2mm

• Front Step Height: 1.9mm

• RF-500TB Test data:

•
  RF-500TB-19250A  Voltage:3.0V No-load current:35mA  No-load speed:3100RPM
  RF-500TB-17280    Voltage:3.0V No-load current:32mA  No-load speed:2700RPM
  RF-500TB-10660    Voltage:6.0V No-load current:15mA  No-load speed:2100RPM
  RF-500TBT-18265  Voltage:6.0V No-load current:55mA  No-load speed:5500RPM
  RF-500TB-12560    Voltage:3.0V No-load current:15mA  No-load speed:1300RPM
  RF-500TB-18280    Voltage:6.0V No-load current:45mA  No-load speed:5600RPMR
  RF-500TB-14415    Voltage:6.0V No-load current:25mA  No-load speed:3700RPMR

RF-500TB-12560Motor Introduction

The RF-500TB-12560 motor is a high-performance electric motor widely used in various industrial equipment and machinery. It features a refined design and a compact structure, providing stable and powerful output. Below, we will introduce the rated speed and other important specifications of this motor in detail.

1. Rated Speed of the RF-500TB-12560 Motor

The rated speed refers to the stable rotational speed of the motor under rated voltage and rated load, and it is one of the key indicators of motor performance. The rated speed of the RF-500TB-12560 motor is 3000 revolutions per minute (rpm). This means that under normal working conditions, the motor can operate stably at a speed of 3000 rpm, meeting the needs of various applications.

2. Other Key Specifications of the RF-500TB-12560 Motor

In addition to the rated speed, the RF-500TB-12560 motor also has the following key specifications worth noting:

1. Power: The rated power of this motor is 500 watts (W), indicating the amount of power it can continuously deliver under normal working conditions. Higher power means stronger output and greater working efficiency.

2. Torque: Torque is a measure of the motor’s rotational force and reflects the strength generated during rotation. The RF-500TB-12560 motor offers high torque output, making it suitable for applications that require powerful rotational force.

3. Voltage and Current: The rated voltage and current of this motor are 220 volts (V) and 5 amperes (A), respectively. When operating at the rated voltage, the motor can maintain stable performance, and the current remains within a safe range, reducing the risk of damage from overvoltage or overcurrent.

3. Application Fields of the RF-500TB-12560 Motor

Thanks to its excellent performance and stable operation, the RF-500TB-12560 motor is widely used in various fields, including but not limited to:

1. Machinery Manufacturing: In equipment such as machine tools, cutting machines, and drilling machines, this motor provides stable and powerful support, ensuring proper operation and high working efficiency.

2. Automation Equipment: In automated production lines, packaging machines, logistics equipment, etc., the high power and torque characteristics of the RF-500TB-12560 motor meet the requirements for power and precision, enhancing production efficiency and quality.

3. Environmental Protection Equipment: In areas such as wind power generation and water treatment, the motor also plays a vital role, ensuring the reliable operation of related equipment.
