K10 Miniature DC Motor High Speed Small DC Motor 3V 4.8V 20000RPM For Notebook PC

K10 Miniature DC Motor High Speed Small Motor 3V 4.8V 20000RPM For Notebook PC

FF-K10 Motor Sample Technical Performance:(All Technical parameters can be custom )

Motor Model:FF-K10VA-07160

Voltage range: 3v-6v max
Working voltage: 6.0V
No load:
Speed: 47234r/min
Current: 0.064A
At Maximum Efficiency load:
Speed: 36820 r/min
Current: 0.23A
Rated load: 0.09mNm

At Stall:
Torque: 4.58 g. cm
Current: 0.82A

K10 Mini Motor Parameter Sample List

 ✅ Customization Options

• Shaft shape and length
• Wire lead length and terminal type
• Motor speed (RPM)
• Operating voltage
• Torque
• Bearing type: Oil-impregnated or ball bearing
• Eccentric weights or gearboxes (optional)

K10 Miniature DC Motor High Speed Small Motor Size/Dimension

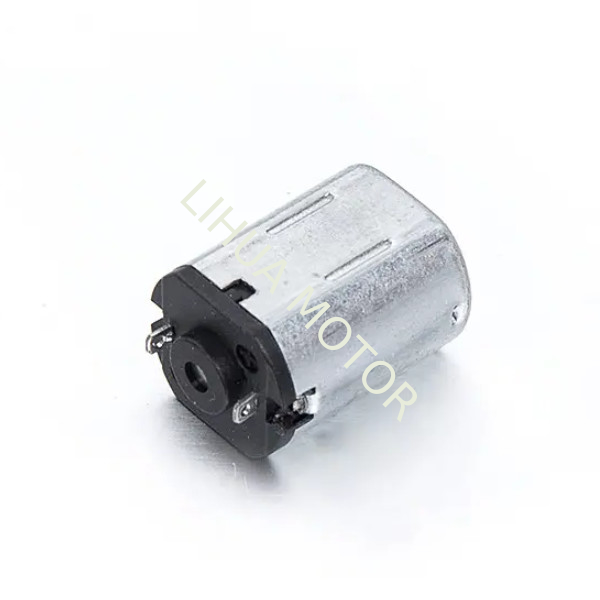

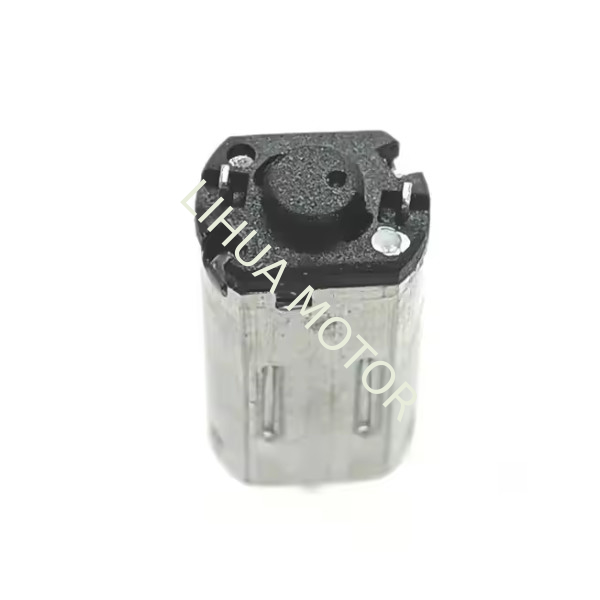

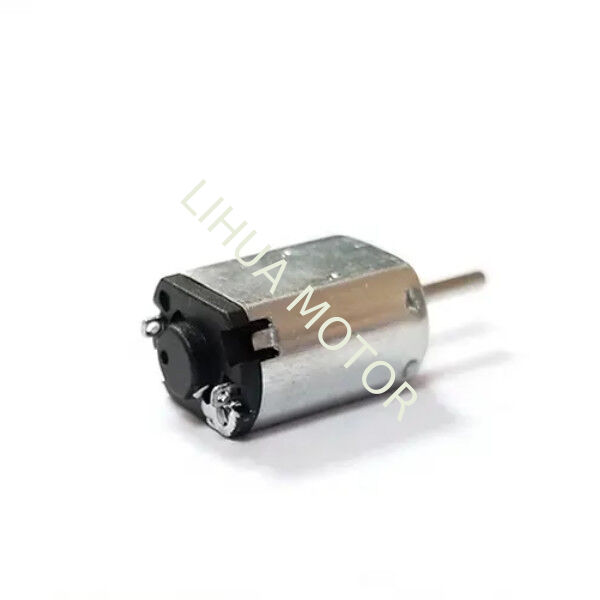

The FF-K10 micro DC motor is a compact, high-efficiency brushed motor widely used in consumer electronics, beauty devices, electric toothbrushes, mini fans, and small medical equipment. Below is the complete dimensional information and mechanical specifications.

✅ Note: Shaft dimensions (length/shape: D-type, round, knurled, etc.) can be customized based on customer application.

FF-K10 DC Motor – Common Q&A (Frequently Asked Questions)

Q1: What is the standard size of the FF-K10 motor?

A: The standard outer diameter is 8mm, and the body length is typically 14 – 16 mm. The shaft diameter is 1.0 mm, and the shaft length can be customized from 3 mm to 8 mm according to your product requirements.

Q2: Can you customize the shaft shape and length?

A: Yes, we are a direct motor manufacturer, and we offer OEM/ODM customization services. Shaft shape (round, D-type, knurled, stepped) and shaft length can be adjusted based on your application needs.

Q3: What voltage options are available for the FF-K10 motor?

A: Standard operating voltages include 1.5V, 3V, 6V. We can also customize non-standard voltages based on your design.

Q4: Can I adjust the motor speed (RPM)?

A: Yes. Motor speed is directly related to the operating voltage and winding design. We can adjust motor winding parameters to meet your target speed (e.g., 6,000 RPM to 18,000 RPM).

Q5: Do you provide samples for testing?

A: Yes, we offer free or paid samples, depending on your project requirements. Sample lead time is usually 3–7 working days.

Q6: What’s your minimum order quantity (MOQ)?

A: For standard models, our MOQ is usually 1,000 pcs per batch. For customized versions, MOQ may vary depending on complexity—please contact our sales team for details.

Q7: What is your production capacity and lead time?

A: We have an automated production line, and our monthly capacity exceeds 1.5 million units. Standard production lead time is 15–25 working days, depending on order quantity and customization level.

Q8: What quality standards and certifications do you have?

A: Our motors are ISO 9001, IATF 16949, CE, RoHS, and REACH certified. We have a complete quality management system, including raw material inspection, in-line inspection, and final testing.

Q9: Can you assist with motor selection for our application?

A: Absolutely. Our engineering team has over 20 years of experience, and we can help recommend suitable models or provide custom motor solutions based on your product design and usage environment.
