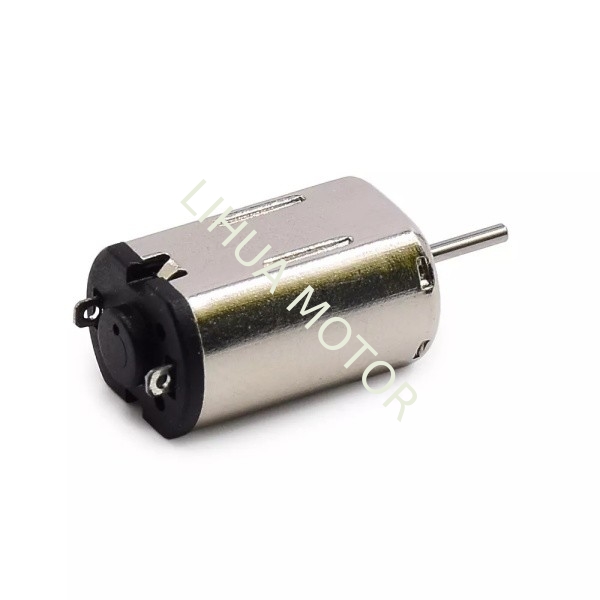

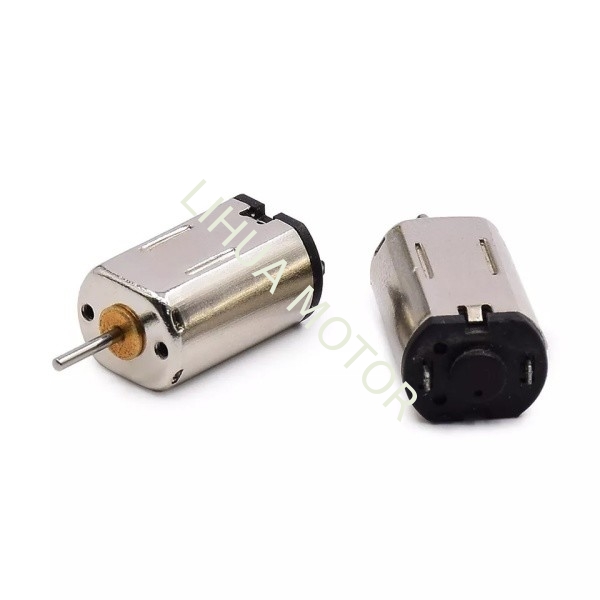

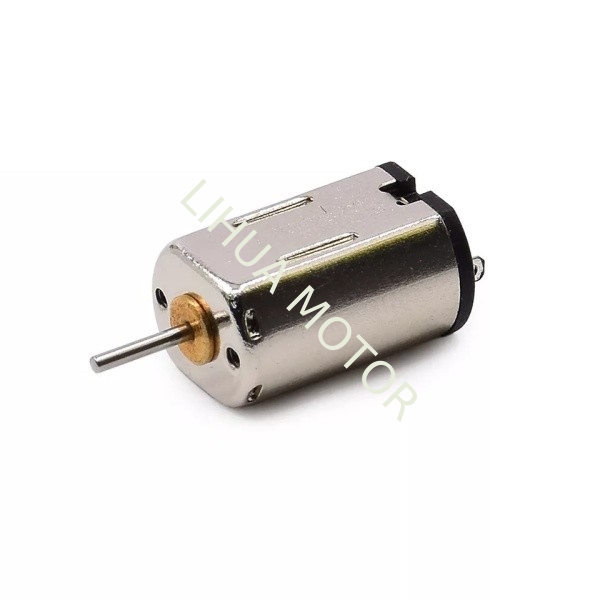

1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump

1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump

Products - Small Motor
  • Highlight

    3V Small Motor

    ,

    Small Motor 8mm*10mm

    ,

    FF-M20 High Speed Low Torque Motor

  • Name
    High Speed Low Torque Motor
  • Model Name
    FF-M20 Mini Motor
  • Motor Body Size
    8mm*10mm*15mm
  • Direction Of Rotation
    CW/CCW
  • Output Shaft Length
    3.5mm/3.6mm/4.3mm/15.5mm Or As Request
  • Shaft Diameter
    4mm
  • Rated Voltage
    1.5v 3v 5V 6v 7.5v 12v Dc Or As Request
  • Torque
    9.6g.cm/5.7g.cm Or As Request
  • Output Power
    0.1-3.5w
  • Usage
    Portable Camera, Car CD,MD Recorder, Electric Shaver, Massager
  • Speed(rpm)
    6000rpm/8000rpm/15000rpm/18000rpm Or Custom
  • Construction
    Permanent Magnet
  • Protect Feature
    Drip-proof
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor
  • Certification
    ISO9001,Reach,RoHs,SGS
  • Model Number
    FF-M20
  • Document
    6-FF-M20-Model.pdf
  • Minimum Order Quantity
    2000pcs
  • Price
    Negotiation
  • Packaging Details
    Carbon Box
  • Delivery Time
    25-45days
  • Payment Terms
    L/C,T/T,D/P,D/A,Western Union,MoneyGram
  • Supply Ability
    10000pcs/day

1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump

  • 1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump
  • 1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump
  • 1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump
Get Price Contact Now

1.5V 3V 8mm*10mm 10000Rpm FF-M20 Motor High Speed Low Torque Motor For Mini Pump



Model: FF-M20

Product Category: Micro Motor

Rated Voltage:1.5V 2V 3.0V 3.5V 3.7V  6V

Out Put: 0.1-3.5W

Weight: 4g

Introduction: Small, efficient, and precise, these motors are perfect for a variety of applications. With low noise and vibration, long lifespan, and the ability to deliver exceptional performance in a compact package, micro motors are the ideal choice for customers looking for high-quality motors.

Product Notes: Motor voltage, speed,current,torque ,shaft length, top cover can be tailor-made according to customer's requirements.





FF-M20 Mini Motor Parameter List

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A mNm R/min A W g.cm A
FF-M20-1550 1-3V 1.5V 18000 0.1 0.194 14601 0.387 0.32 9.6 1.5
FF-M20-07220 2-4V 3.5V 8609 0.02 0.063 6546 0.063 0.09 5.7 0.201
FF-M20-09125 2-6V 5.0V 25800 0.05 0.292 20879 0.21 0.641 15.6 0.90
FF-M20-10105 2-6V 5.0V 30500 0.06 0.306 24725 0.26 0.79 16.5 1.10

Alll parameters in this chart can be tailor-made as your need.

1g=0.035oz
1inch=25. 4mm
1g.cm=0.098mN.m
10z=28.35g
1mm=0.0394inch
1mNm=10.2g cm



FF-M20 small Motor 8mm*10mm DC 1.5V 3V 3.7V 2D Drawing

1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 0

1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 1

Note:

1) Dimension in the drawing can be adjusted acording to customer's requirement.
2) Motor can be designed upon the customer's requirements on performance,
installation, power connection method and motor dimension.
3) Motor can be mounted with varying shape and sizes of eccentric weight, which is
made of iron, brass, or fre-ally to become a vibralion motor.


 M20 Micro Motor Main Structures You May Know

When selecting a high-quality M20 mini motor, it’s essential to consider key components such as the steel housing material, shaft design, back cover customization, and brush needle placement. At Lihua Motor, we excel in these areas, using premium SECC steel for corrosion resistance, offering versatile shaft designs to meet specific needs, and providing customizable back covers (steel or injection). Our precisely placed brush needles further enhance motor lifespan. These meticulous details ensure our motors deliver superior performance and durability.



Steel Housing -- It is made of excellent materials and made of high-quality SECC. Corrosion resistant, not easy to rust.

Various Shaft -- According to the customer's request , it can be design into different shaft to adapt machines.

Injection Back Cover -- Back cover can be customized in steel cover or injection cover.

Brush Needles -- The two brush needles are evenly placed in the shaft center, which can prolong the service life of the motor.



Note on Color Variations: Motor color differences can arise due to environmental factors (e.g., exposure to sunlight, dust, or chemicals) or manufacturing processes (e.g., variations in coating techniques). These factors may affect surface materials or light reflection, resulting in slight color variations. Rest assured, these differences do not impact the motor’s performance or quality.








1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 21.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 31.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 4







M20 Mini Motor: A Versatile Powerhouse for Precision and Innovation

Drones, robots, automatic door locks, high-end toys, electric toothbrushes, robotic arms, electric massage devices, electric curtains, fans, bathroom appliances, electric vehicles, paragliders, electric skateboards, remote controls, electric bicycles, sports equipment, mini water pumps, and smart appliances are just a few examples of the diverse applications for micro motors.

As a standout member of the micro motor family, the M20 motor offers distinct features and advantages. It is widely utilized in precision instruments such as cameras, CD players, aerospace models, and blood pressure monitors. Additionally, when equipped with vibrating components, the M20 mini motor becomes an ideal choice for smart massagers and vibration machines, delivering reliable performance and versatility across various industries.



1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 5 1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 6 1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 7 1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 8 1.5V 3V Small Motor 8mm*10mm 10000Rpm FF-M20 High Speed Low Torque Motor For Mini Pump 9
M20 Mini motor with gear box M20 Mini motor for mini pump Vibration M20 Mini motor Geared M20 Mini motor DC M20 Gread motor
