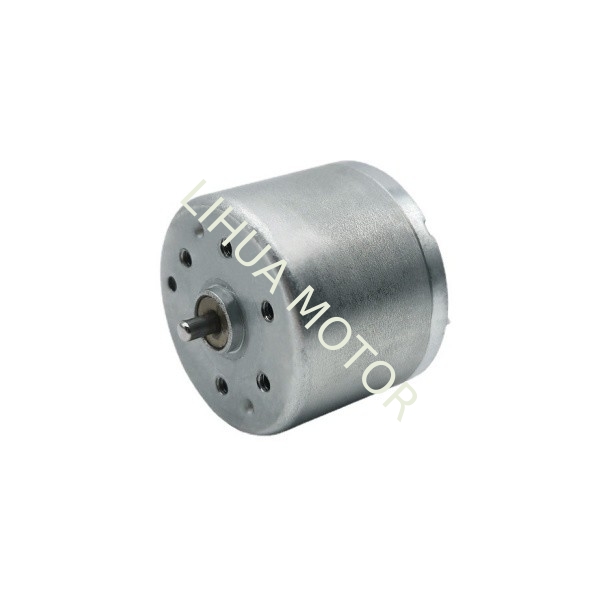

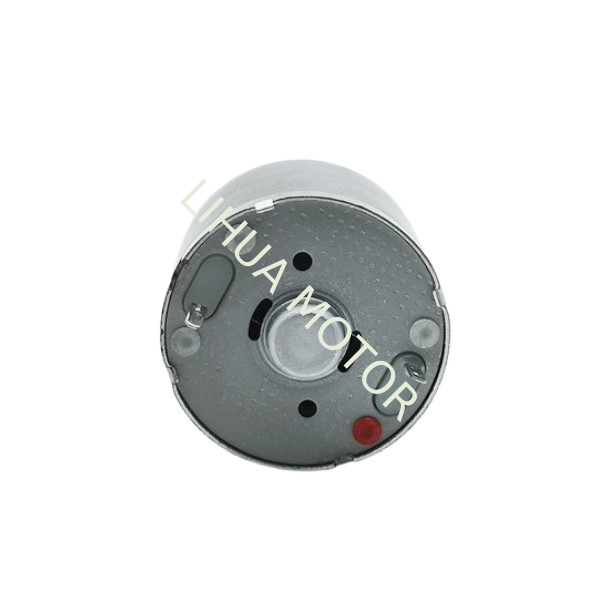

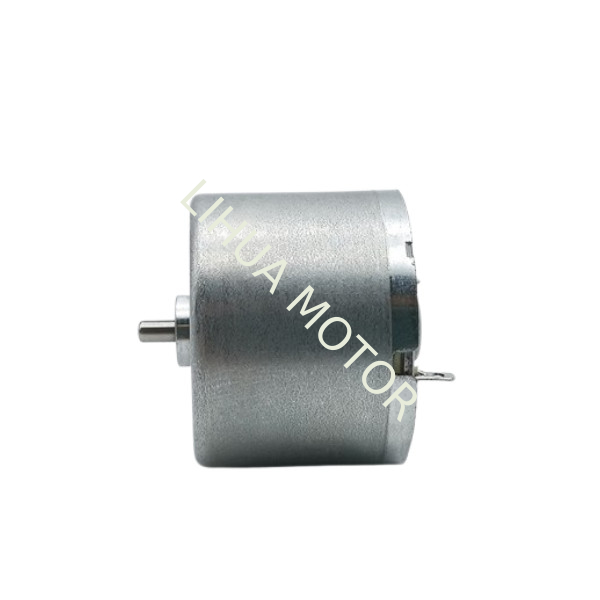

RF-310TA 24.4cm 3700Rpm Micro Mini DC Motor Low Noise High Speed Round Spindle

RF-310TA-13320 Motor Technical Parameter

• The performance characteristics of the RF-310 motor include forward and reverse rotation, multiple speeds, and low noise. It has a compact structure, efficient power transmission, high torque and speed, and low noise.



  • Operating Motor voltage: 2V-4V
  • Motor Type:RF-310TA-13320 motor
  • Direction Of Rotation:CW
  • Rated Volt:3.0V
  • No-load Speed:3700rpm
  • No-load Current:≤35mA
  • Motor height: 20.1mm
  • Motor diameter: 24.4mm Max
  • Step Height: about 1.4mm
  • Step diameter: about 6.4mm
  • Fixed aperture: 2mm
  • Motor shaft diameter: 2mm
  • Motor shaft length: 10.8±0.5mm

  • Brush Type: Metal brushes
  • Customization Service:Voltage, speed,torque and current can be custom.

RF-310TA-11400 Motor Micro Brush DC Electric Motor Data Table

RF-310 Motor DC Popular Custom Types

Product Parameters and Drawing Requirements for Custom Micro Motors

When customizing micro motors, to ensure the motor fully meets your application needs, the following are some key parameters and drawing requirements for your reference and provision:

1. Electrical Parameters

Voltage Range: For example, 3V, 6V, 12V, etc., specifying the motor's operating voltage.

Rated Current: The current value of the motor under rated load.

No-Load Speed: The motor's speed (RPM) under no-load conditions.

Load Speed: The motor's speed (RPM) under rated load.

Starting Torque: The minimum torque required for motor startup (e.g., g·cm or mN·m).

Power Output: The motor's rated power (W).

2. Mechanical Parameters

Shaft Type: For example, D-shaped shaft, smooth shaft, gear shaft, etc.

Shaft Diameter and Length: For example, shaft diameter of 2mm and shaft length of 10mm.

Motor Dimensions: Including motor housing diameter, length, etc. (e.g., Φ20mm × 30mm).

Mounting Method: For example, screw hole positions and dimensions (e.g., M2 screw holes with 15mm spacing).

Weight Requirement: The maximum allowable weight of the motor.

3. Performance Requirements

Noise Level: For example, below 50dB.

Lifespan Requirement: For example, a continuous operating life of 5000 hours.

Operating Temperature Range: For example, -10°C to 60°C.

Protection Rating: For example, IP54 (dust and water resistance rating).

4. Environmental Adaptability

Corrosion Resistance Requirement: For example, suitability for high humidity or chemical environments.

Vibration and Shock Resistance: For example, meeting specific vibration frequency and shock intensity requirements.

5. Drawing Requirements

2D Engineering Drawings: Including motor dimension drawings, shaft dimensions, mounting hole positions, etc.

3D Models: Provide 3D CAD files of the motor (e.g., STEP or IGES format) for easy integration into your design.

Special Annotations: Such as shaft end processing requirements, surface treatment (e.g., nickel plating, oxidation), etc.

6. Other Custom Requirements

Cable Specifications: For example, cable length, diameter, and connector type.

Color Requirements: Customization of motor housing or component colors.

Certification Requirements: For example, RoHS, REACH, and other environmental certifications.
