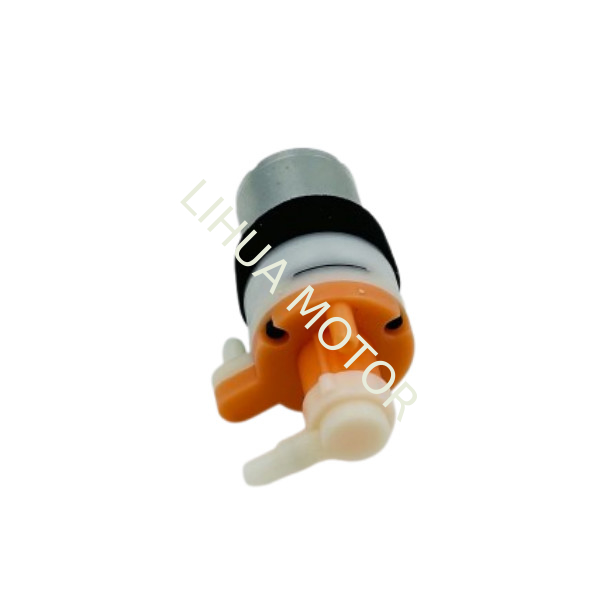

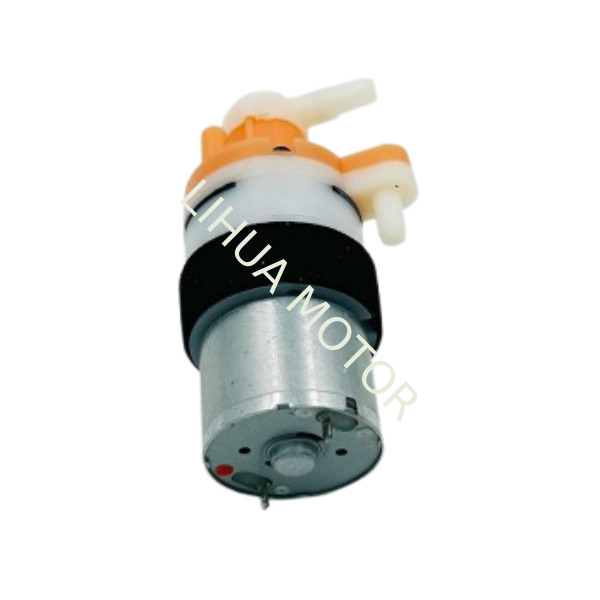

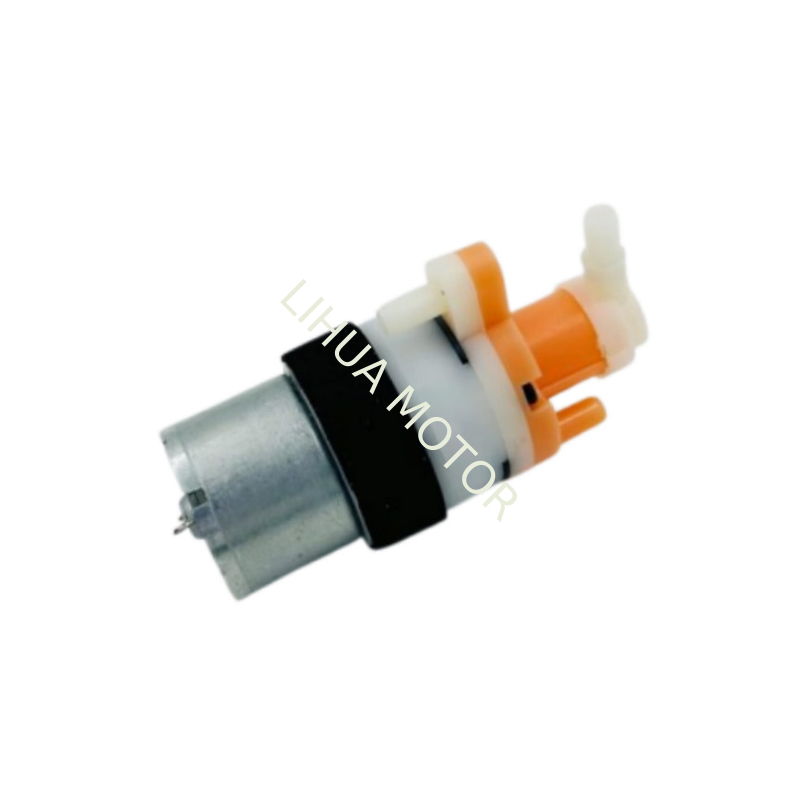

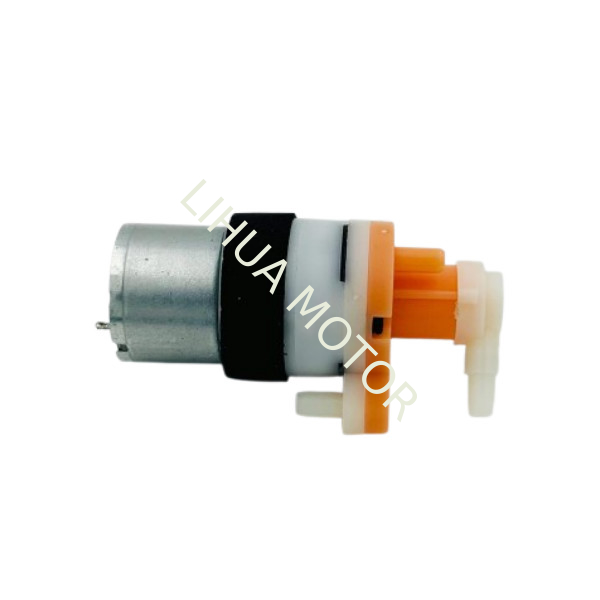

24.4mm DC3V-3.7V RF-310 Mini 2800 Rpm DC Motor For Soap Dispenser Foam Motor Pump
-
Highlight
3.7V 2800 Rpm DC Motor
,Mini 2800 Rpm DC Motor
-
Motor TypeRF-310TA-13320
-
Rated Voltage3V
-
Shaft Diameter2mm
-
Shaft Length6mm/10mm/15mm/22mm Or As You Request
-
Motor Body Size24.4mm*20.1mm
-
No-load Speed3000RPM/6000RPM/1200RPM/Or As You Request
-
Shaft TypeRound/D Shaft/Knurling/Screw Thread
-
Noise Level＜45 DB
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/ HCS Motors
-
CertificationISO9001/Reach/RoHs/SGS/CE
-
Model NumberRF-310TA-13320
-
Document
-
Minimum Order Quantity3000pcs
-
PriceNegotiation
-
Packaging DetailsFoam Inner /Carbon Outer
-
Delivery Time30-45Days
-
Payment TermsT/T,D/P,D/A,L/C,Western Union,MoneyGram
-
Supply Ability12000pcs/Day
24.4mm DC3V-3.7V RF-310 Mini 2800 Rpm DC Motor For Soap Dispenser Foam Motor Pump
-
- Motor Voltage: 1V-4V
- Rated Volt:3V
- No-load Speed:3700rpm
- No-load Current:≤35mA
- Motor Height: 20.1mm approx
- Motor Diameter: 24.4mm Max
- Step Height: about 1.4mm
- Step diameter: about 6.4mm
- Fixed Aperture: 2mm*0.4
- Motor Shaft Diameter: 2mm/1.5mm
- Motor Shaft Length: 6mm, 10mm, 22mm, 15mm Or as your requirement
- Brush Type: Low noise metal brushes
- Customization Service:Voltage, speed,torque and current can be custom.
- RF-310 Mini motor combined with Pump Parameters Examples
Rated Voltage
DC 6.0V
DC 12.0V
DC 24.0V
Rated Current
< 1200mA
< 900mA
< 700mA
Liquid Flow
> 1.0 LPM
> 1.0LPM
> 1.0 LPM
Liquid Pressure
> 50Kpa
> 50Kpa
> 50Kpa
Noise
< 60dB
< 60dB
< 60dB
Pipe
Φ 4.2mm
Φ 4.2mm
Φ 4.2mm
Dimension
Φ 27*55mm
Application
Widely used in Automatic Liquid Dispenser
RF-310 Motor Other Custom Motor Micro Brush DC Electric Motor Data Table
| Model | Voltage | No Load | RATED LOAD | Stall | ||||||
| Operating range | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |
| VDC | RPM | A | RPM | A | mN.m | W | gf.cm | A | ||
| RF-310TA-11400 | 1-4V | 2.5V | 2800 | 0.015 | 2267 | 0.06 | 0.33 | 0.08 | 16.5 | 0.238 |
| RF-310TA-07800 | 2-4V | 3.0V | 1300 | 0.007 | 934 | 0.018 | 0.26 | 0.02 | 9.6 | 0.053 |
|
|
||||||||||
Versatile Applications of the RF-310 Miniature Brushed DC Motor
The compact yet powerful RF-310 metal brushed DC motor delivers exceptional performance across multiple applications, offering reliable operation with high efficiency and minimal noise. This miniature workhorse excels in precision control systems and everyday devices alike.
Key Application Areas:
1. Smart Water Management Systems
Precisely regulates water flow in automated valves
Enables intelligent water conservation features
Supports remote control functionality
Low-power design ensures continuous operation
2. Optical Disc Mechanisms
Drives laser head positioning systems
Powers spindle rotation in VCD/DVD players
Maintains critical alignment tolerances
Ensures stable data reading performance
3. Emergency Lighting Solutions
Serves as core generator component
Converts mechanical energy to electrical power
Delivers reliable performance in critical situations
Ideal for portable emergency lighting
4. Fluid Handling Systems
Powers miniature liquid transfer pumps
Drives air circulation in compact systems
Suitable for medical and aquarium equipment
Provides consistent flow with quiet operation
5. Ambient Fragrance Control
Drives atomization mechanisms
Powers circulation fans in diffusers
Enables precise fragrance release
Enhances indoor air quality
Technical Advantages:
Compact 310-series footprint
Optimized power efficiency
Precision-engineered components
Long service life design
Adaptable to various voltage requirements
