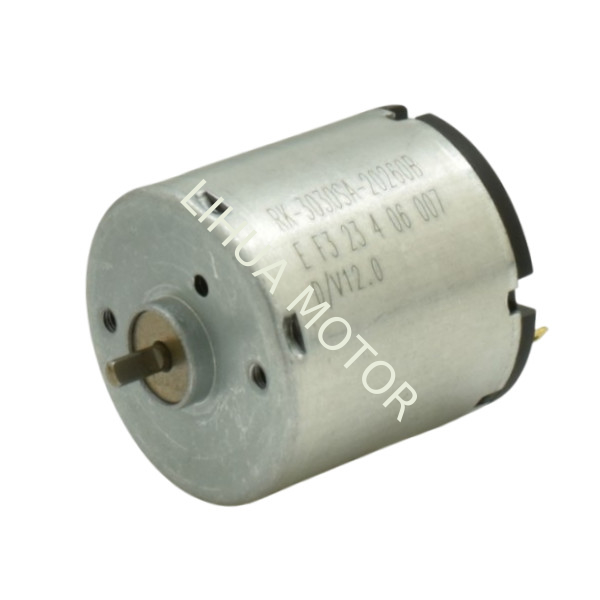

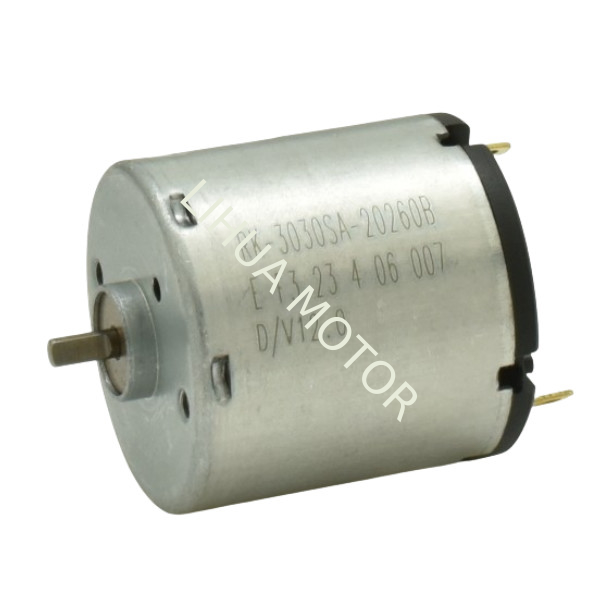

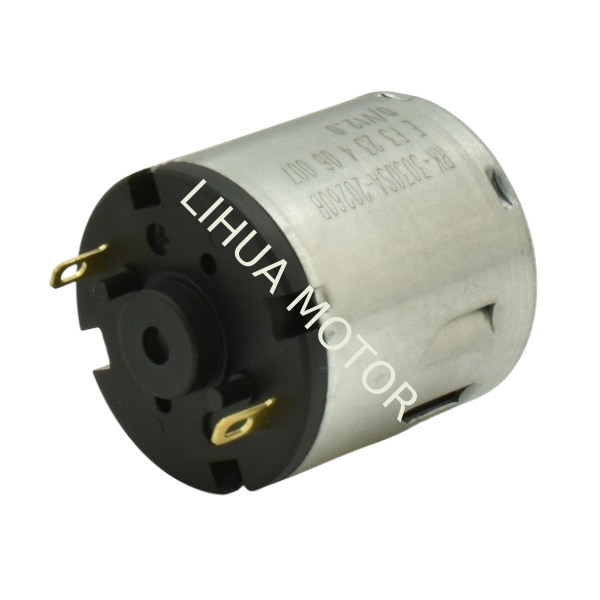

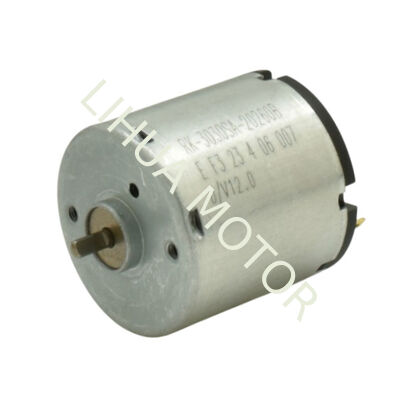

Small Electric Motor 12V RK-3030SA 30mm For Air Pump High Torque Mini Motor

Micro DC Motors in Water Pump Applications: Advantages & Working Principles

Micro DC motors provide diverse power outputs (suction, vibration, extension, oscillation, etc.) for various applications. Below is a concise explanation of their advantages and working principles in water pumps.

How DC Motor Pumps Work

A DC motor pump generates suction via high-speed rotation. During operation:

• The coil and commutator rotate continuously

• The magnets and carbon brushes remain stationary

• Current direction alternates through brush-commutator contact

Types of DC Motor Pumps

1. Brushed DC Motors

✅ Pros:

• Low cost

• Easy speed control

• High starting torque

❌ Cons:

• Brush-commutator friction increases noise

• Limited lifespan (~1000 hours)

2. Brushless DC Motors (BLDC)

✅ Pros:

• No brush/commutator wear (uses electronic commutation)

• Longer lifespan (depends on bearings)

• Lower noise

❌ Cons:

• Complex speed control

• 1–3x higher cost than brushed motors

Key Features of Micro DC Motor Pumps

1. Compact, efficient, low-maintenance with extended lifespan

2. Customizable specs under the same voltage (e.g., 12V 20,000 RPM or 12V 25,000 RPM)

3. High precision & low noise (<35 dB; near-silent for low-power models)

4. Flexible speed control via PWM, analog signals, or potentiometers

Usage Guidelines

⚠ Avoid:

• Particle ingress (metallic debris increases friction)

• Demagnetization (caused by overheating)

• Prolonged idling

Motor Selection Criteria

1. Electrical specs: Higher voltage = faster speed but more noise/current

2. Size/shape constraints

3. Operating environment (e.g., temperature limits)
