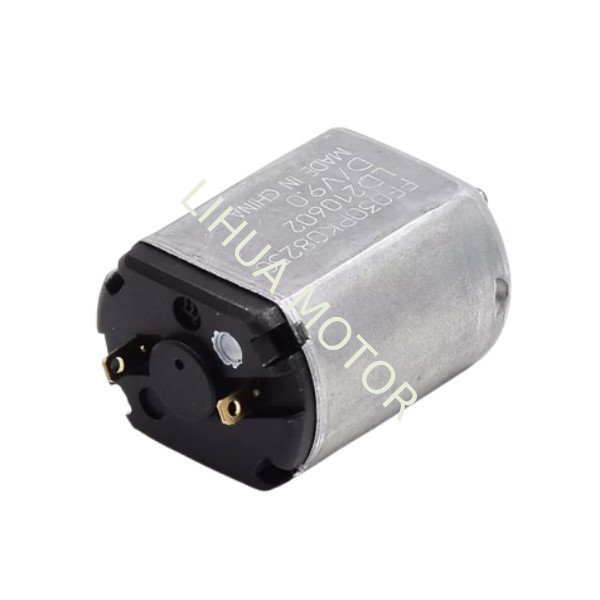

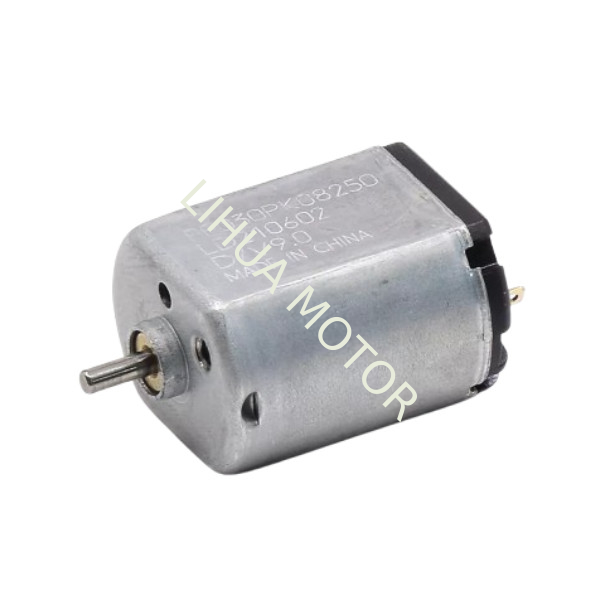

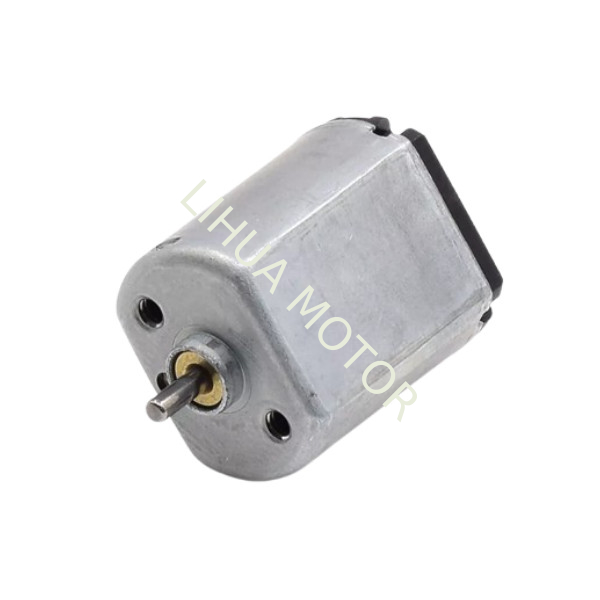

FF-030PK Motor 3V 5V 12mm*15.5mm 10700RPM Small Variable Speed Electric Motor For Gearbox
-
Highlight
FF-030PK Motor
,10700RPM Small Variable Speed Electric Motor
,5V Small Variable Speed Electric Motor
-
NameSmall Variable Speed Electric Motor
-
Motor ModelFF-030PK-12130
-
Motor TypePrecious Metal Brush Motor
-
Rated Volt3.0V
-
No-load Speed10700 Rpm
-
Size18.6 * 15.5 * 12mm
-
Shaft Length5.0±0.3mm
-
Shaft Diameter1.5mm
-
ConstructionPermanent Magnet
-
Shaft TypeStraight
-
ApplicationPrecision Instruments, Household Appliances, Blood Pressure Meter, Etc.
-
Place of OriginDongguan China
-
Brand NameLihua Motor /HCS Motors
-
CertificationISO9001/CE/Reach/RoHs
-
Model NumberFF-030PK-12130
-
Document
-
Minimum Order Quantity3000pcs
-
PriceNegotiation
-
Packaging DetailsCarbon Box
-
Delivery Time30-45Days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union,MoneyGram
-
Supply Ability10000PCS/Day
FF-030PK Motor 3V 5V 12mm*15.5mm 10700RPM Small Variable Speed Electric Motor For Gearbox
FF-030PK 3V 5V 12mm*15.5mm 10700RPM Small Variable Speed Electric Motor For Gearbox
FF-030 12mm in diameter and 15.5mm in length, the FF-030 is incredibly small and lightweight, making it ideal for space-constrained applications.With a maximum speed of 10700 RPM, this motor delivers the power you need to drive your mini water pump efficiently.
|
Item |
Precise metal brush motor |
|
Motor Type |
FF-030PK-12130 |
|
Rated Volt |
DC3.0V |
|
No-load Speed |
10700rpm |
|
Output Shaft Length |
5.0±0.3mm |
|
Direction of Rotation |
CW/CCW |
|
OEM & ODM |
Accepted |
|
MOQ |
3000 units |
|
Capacity |
30,000 units/month |
|
Package |
Carton |
|
Place of Origin |
Dongguan, Guangdong, China |
|
Delivery Date |
Depending on the quantity, please ask the salesman. |
|
Port of Shipment |
Shenzhen / Hong Kong |
FF-030PK Mini Electric Motor Parameter Types Table
|
Model |
Volt |
No-load |
At Maximium Efficiency |
Stall |
|||||||||
|
Operating Range |
Rated |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
||||
|
V |
V |
r/min |
A |
r/min |
A |
mNm |
g.cm |
W |
mNm |
g.cm |
A |
||
|
FF-030PA |
11155 |
2.0-4.0 |
3 |
7200 |
0.045 |
5500 |
0.17 |
0.49 |
5 |
0.28 |
2.06 |
21 |
0.59 |
|
1592 |
2.0-4.0 |
3.5 |
14300 |
0.09 |
12500 |
0.3 |
0.49 |
5 |
0.64 |
3.92 |
40 |
2 |
|
|
FF-030PK |
05440 |
3.5-12.0 |
12 |
11000 |
0.02 |
7800 |
0.065 |
0.49 |
5 |
0.4 |
1.67 |
17 |
0.18 |
NOTE:
1mNm= 1Ncm = 10.2gcm
Customized product models are available upon request
FF-030PK 12mm*15.5mm High RPM Small Variable Speed Electric Motor Dimension
Standard Size Information for FF-030PK Mini Motor
FF-030 Body Size: 18.6*15.5*12mm (L*W*H)
Output Shaft Length: L±0.5mm (Free Custom)
Output Shaft Diameter: 1.5mm
Screw Hole Size:2mm*0.4
Screw Hole Distance: 10.0±0.1mm
Front Step Height:1.5mm
Weight: 10 grams
Unit:mm
Difference Between FF-030 ,FF-031 and FF-032 Mini Motor
| DC Motor Type | Volt |
Standard Motor Size (L*W*H) |
Brush Type | Direction Of Rotation | Torque | ODM/OEM |
| FF-030PK/FF-030 | 1V-12V | 18.6mm*15.5mm*12mm | Precious Metal Brushed | CW/CCW | 19.3g.cm(3V) | Accepted |
| FF-031PK/FF-031 | 1V-12V |
20mm*14mm*12mm |
Precious Metal Brushed | CW/CCW | 21.0g.cm(3V) | Accepted |
| FF-032PKFF-032 | 1V-12V | 18mm*14mm*12mm | Precious Metal Brushed | CW/CCW | 15.5g.cm(3V) | Accepted |
Custom FF-030PK Mini Motor Types
|
|
|
FF-030PK Micro DC Recliner Vibrator Motors Low Current with Brush Commutation Permanent Magnet |
Metal Brush Micro 15mm*12mm Electric Motor for Car AV Device Lock with Plastic Worm Shaft |
Audio CD Drive Motor FF030PK Mute DC Motor for Electronic lock Car AV Device with Cable |
