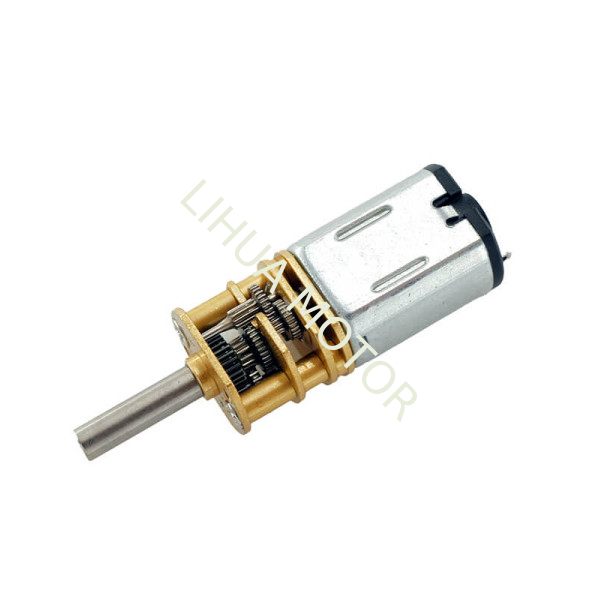

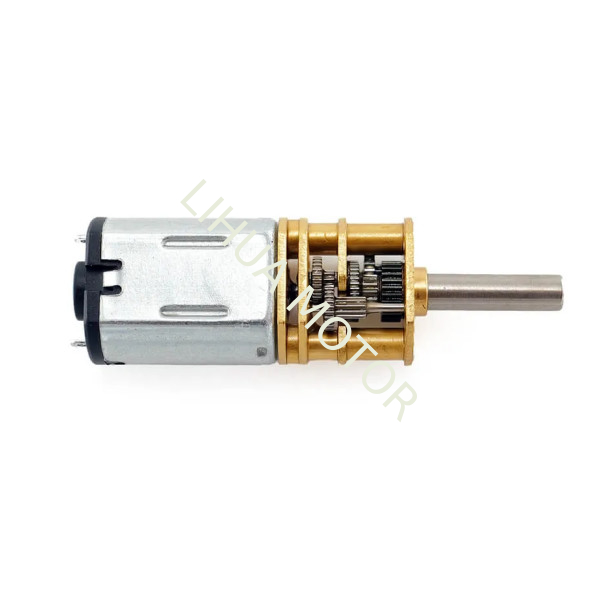

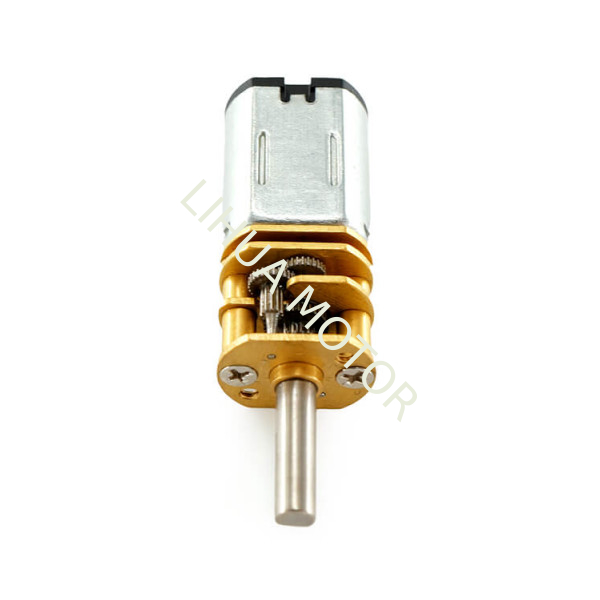

10mm 2.5mm Shaft M20 DC Motor Precision Small Electric Motor With Reduction Gear Drive

Products - Small Motor

Highlight

M20 DC Motor
,
Precision Small Electric Motor
,
Small Electric Motor With Reduction Gear Drive
Name

M20 DC Motor
Model Name

Gear M20 Mini Motor
Type

Micro Motor,DC Motor
Single Motor Size

8mm*10mm*15mm(H*D*L)
Output Shaft Length

3.5mm/3.6mm/4.3mm/15.5mm Or As Request
Commutator

Precise Metal Brush
Direction Of Rotation

CW/CCW
Gearbox Size

10mm*9mm(D*H)
Shaft Length

10mm
Place of Origin

Dongguan,China
Brand Name

Lihua Motor/HCS Motors
Certification

ISO9001,Reach,RoHs,SGS
Model Number

FF-M20 Gear Motor
Minimum Order Quantity

2000pcs
Price

FF-M20 small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM
Packaging Details

Carbon Box
Delivery Time

30-45days
Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability

10000pcs/day

10mm 2.5mm Shaft M20 DC Motor Precision Small Electric Motor With Reduction Gear Drive

Name: 10mm 2.5mm Shaft M20 DC Motor Precision Small Electric Motor With Reduction Gear Drive
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: FF-M20 Gear Motor
Price: 1.50 USD
Availability: InStock

button button

Get Price Contact Now

10mm 2.5mm Shaft M20 DC Motor Small Electric Motor With Reduction Gear Drive CE

Meta Description:
Discover our 10mm M20 series micro DC gear motors with 2.5mm shaft - offering 52-185 RPM, 0.22-0.9kg.cm torque & ≤0.4A current. Perfect for robotics, medical devices & automation. CE certified. Custom ratios available.

Single FF-M20 Mini Motor Parameter List

Model	Voltage(V)		No Load		Rated Load				Stall
	Range	Rated	Speed	Current	Torque	Speed	Current	Output	Torque	Current
	Range	Rated	R/min	A	mNm	R/min	A	W	g.cm	A
FF-M20-1550	1-3V	1.5V	18000	0.1	0.194	14601	0.387	0.32	9.6	1.5
FF-M20-07220	2-4V	3.5V	8609	0.02	0.063	6546	0.063	0.09	5.7	0.201
FF-M20-09125	2-6V	5.0V	25800	0.05	0.292	20879	0.21	0.641	15.6	0.90
FF-M20-10105	2-6V	5.0V	30500	0.06	0.306	24725	0.26	0.79	16.5	1.10
The Performance of M20 small geared electric motors are affected by Single M20 motor.We will custom m20 geared motor according to your requirement.

2.5mm Shaft M20 DC Motor Small Electric Motor Reduction Motor 2D Drawing/Dimension

10mm 2.5mm Shaft M20 DC Motor Precision Small Electric Motor With Reduction Gear Drive 0

Note:

1) Dimension in the drawing can be adjusted acording to customer's requirement.
2) Motor can be designed upon the customer's requirements on performance,
installation, power connection method and motor dimension.
3) Motor can be mounted with varying shape and sizes of eccentric weight, which is
made of iron, brass, or fre-ally to become a vibralion motor.
1g=0.035oz
1inch=25. 4mm
1g.cm=0.098mN.m
10z=28.35g
1mm=0.0394inch
1mNm=10.2g cm

Compact & Powerful: M20 Series 10mm DC Gear Motors

Key Features:
✅ Ultra-Compact - Only 10mm diameter with integrated metal gearbox
✅ Precision Performance - 52-185 RPM with 0.22-0.9kg.cm torque output
✅ Low Power Consumption - ≤0.4A stall current for energy efficiency
✅ CE Certified - Meets EU safety standards for commercial use
✅ Multiple Ratios - Choose 1:100 (185RPM) or 1:250 (74RPM) versions

Technical Specifications

Model	M20-74	M20-185
Voltage	6V DC	6V DC
Gear Ratio	1:250	1:100
No-Load RPM	74±10%	185±10%
Rated Torque	0.25kg.cm	0.22kg.cm
Stall Torque	≥0.9kg.cm	≥0.8kg.cm
Current Draw	≤0.4A (max)	≤0.4A (max)

Ideal Applications

Medical Devices: Insulin pumps, surgical tools
Robotics: Micro robotic arms, drone gimbals
Automation: Smart locks, vending mechanisms
Consumer Electronics: Camera focus systems, smart mirrors

Precision Micro Gear Motors - Custom 10mm to 42mm DC Solutions

Compact Power for Smart Applications
Our high-performance DC gear motors range from ultra-compact 10mm to robust 42mm diameters, available in 3.7V, 5V and 12V configurations. Specializing in M20 series micro gearboxes, we deliver customized motion solutions for precision-driven applications worldwide.

Technical Highlights:
✔ Voltage Options: 3.7V | 5V | 12V DC
✔ Size Range: 10mm - 42mm diameter
✔ Custom Gear Ratios: Optimized torque/speed profiles
✔ Key Features:

High torque density
<45dB silent operation
Industrial-grade metal gears
IP54 protection available

Industry-Proven Applications:

Smart Technology
• Smart lock actuators
• Home automation systems
• ATM cash handling mechanisms

Precision Equipment
• 3D printer extruders
• Medical pump drives
• CNC tool positioning

Commercial Systems
• Bill validator mechanisms
• Stage lighting controls
• Camera autofocus modules

Customization Services:
We engineer motors to your exact specifications:
→ Shaft modifications (D-cut, flatted, threaded)
→ Encoder integration (optical/magnetic)
→ Special winding configurations
→ Custom voltage/current requirements
