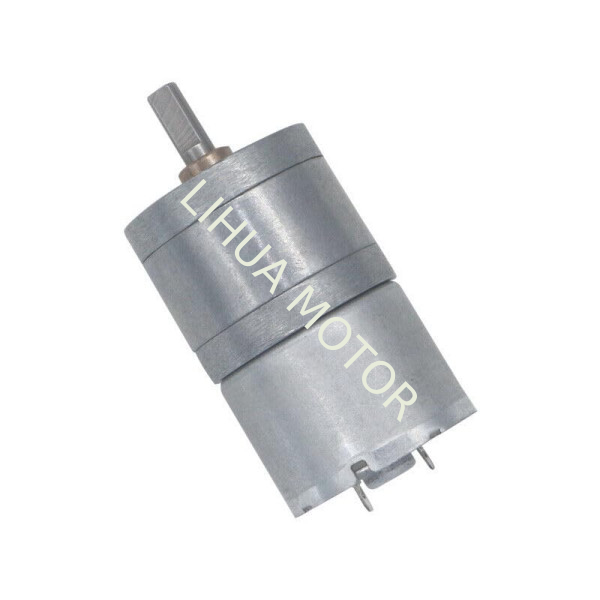

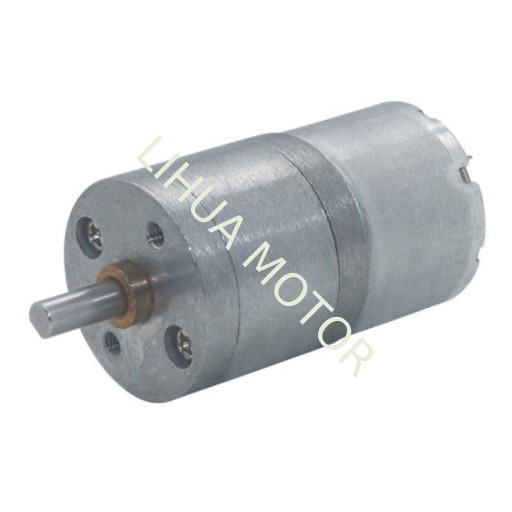

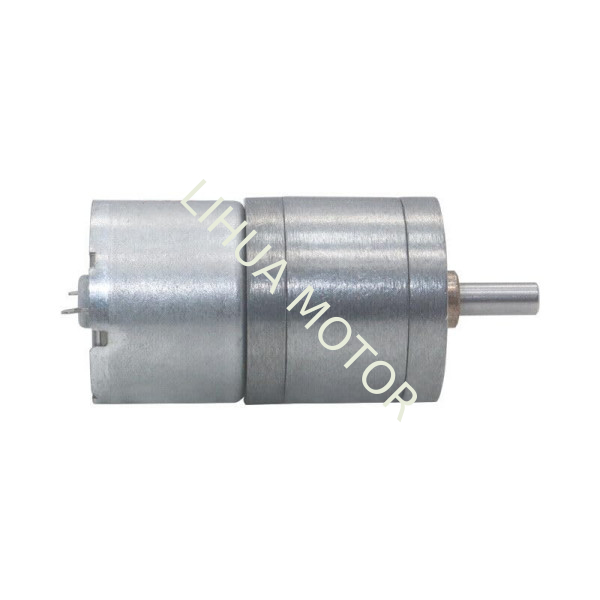

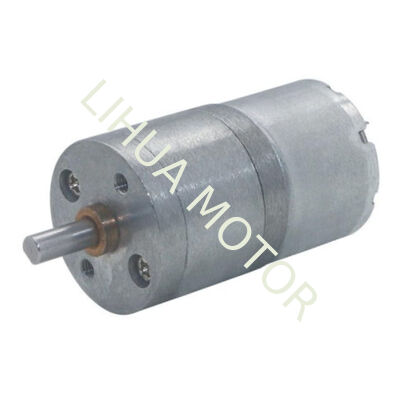

25mm Metal 320 Small Geared Motor Electric Motor Gear Reduction Box Metal Gearbox Motor
-
Highlight
25mm Small Geared Motor
,Metal Small Geared Motor
,Reduction Box Metal Gearbox Motor
-
Motor TypeGM25-320
-
Ratio103:1
-
Rated Volt6V
-
No-load Speed70Rpm Or Custom As Your Need
-
No-load Current≤0.05A
-
Stall Torque2.7kgf.m
-
ODM/OEMAccepted
-
Category25mm Gear Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationCE/RoHs /Reach/IATF16949/ISO9001
-
Model NumberGM25-320
-
Document
-
Minimum Order Quantity1000Pcs
-
PriceNegotiation
-
Packaging DetailsFoam Carton
-
Delivery Time35-45Days
-
Payment TermsL/C,D/P,T/T,Western Union,D/A
-
Supply Ability10000PCS/Day
25mm Metal 320 Small Geared Motor Electric Motor Gear Reduction Box Metal Gearbox Motor
25mm Metal 320 Small Geared Motor Electric Motor Gear Reduction Box Metal Gearbox
-
Industrial-Grade Construction: Precision 25mm metal gearbox with hardened steel gears for extended durability
-
High Torque Output: Optimized gear reduction delivers superior torque for demanding mechanical systems
-
Compact & Versatile: Space-saving design (25mm diameter) ideal for integration in assembled products
-
Reliable Performance: Consistent operation through 50,000+ cycles - perfect for repeat-use mechanisms
-
Easy Integration: Standard mounting patterns and shaft configurations simplify production assembly
Key Features:
-
Operating Voltage: 3V DC to 24V DC (Customizable up to 24V DC upon request).
-
Weight: Approximately 92g (varies with the selected reduction ratio).
- 320 Motor Size:24.4mm*18.1mm(Dia*L)
- 320 Motor Type:RF-320/RK-320
- Gearbox Diameter:25mm
- Gearbox Step Height:2.5mm
- Mounting Screw Holes Size:3mm
- Screw Hole Size:17mm
- Output Shaft Diameter:4mm ,3.5mm D shaft
- Gearbox Step Diameter:7mm
- Terminal Diastance:18.1mm
25mm Metal 320 Small Geared Motor - Premium Power Solution for Retail & OEM Applications
Product Highlights:
Ideal for Component Suppliers & Retailers:
✔ Retail Advantage: Ready-to-stock item with strong demand in DIY/repair markets
✔ OEM Ready: Consistent quality for incorporation into larger mechanical systems
✔ Multiple Ratio Options: Available in common reduction ratios (10:1 to 200:1)
✔ Custom Branding: Private labeling available for wholesale orders
Why Distributors Choose This Unit?
→ High margin potential with competitive bulk pricing
→ Low return rates (<0.5% in field testing)
→ Compatible with common replacement parts inventory
25mm 320 Mini Motor DC With Gearbox Parameter List
|
Model |
Volt |
No-load |
At Maximum Efficiency |
Stall |
|||||
|
V |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
|
|
r/min |
A |
r/min |
A |
Kg.cm |
W |
Kg.cm |
A |
||
|
GA25Y320-103 |
3.0 |
17 |
0.02 |
11 |
0.04 |
0.25 |
0.3 |
0.77 |
0.13 |
|
GA25Y320-227 |
3.0 |
8 |
0.02 |
5 |
0.04 |
0.5 |
0.2 |
1.5 |
0.13 |
|
GA25Y320-499 |
3.0 |
3.5 |
0.02 |
2.5 |
0.04 |
1.0 |
0.2 |
3.0 |
0.13 |
|
GA25Y320-21 |
6.0 |
335 |
0.05 |
230 |
0.25 |
0.2 |
0.47 |
0.7 |
0.6 |
|
GA25Y320-47 |
6.0 |
150 |
0.05 |
100 |
0.25 |
0.39 |
0.41 |
1.3 |
0.6 |
|
GA25Y320-103 |
6.0 |
70 |
0.05 |
47 |
0.25 |
0.78 |
0.38 |
2.7 |
0.6 |
|
GA25Y320-227 |
6.0 |
31 |
0.05 |
21 |
0.25 |
1.5 |
0.33 |
5.3 |
0.6 |
|
GA25Y320-499 |
6.0 |
14 |
0.05 |
9 |
0.25 |
3.0 |
0.30 |
10 |
0.6 |
|
GA25Y320-21 |
12.0 |
495 |
0.05 |
325 |
0.3 |
0.35 |
1.1 |
1.4 |
0.7 |
|
GA25Y320-47 |
12.0 |
220 |
0.05 |
145 |
0.3 |
0.65 |
0.97 |
2.5 |
0.7 |
|
GA25Y320-103 |
12.0 |
100 |
0.05 |
66 |
0.3 |
1.3 |
0.89 |
5.1 |
0.7 |
|
GA25Y320-227 |
12.0 |
45 |
0.05 |
30 |
0.3 |
2.5 |
0.80 |
10 |
0.7 |
|
GA25Y320-499 |
12.0 |
20 |
0.05 |
13 |
0.3 |
5.0 |
0.71 |
20 |
0.7 |
*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.
25mm Metal 320 Small Geared Motor Electric Motor Dimensions
|
Ratio |
4.21-9.7 |
20.4-21.3 |
34-47 |
75-103 |
164-227 |
362-499 |
|
Shaft Length |
17mm |
19mm |
21mm |
23mm |
25mm |
27mm |
