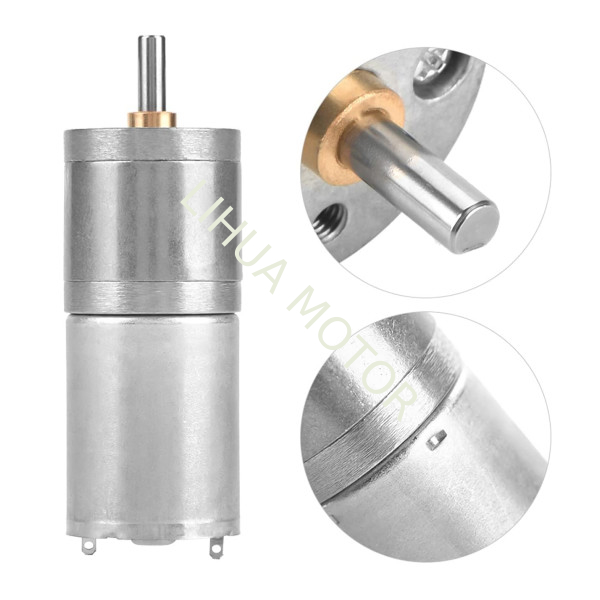

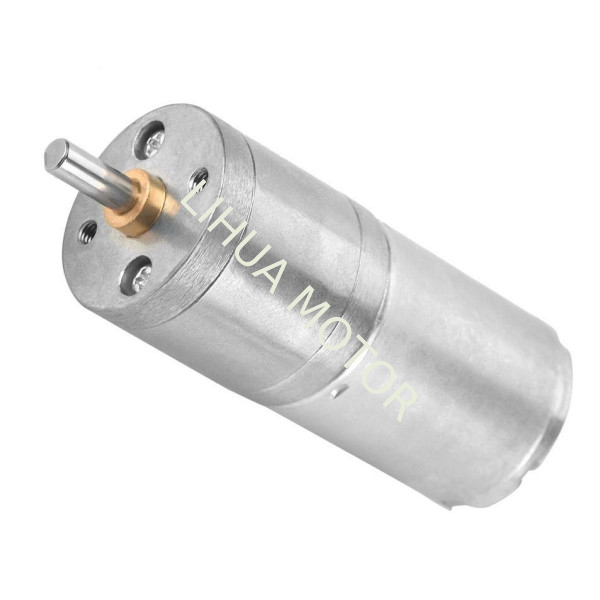

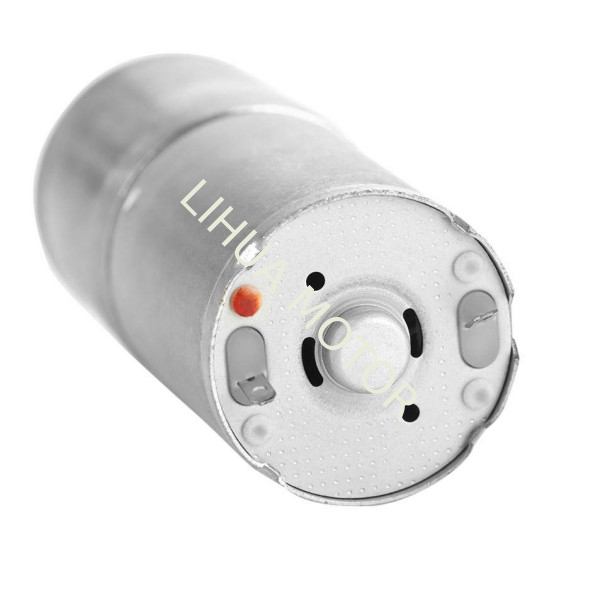

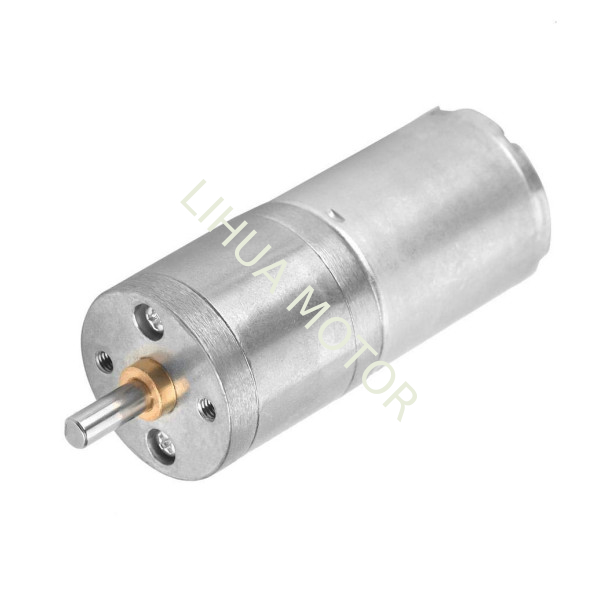

370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
-
Highlight
12V DC Motor With Gearbox
,12 Volt DC Motor With Gearbox
,25mm Small High Torque DC Motor
-
Motor TypeGM25-370/GA25Y370
-
Ratio4.2:1-499:1
-
Rated Volt3V-24V Custom
-
No-load Speed100Rpm Or Custom As Your Need
-
No-load Current≤0.2A
-
Stall Torque20KG.CM Or Custom
-
ODM/OEMAccepted
-
Category25mm Gear Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationCE/RoHs /Reach/IATF16949/ISO9001
-
Model NumberGM25-370/GA25Y370
-
Document
-
Minimum Order Quantity1000Pcs
-
PriceNegotiation
-
Packaging DetailsFoam Carton
-
Delivery Time35-45Days
-
Payment TermsL/C,D/P,T/T,Western Union,D/A
-
Supply Ability10000PCS/Day
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
25mm 370 Gear Reduction Box 12 Volt DC Motor With Gearbox Small High Torque DC Motor
25mm Gear Motor Specifications
-
Model: GA25-370 PMDC motor with gearbox
-
Gearbox Type: 25mm diameter metal spur gear reducer
-
Motor Size: 24.4mm × 30.8mm ( Diameter × Length)
-
Shaft: Φ4mm D-cut 3.5mm, or customizable
-
Gearbox Dimensions: 25mm (D) × Customizable Length
-
Shaft Size: Approx. 4 × L mm (Diameter × Length)
-
Nominal Voltage: DC 3V /6V / 12V
-
Operating Voltage: 3V - 12V
-
Speed Options:
-
DC 12V gearbox motor 1350 rpm max
-
11 rpm 12V DC motor with gearbox
-
6V 1400 rpm max DC motor
-
Other available speeds: 16RPM, 42RPM, 105RPM, 260RPM, 15RPM, 40RPM, 100RPM, 250RPM
-
-
Commutation: Carbon brush / Graphite brush / Metal brush
-
Motor Type: 370 PMDC motor with gearbox, permanent magnet, iron-cored DC motor
25mm 370 Gear Reduction Box Motor Parameter List
|
Model |
Volt |
No-load |
At Maximum Efficiency |
Stall |
|||||
|
V |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
|
|
r/min |
A |
r/min |
A |
Kg.cm |
W |
Kg.cm |
A |
||
|
GA25Y370-21 |
3 |
185 |
0.09 |
138 |
0.36 |
0.27 |
0.4 |
1.3 |
1.1 |
|
GA25Y370-47 |
3 |
83 |
0.09 |
61 |
0.36 |
0.51 |
0.3 |
2.4 |
1.1 |
|
GA25Y370-103 |
3 |
37 |
0.09 |
28 |
0.36 |
1 |
0.3 |
4.9 |
1.1 |
|
GA25Y370-227 |
3 |
17 |
0.09 |
12 |
0.37 |
2 |
0.3 |
9.7 |
1.1 |
|
GA25Y370-499 |
3 |
7.5 |
0.09 |
5.5 |
0.37 |
4 |
0.2 |
19 |
1.1 |
|
GA25Y370-4.2 |
6 |
1400 |
0.15 |
1150 |
0.5 |
0.13 |
1.5 |
0.73 |
2.1 |
|
GA25Y370-9.3 |
6 |
645 |
0.15 |
520 |
0.5 |
0.27 |
1.4 |
1.4 |
2.1 |
|
GA25Y370-20.4 |
6 |
294 |
0.15 |
240 |
0.5 |
0.53 |
1.3 |
2.8 |
2.1 |
|
GA25Y370-34 |
6 |
175 |
0.15 |
140 |
0.5 |
0.75 |
1.1 |
4 |
2.1 |
|
GA25Y370-74.8 |
6 |
80 |
0.15 |
65 |
0.5 |
1.5 |
1 |
8 |
2.1 |
|
GA25Y370-164.6 |
6 |
36 |
0.15 |
30 |
0.5 |
3 |
0.9 |
16 |
2.1 |
|
GA25Y370-499 |
6 |
12 |
0.15 |
9 |
0.5 |
8 |
0.8 |
/ |
2.1 |
*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.
12V Low Output 370 Gearmotor Types
|
Model |
Volt |
No-load |
At Maximum Efficiency |
Stall |
|||||
|
V |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
|
|
r/min |
A |
r/min |
A |
Kg.cm |
W |
Kg.cm |
A |
||
|
GA25Y370-4.2 |
12 |
1350 |
0.05 |
1175 |
0.2 |
0.08 |
1 |
0.63 |
1.1 |
|
GA25Y370-9.3 |
12 |
615 |
0.05 |
535 |
0.2 |
0.16 |
0.9 |
1.2 |
1.1 |
|
GA25Y370-20.4 |
12 |
280 |
0.05 |
240 |
0.2 |
0.32 |
0.8 |
2.4 |
1.1 |
|
GA25Y370-34 |
12 |
165 |
0.05 |
140 |
0.2 |
0.45 |
0.7 |
3.5 |
1.1 |
|
GA25Y370-74.8 |
12 |
75 |
0.05 |
65 |
0.2 |
0.98 |
0.7 |
7.6 |
1.1 |
|
GA25Y370-164.6 |
12 |
34 |
0.05 |
29 |
0.2 |
1.8 |
0.6 |
13 |
1.1 |
|
GA25Y370-499 |
12 |
11 |
0.05 |
9.5 |
0.2 |
4.8 |
0.5 |
/ |
1.1 |
*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.
12V Powerful 25mm 370 Size Gearbox Motor Types
|
Model |
Volt |
No-load |
At Maximum Efficiency |
Stall |
|||||
|
V |
Speed |
Current |
Speed |
Current |
Torque |
Output
|
Torque |
Current |
|
|
r/min |
A |
r/min |
A |
Kg.cm |
W |
Kg.cm |
A |
||
|
GA25Y370-4.2 |
12 |
1870 |
0.1 |
1380 |
0.65 |
0.25 |
3.5 |
0.95 |
2.2 |
|
GA25Y370-9.3 |
12 |
850 |
0.1 |
620 |
0.65 |
0.51 |
3.3 |
1.9 |
2.2 |
|
GA25Y370-20.4 |
12 |
387 |
0.1 |
280 |
0.65 |
0.99 |
2.9 |
3.7 |
2.2 |
|
GA25Y370-34 |
12 |
230 |
0.1 |
165 |
0.65 |
1.4 |
2.4 |
5.2 |
2.2 |
|
GA25Y370-74.8 |
12 |
105 |
0.1 |
75 |
0.65 |
2.8 |
2.2 |
10 |
2.2 |
|
GA25Y370-164.6 |
12 |
47 |
0.1 |
34 |
0.65 |
5.5 |
1.9 |
20 |
2.2 |
|
GA25Y370-499 |
12 |
15 |
0.1 |
11 |
0.65 |
15 |
1.7 |
/ |
2.2 |
*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.
25mm Metal 300 Small Geared Motor Electric Motor Dimensions
|
Ratio |
4.21-9.7 |
20.4-21.3 |
34-47 |
75-103 |
164-227 |
362-499 |
|
Shaft Length |
17mm |
19mm |
21mm |
23mm |
25mm |
27mm |
