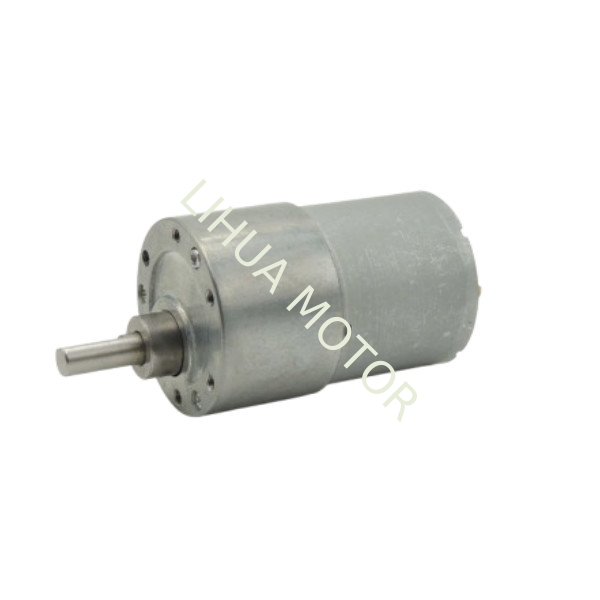

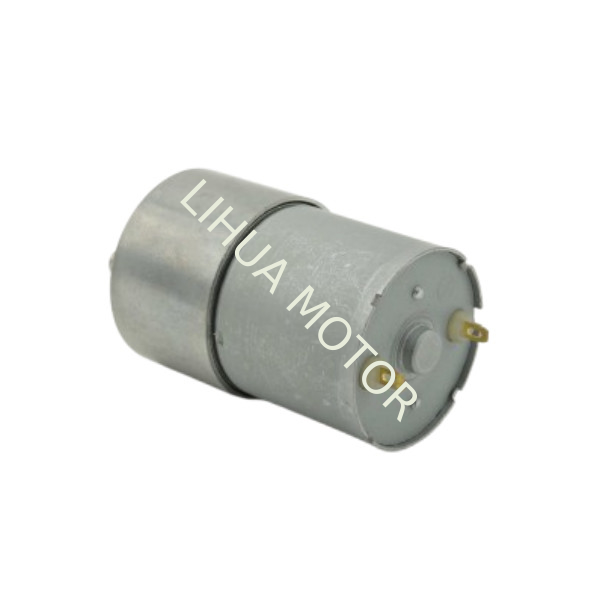

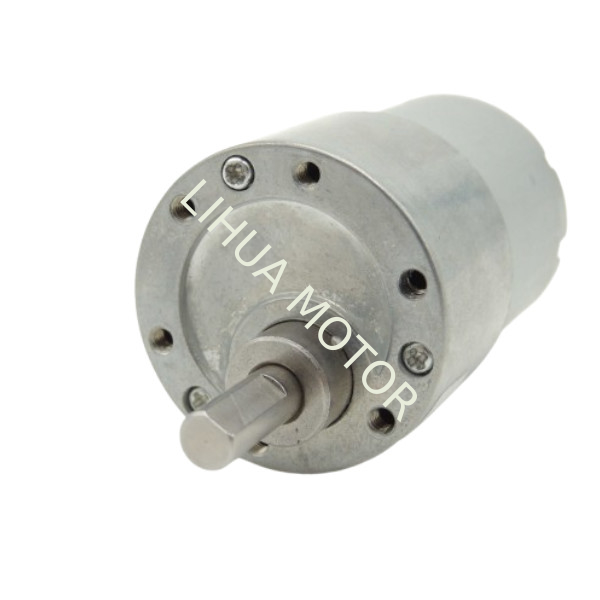

37mm 6V 12V 24V 3035 Mini DC Motor With Gearbox Gear Motor Low Rpm High Torque

37mm 6V 12V 24V 3035 Mini DC Motor With Gearbox Gear Motor Low Rpm High Torque

Products - Motor Gearbox DC
  • Highlight

    12V Mini DC Motor With Gearbox

    ,

    3035 Mini DC Motor With Gearbox

    ,

    Gear Motor Low Rpm High Torque

  • Motor Type
    37-3530 Motor/GB37Y3530
  • Ratio
    210:1
  • Rated Volt
    24V
  • No-load Speed
    28Rpm Or Custom As Your Need
  • No-load Current
    ≤0.08A
  • Stall Torque
    40kgf.m
  • ODM/OEM
    Accepted
  • Category
    37mm Gear Motor
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor/HCS Motors
  • Certification
    CE/RoHs /Reach/IATF16949/ISO9001
  • Model Number
    37-3530 motor/GB37Y3530
  • Minimum Order Quantity
    1000Pcs
  • Price
    Negotiation
  • Packaging Details
    Foam Carton
  • Delivery Time
    35-45Days
  • Payment Terms
    L/C,D/P,T/T,Western Union,D/A
  • Supply Ability
    10000PCS/Day

37mm 6V 12V 24V 3035 Mini DC Motor With Gearbox Gear Motor Low Rpm High Torque

  • 37mm 6V 12V 24V 3035 Mini DC Motor With Gearbox Gear Motor Low Rpm High Torque
  • 37mm 6V 12V 24V 3035 Mini DC Motor With Gearbox Gear Motor Low Rpm High Torque
  • 37mm 6V 12V 24V 3035 Mini DC Motor With Gearbox Gear Motor Low Rpm High Torque
Get Price Contact Now

37mm 6V 12V 24V 3035 Mini Dc Motor With Gearbox Gear Motor Low Rpm High Torque

This mini DC motor with gearbox delivers exceptional torque density in a compact 30mm*35mm mini dc motor, featuring a durable 37mm metal gearbox for long-lasting performance.

Key Features:
✔ Multi-Voltage Operation: 6V | 12V | 24V DC options
✔ High Torque Output: Ideal for power-demanding applications
✔ Precision Metal Gearbox: Hardened steel gears for reduced wear
✔ Low RPM Control: Optimized for precise motion applications
✔ Compact Design: 37mm diameter gearbox motor reducer



Technical Specifications:

  • Gearbox Type: Planetary/Spur gear reduction

  • Reduction Ratios: Customizable (10:1 to 810:1)

  • Shaft Options: D-cut, round, or knurled (5mm-6mm)

  • Protection Grade: IP42 standard (IP54 optional)

Applications:

  • Robotics: Joint actuators, gripper mechanisms

  • Industrial Automation: Conveyor drives, valve control

  • Medical Equipment: Precision pump drives

  • Smart Home: Electric curtains, automated furniture



✔ Custom Gear Ratios:

  • Standard options: 21:1 | 47:1 | 103:1 | 227:1 | 499:1

  • Custom ratios available for specialized torque requirements

✔ Premium Construction:

  • All-metal worm gear set for high load capacity

  • Hardened steel gears with <1° backlash

  • Dual ball bearing support



37mm 3035 Mini Dc Motor With Gearbox Gear Motor Low Rpm High Torque Parameter List

Model
　
　

Volt

No-load

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GB37Y3530-10

6.0

500

0.12

430

0.7

0.48

3.2

2.6

3.0

GB37Y3530-30

6.0

165

0.12

147

0.7

1.3

2.9

7

3.0

GB37Y3530-90

6.0

55

0.12

47

0.7

3.5

2.6

18

3.0

GB37Y3530-168

6.0

29

0.14

25

0.7

5.5

2.2

29

3.0

GB37Y3530-270

6.0

18

0.14

16

0.7

9

2.2

47

3.0

GB37Y3530-506

6.0

9.5

0.14

8

0.7

15

2.0

/

3.0

GB37Y3530-810

6.0

6

0.14

5

0.7

24

2.0

/

3.0

GB37Y3530-10

12.0

1000

0.25

750

1.1

1.2

6.5

6.5

6.5

GB37Y3530-30

12.0

333

0.25

250

1.1

3.2

5.8

18

6.5

GB37Y3530-90

12.0

111

0.25

85

1.1

8.7

5.2

49

6.5

GB37Y3530-168

12.0

59

0.25

48

1.1

13

4.4

/

6.5

GB37Y3530-270

12.0

37

0.25

30

1.1

22

4.4

/

6.5

GB37Y3530-506

12.0

19

0.25

16

1.1

30

4.0

/

6.5

GB37Y3530-810

12.0

12

0.25

10

1.1

45

4.0

/

6.5

GB37Y3530-6.25

24.0

960

0.08

780

0.2

0.31

2.5

1.7

1.0

GB37Y3530-10

24.0

600

0.08

490

0.2

0.5

2.5

2.8

1.0

GB37Y3530-18.8

24.0

319

0.08

260

0.2

0.88

2.4

4.8

1.0

GB37Y3530-30

24.0

200

0.08

164

0.2

1.4

2.4

7.6

1.0

GB37Y3530-43.8

24.0

136

0.08

110

0.2

1.8

2.0

9.9

1.0

GB37Y3530-70

24.0

85

0.08

70

0.2

2.8

2.0

16

1.0

GB37Y3530-90

24.0

66

0.08

54

0.2

3.6

2.0

20

1.0

GB37Y3530-131

24.0

45

0.08

37

0.2

4.5

1.7

25

1.0

GB37Y3530-210

24.0

28

0.08

23

0.2

7.2

1.7

40

1.0

GB37Y3530-393

24.0

15

0.08

12

0.2

12

1.5

/

1.0

GB37Y3530-630

24.0

9

0.08

7

0.2

18

1.5

/

1.0

GB37Y3530-810

24.0

7

0.08

5.5

0.2

23

1.3

/

1.0



*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.







37mm 3035 Mini Dc Motor With Gearbox Gear Motor Low Rpm  Dimensions



37mm 6V 12V 24V 3035 Mini DC Motor With Gearbox Gear Motor Low Rpm High Torque 0



Ratio

6.25-10

18.8-30

43.8-90

102-270

306-976

1179-2928

Shaft Length

19mm

21.5mm

24mm

26.5mm

29mm

31.5mm

✔ Compact Design:

  • Base motor: 3035-series mini DC motor

    • 3035 Motor Size:35mm*30mm(Dia*L)
    • 3035 Motor Type:RK-3035
    • With Cable/Without Cable can custom
    • Terminal Height:4.5mm

  • Gearbox: 37mm worm drive reducer

    • Gearbox Diameter:37mm
    • Gearbox Step Height:6mm
    • Mounting Screw Holes Size:3mm
    • Screw Hole Size:31mm
    • Output Shaft Diameter:6mm ,5.4mm D shaft
    • Gearbox Step Diameter:12mm
    • Gearbox Length can be custom:19mm /21.5mm/24mm/26.5mm/29mm/31.5mm
