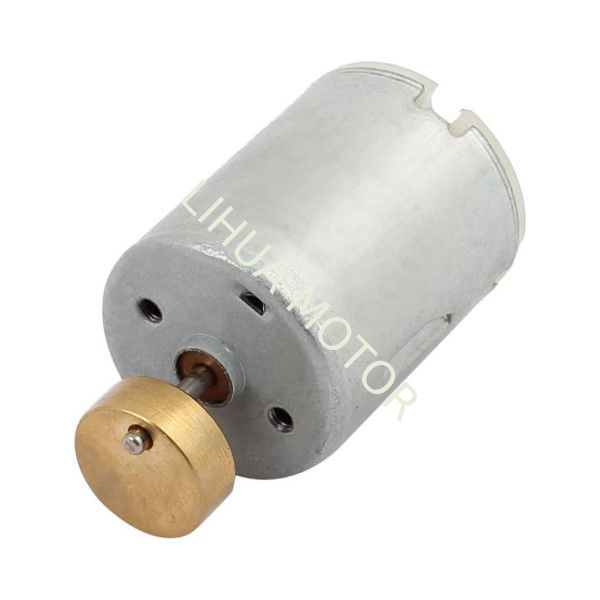

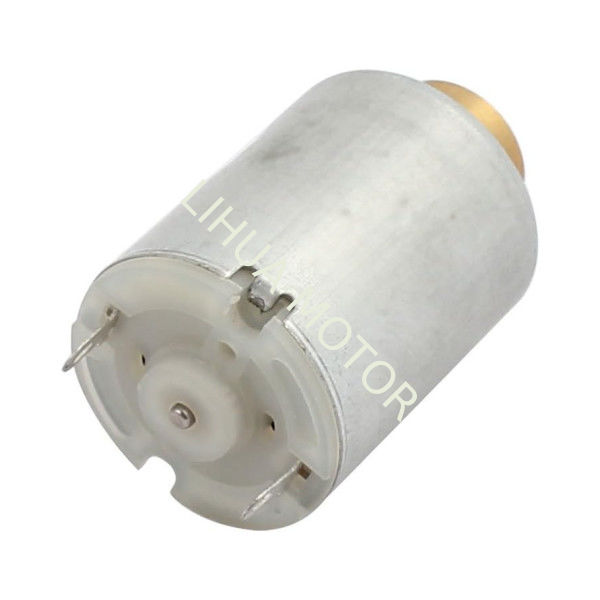

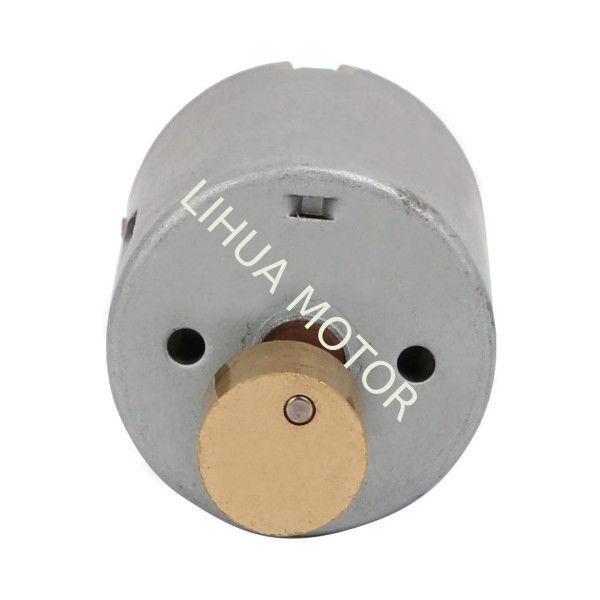

R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor

R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor

Products - Brushed Motor DC
  • Motor Type
    RC-280SA
  • Shaft Diameter
    2mm
  • Motor Body Size
    24mm*30.5mm
  • Rated Voltage
    3V -12V
  • Operating Temperature
    -20°C To 80°C
  • Noise Level
    ＜45 DB
  • Applications
    Hair Clipper/Massager/DIY Toys/Radio Control Model/Vibrator
  • No-load Speed
    2600rpm Or Custom
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor/ HCS Motors
  • Certification
    ISO9001/Reach/RoHs/SGS/CE
  • Model Number
    RC-280
  • Minimum Order Quantity
    3000pcs
  • Price
    Negotiation
  • Packaging Details
    Foam Inner /Carbon Outer
  • Delivery Time
    30-45Days
  • Payment Terms
    L/C,D/A,D/P,T/T,Western Union,MoneyGram
  • Supply Ability
    12000pcs/Day

R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor

  • R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor
  • R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor
  • R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor
  • R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor
Get Price Contact Now

R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor

RC-280SA Motor Technical Parameter

  • *RC-280SA DC Motor is operating on DC3.0V.
  •  Typical application:home appliances,toys and models, such as hair clipper,massager, vibratior.
  • *Type: RC-280SA
  •  Size: 24.2*24.2*30.5mm (0.95"*0.95"*1.20")
  •  Shaft Diameter: 2.0mm(0.08")
  •  Shaft Length: 10.6mm (0.41")
  •  Mounting Hole: Φ2.3mm
  • Working Voltage: DC 3-9V ；
  • NO LOAD Voltage: 3V DC ；Current: 0.6A ； Speed: 2700±270r/min
  • Opearting Temperature:-20℃ to ＋70℃


Accepted Custom 12V RC-280 Motor Technical Parameters:

Technical Parameter Value
Product Name RC-280 Carbon Brush Motor
Rated Volt 12V
Shaft Type Round/D Shaft/knurling, screw thread
Shaft Length 8±0.5mm
Shaft Diameter 2mm
Direction of Rotation CW/CCW
Size 24.2±0.2mm*30.5mm
Torque(At maximium efficiency) 170g.cm /Custom
Current(At maximium efficiency) ≤1.5A/Custom
Speed 6000RPM/ Or As You Request


R280 DC3V 3000RPM Eccentric Wheel Brushed Vibration DC Motor Permanent Magnet Brushed dc Motor 0


RC-280 24 mm Micro Brush DC Electric Motor Data Table
Model Voltage No Load RATED LOAD Stall
Operating range Rated Speed Current Speed Current Torque Output Efficiency Torque Current
VDC RPM A RPM A mN.m gf.cm W % mN.m gf.cm A
RC-280SA-2865 4.9 - 9.0 6 14000 0.28 11910 1.6 4.46 45.5 5.56 58.0 29.9 305 9.1
RC-280SA-20120 4.5 - 12.0 9 11300 0.14 9540 0.76 4.06 41.3 4.04 59.1 26 265 4.1
RC-280SA-2485 4.5 - 9.6 6 10800 0.18 9130 0.99 3.71 37.8 3.54 59.6 24 245 5.4
RE-280SA-2295 3.0 - 6.0 6 9600 0.14 8150 0.78 3.27 33.3 2.79 59.5 21.6 220 4.4
RE-280SA-2865 1.5 - 4.5 3 7100 0.16 6000 0.88 2.58 26.3 1.62 61.36 12.7 129 4.7
RE-280RA-2865 1.5 – 3.0 3 9200 0.16 7770 0.87 1.98 20.2 1.61 61.7 12.65 129 4.7
RC-280SA-2769 3.0-6.0 6 14000 0.236 11948 1.374 4.31 44 5.40 65.5 29.40 299.9 8

Above all mini motor parameter are available customisation upon your request

Note:1mNm= 1Ncm = 10.2gcm
