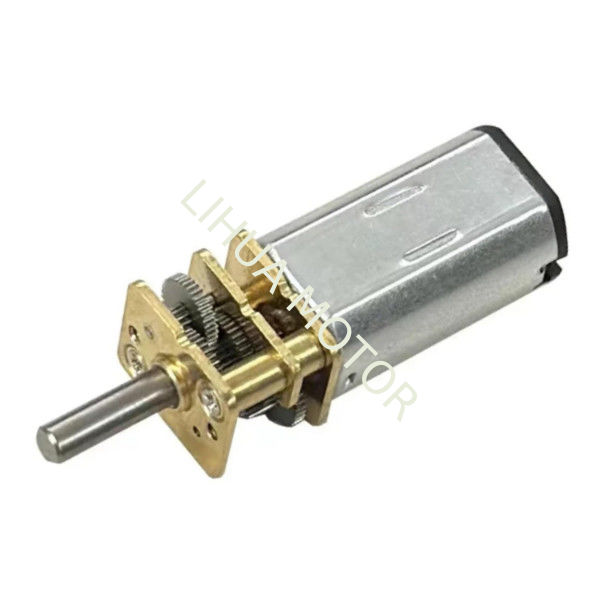

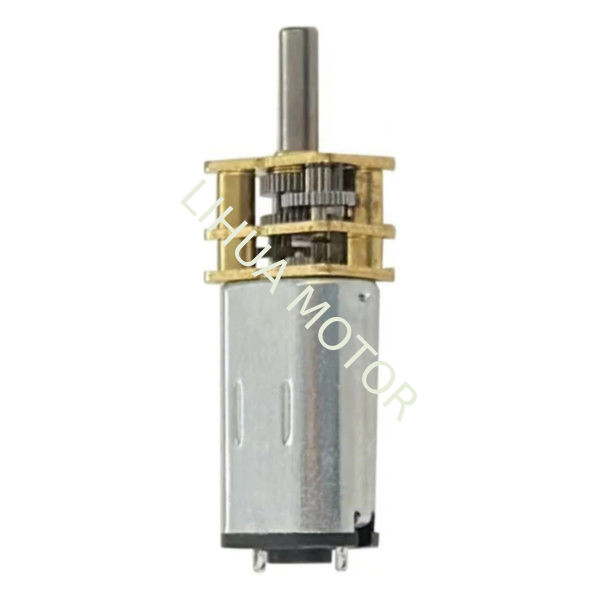

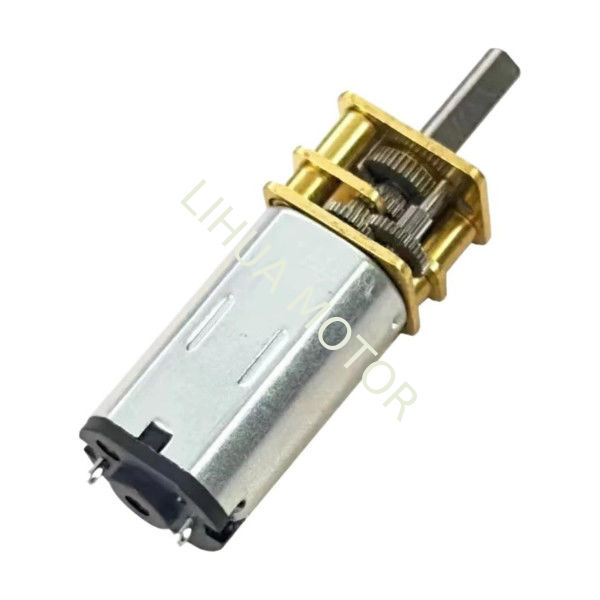

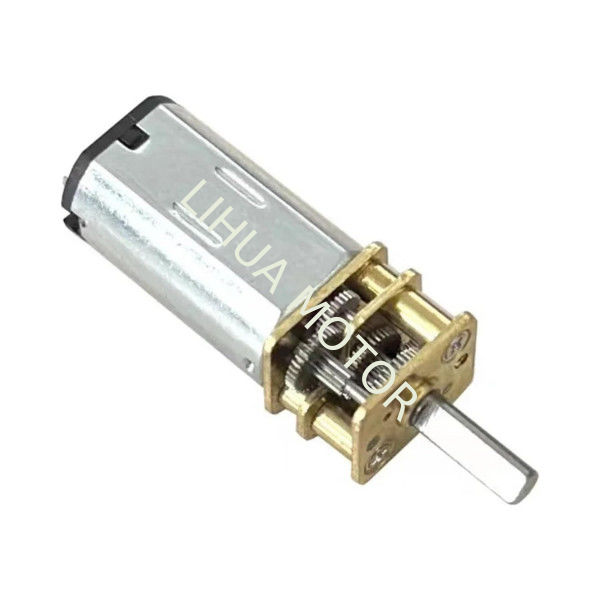

12V PMDC Motor N30 Gearbox DC Motor High Torque Low Rpm Motor With Miniature Gear Box

Products - Motor Gearbox DC

Model

GA12-N30 / GM12-N30 Motor
Ratio

10:1 ，23:1 ，30：1 , 100:1 ，210:1 ，380:1 ， 1000:1
Voltage Range

DC 1.5V,3V,6V,9V,12V
Motor Body Size

10mmD*12mmH*20mmL (Without Gearbox Length )
Gearbox Size

10mm D *12mm W (Gearbox Height Can Be Chose)
Motor Category

12mm Gear Reduction Motor
No-load Speed

15rpm,30rpm,50rpm，100rpm,125rpm
Custom Service

ODM/OEM Accepted
Weight

13g
Place of Origin

Gongguan,China
Brand Name

Lihua Motor/HCS Motors
Certification

ISO9001,CE,RoHs,Reach,SGS
Model Number

GA12-N30 Motor / GM12-N30 Motor
Document

GA12-N30 Geared Motor.pdf
Minimum Order Quantity

1000pcs
Price

Negotiation
Packaging Details

Foam Box
Delivery Time

40-45days
Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability

10000pcs/day

12V PMDC Motor N30 Gearbox DC Motor High Torque Low Rpm Motor With Miniature Gear Box

Name: 12V PMDC Motor N30 Gearbox DC Motor High Torque Low Rpm Motor With Miniature Gear Box
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: GA12-N30 Motor / GM12-N30 Motor
Price: 9.35 USD
Availability: InStock

button button

Get Price Contact Now

12V PMDC Motor N30 Gearbox DC Motor High Torque Low Rpm Motor With Miniature Gear Box

GA12-N30 /GM12-N30 series represents a premium 12mm DC spur gear motor with full metal gearbox, delivering 33RPM @6V with exceptional torque density. Engineered for precision motion control in space-constrained applications.

Key Specifications:

✔ Motor specifications: 10*12*20 MM (N30 motor)

✔ Geared motor shaft diameter: 3 MM(D Shaft 2.5mm) Or custom

✔ Geared motor length: 29.2 MM (motor + gearbox)

✔ Gearbox length: 9 MM/12MM

✔ Screw Holes Size:M1.6*0.35

✔ Rated Voltage: DC 1.5V,3V,6V,9V,12V

✔ No-laod Revolving speed custom:
34RPM/50 RPM /83 RPM / 108 RPM / 145 RPM / 200RPM

✔ Commutation: Metal brush

NOTES:The above list of parameters is a general parameter, if different needs can be processed according to requirements.

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.

12mm PMDC Motor N30 Gearbox DC Motor High Torque Low Rpm Dc Motor Dimensions

12V PMDC Motor N30 Gearbox DC Motor High Torque Low Rpm Motor With Miniature Gear Box 0

12mm N30 Gear Redution Motor Outline Features:

Single N30 Motor Size:12mm*10mm*20mm(H*Dia*L)
Single N30 Motor Type:FF-N30
Gearbox Diameter:12±0.2mm
Gearbox Shaf Diamteter:3mm or 2.5mm D shaft (D-shaped output shaft is processed and milled to increase the force and friction, making the transmission more stable and convenient to connect and fix)
Mounting Screw Holes Size:1.6*0.35mm
Mounting Screw Holes Distance:9mm
Gearbox Outshaft Shape/Length can be custom

13mm DC Motor Gearbox High Torque Low Rpm Dc Motor Parameter

Model	Volt		No-load		At Maximum Efficiency			Stall
	Operating	Nominal	Speed	Current	Speed	Current	Torque	Torque
	Operating	Nominal	r/min	A	r/min	A	N.m	Kgf.cm	N.m
GA12-N30-100	3-9V	6	125	0.03	125	0.09	0.02	1.2	0.12
GA12-N30-298	3-9V	6	42	0.03	35	0.09	0.05	2.5	0.25
GA12-N30-390	3-9V	6	33	0.03	28	0.09	0.05	2.5	0.25
Miniature gear motors are custom-made products. Since each manufacturer has different production processes and naming conventions,there are countless specification types. The above parameters are for reference only. If you would like to get a custom motor solution tailored to your product, please contact us.
