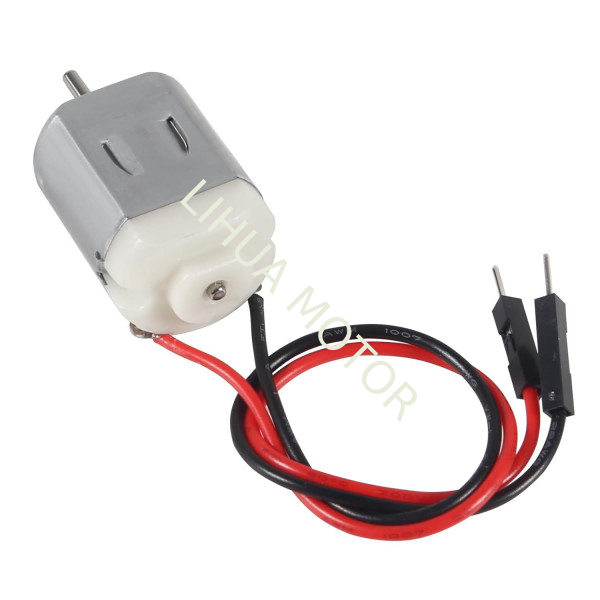

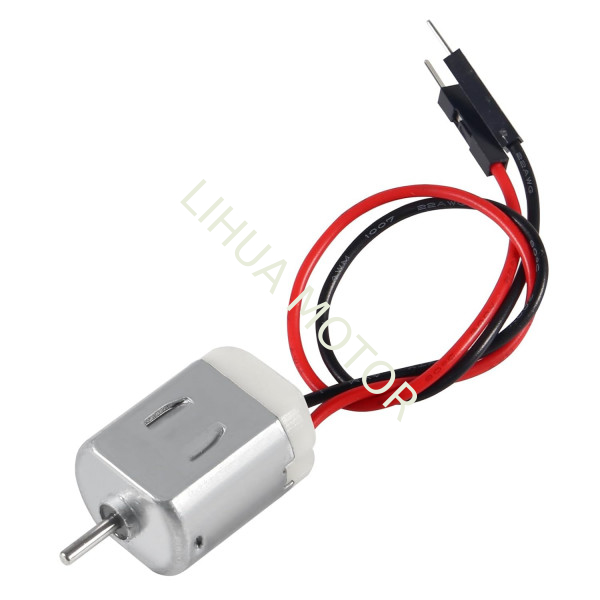

FC-130 Small High Rpm Electric Motors 6V Small Hobby Electric Motors For Arduino Toys

130 Size DC Motor Small High Rpm Motor For Hobby Electric Motor For Arduino Toys

Product Specifications:
130 Type Small DC Motor, operating voltage range: 1V to 6V. Reference current: 0.1–0.3A. Speed: up to 16,000 RPM (at 3V).

Wide Application:
Ideal for toy DIY projects, mini fans, small household appliances, cooling fans, solar/battery-powered toy cars, hair dryers, robotics, science experiments, and more.

Easy to Use:
Comes with two 15cm DuPont crossover wires for easy and direct connection to your device — perfect for quick setup and testing.

130 Size Product Features:
Low noise, smooth operation, high torque, and excellent performance.

Quality Assurance:
100% Satisfaction Guarantee — if you encounter any issues during use, feel free to contact us. We’re happy to help and ensure a worry-free purchase!

Custom Service:

Voltage,speed,torque,current and shaft length can be customized as your need.

FC-130 Hobby Electric Motor  Key Features

• Motor Name/Type:FC-130 micro motor
• Suitable voltage: DC 3.0V-6.0V
• Rated Voltage: 6.0VDC
• Body Size: 27.5mm x 20mm x 15mm
• Shaft Size: 8mm x 2mm diameter
• Weight: 18grams
• Operating Temperature: -10°C ~ +80°C
• Direction of Rotation:CCW
• Test data:
•    Voltage:3.0V  No-load current:160mA  No-load speed:8300RPM
•    Voltage:3.7V  No-load current:175mA  No-load speed:10250RPM
•    Voltage:5.0V  No-load current:185mA  No-load speed:14200RPM
•    Voltage:6.0V  No-load current:200mA  No-load speed:17000RPM

130 Size Motor Dimensions

Why Choose 130 Size Motor from Lihua Motor

High-Performance and Versatile
The FC-130SA-09490 Micro Double Axis Motor is a compact yet powerful motor designed for a wide range of applications. Featuring dual 2mm shafts, this motor is perfect for projects requiring precise control and movement. Its high torque output and efficiency make it suitable for robotics, DIY projects, and more. The motor utilizes brush commutation for reliable performance and is built with a permanent magnet construction, ensuring stable and consistent power delivery.

Durable and Compact Design
The MABUCHI FC-130SA-09490 combines durability with a lightweight, compact design, making it ideal for applications where space and weight are critical. Its straight shaft type and specialized spindle motor construction enhance its reliability in demanding environments. Whether for small-scale projects or larger industrial applications, this motor’s compact size and robust build make it easy to integrate into various designs.

Adaptable Power Range
This motor is highly versatile, supporting a wide voltage range of 6V-12V, with the ability to reach speeds of up to 16,000 RPM at 18V. Its adaptability to different power requirements makes it suitable for both low-speed precision tasks and high-speed applications. Whether you need a reliable motor for DIY projects or a high-performance component for industrial use, the MABUCHI FC-130SA-09490 delivers exceptional performance and flexibility.
