6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox

6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox

Products - Motor Gearbox DC
  • Highlight

    24V DC Gear Motor

    ,

    215RPM DC Gear Motor

    ,

    3035 DC Gear Motor

  • Motor Type
    37-3530 Motor/GB37Y3530 With Encoder
  • Ratio
    10:1
  • Rated Volt
    24V
  • No-load Speed
    1000Rpm Or Custom As Your Need After Gearbox
  • No-load Current
    ≤0.1A
  • Stall Torque
    6.5kgf.m
  • ODM/OEM
    Accepted
  • Category
    37mm Gear Motor
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor/HCS Motors
  • Certification
    CE/RoHs /Reach/IATF16949/ISO9001
  • Model Number
    37-3530 motor/GB37Y3530
  • Minimum Order Quantity
    500Pcs
  • Price
    Negotiation
  • Packaging Details
    Foam Carton
  • Delivery Time
    35-45Days
  • Payment Terms
    L/C,D/P,T/T,Western Union,D/A
  • Supply Ability
    10000PCS/Day

6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox

  • 6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox
  • 6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox
  • 6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox
  • 6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox
Get Price Contact Now

37mm 6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox

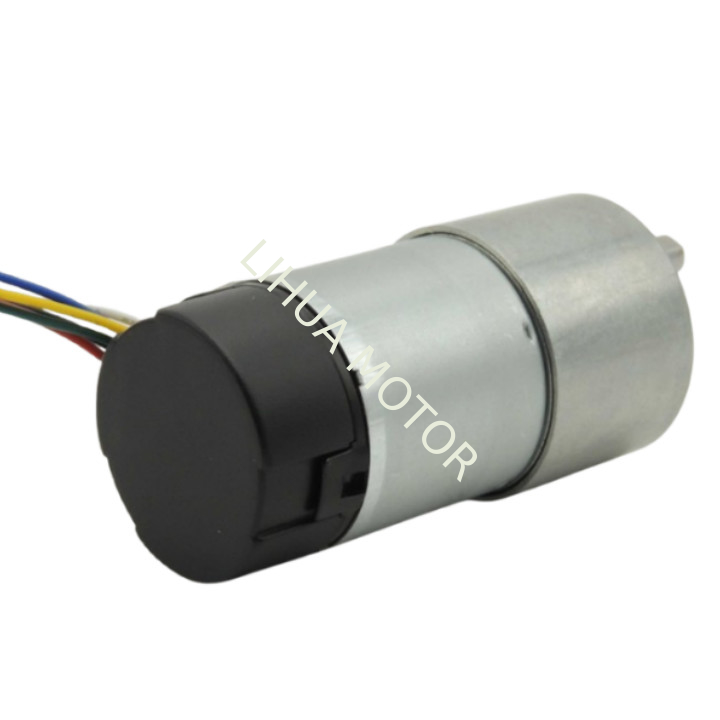

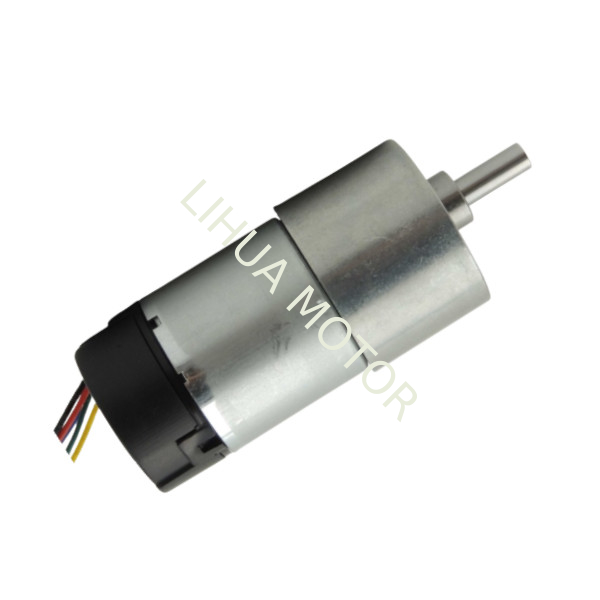

This mini DC motor with gearbox delivers exceptional torque density in a compact 30mm*35mm mini dc motor, featuring a durable 37mm metal gearbox for long-lasting performance.

Key Features:
✔ Multi-Voltage Operation: 6V | 12V | 24V DC options
✔ High Torque Output: Ideal for power-demanding applications
✔ Precision Metal Gearbox: Hardened steel gears for reduced wear
✔ Low RPM Control: Optimized for precise motion applications
✔ Compact Design: 37mm diameter gearbox motor reducer

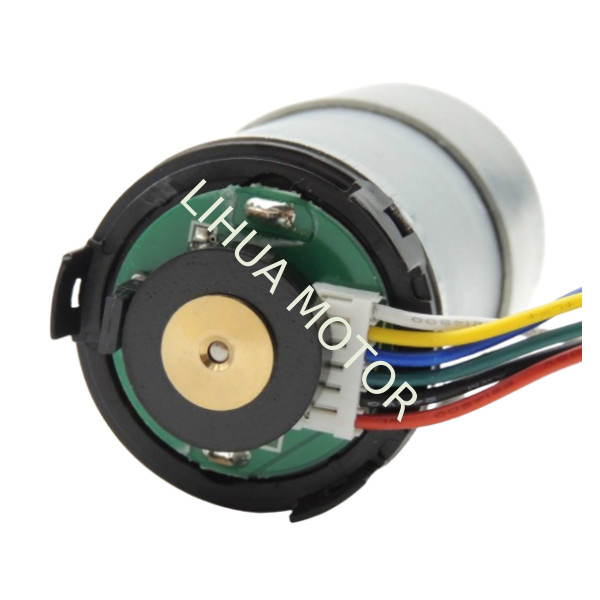

✔Dual-channel Hall effect encoder added to the end of the motor.AB dual output, single pulse per revolution 16CPR, dual upper and lower edge,total output 64CPR



Applications:

  • Robotics: Joint actuators, gripper mechanisms

  • Industrial Automation: Conveyor drives, valve control,Meters

  • Medical Equipment: Precision pump drives

  • Smart Home: Electric curtains, automated furniture

✔ Custom Service:

  • Standard Ratio options: 10:1 |30:1 | 90:1 | 168:1 | 270:1 | 506:1 | 810:1

  • Custom ratios available for specialized torque requirements

  • Voltage/Current/ Torque /Speed
  • Encoder wire length can custom
  • Gearbox Length can custom :19mm/21.5mm/24mm/26.5mm/29mm





37mm 3035 Mini Dc Motor With Gearbox Gear Motor Low Rpm High Torque Parameter List

6V 37mm 3035 Gear Reduction Engine Types





Model
　
　

Volt

No-load　

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GB37Y3530-10EN

6

550

0.12

480

0.7

0.48

3.2

2.6

3.0

GB37Y3530-30EN

6

183

0.12

165

0.7

1.3

2.9

7

3.0

GB37Y3530-90EN

6

55

0.12

47

0.7

3.5

2.6

18

3.0

GB37Y3530-168EN

6

32

0.12

28

0.7

5.5

2.2

29

3.0

GB37Y3530-270EN

6

20

0.12

17

0.7

9

2.2

47

3.0

GB37Y3530-506EN

6

10

0.12

8

0.7

15

2.0

/

3.0

GB37Y3530-810EN

6

6

0.12

5

0.7

24

2.0

/

3.



0



*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.





12V 37mm 3035 Gear Reduction Engine With Encoder Types



Model
　
　

Volt

No-load

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GB37Y3530-10EN

12

1000

0.2

850

1.1

1.2

6.5

6.5

6.0

GB37Y3530-30EN

12

366

0.2

280

1.1

3.2

5.8

18

6.0

GB37Y3530-90EN

12

122

0.2

95

1.1

8.7

5.2

49

6.0

GB37Y3530-168EN

12

65

0.2

40

1.1

13

4.4

/

6.0

GB37Y3530-270EN

12

40

0.2

33

1.1

22

4.4

/

6.0

GB37Y3530-506EN

12

21

0.2

18

1.1

30

4.0

/

6.0

GB37Y3530-810EN

12

13

0.2

11

1.1

45

4.0

/

6.0



*Remarks: The / in the table indicates that it is not possible to Stall, if Stall occurs, it may cause damage to the internal gears.


24V 37mm 3035 Gear Reduction Engine Types



Model
　
　

Volt

No-load

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GB37Y3530-10EN

24

1000

0.1

750

0.9

1.2

6.5

6.5

3.6

GB37Y3530-30EN

24

330

0.1

247

0.9

3.2

5.8

18

3.6

GB37Y3530-90EN

24

110

0.1

82

0.9

8.7

5.2

49

3.6

GB37Y3530-168EN

24

59

0.1

44

0.9

13

4.4

/

3.6

GB37Y3530-270EN

24

37

0.1

30

0.9

22

4.4

/

3.6

GB37Y3530-506EN

24

19

0.1

14

0.9

30

4.0

/

3.6

GB37Y3530-810EN

24

12

0.1

9

0.9

45

4.0

/

3.6

*Remarks: The / in the table indicates that it is not possible to Stall, if Stall occurs, it may cause damage to the internal gears.





37mm 3035 Mini Dc Motor With Gearbox Gear Motor Low Rpm  Dimensions

6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox 0

6V 12V 24V 215RPM 3035 DC Gear Motor With Encoder High Torque Gearbox 1



Ratio

6.3-10

18.8-30

43.8-90

102-270

306-810

Length

19mm

21.5mm

24mm

26.5mm

29mm



✔ Compact Design:

  • Base motor: 3035-series mini DC motor

    • 3035 Motor Size:35mm*30mm(Dia*L)
    • 3035 Motor Type:RK-3035
    • With Cable/Without Cable can custom
    • Terminal Height:4.5mm

  • Gearbox: 37mm worm drive reducer

    • Gearbox Diameter:37mm
    • Gearbox Step Height:5.8±0.3mm
    • Mounting Screw Holes Size:3mm
    • Screw Hole Size:31mm
    • Output Shaft Diameter:6mm ,5.4mm D shaft
    • Gearbox Step Diameter:12mm
    • Gearbox Length can be custom:19mm/21.5mm/24mm/26.5mm/29mm
