Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor

Products - Small Motor
  • Motor Model
    FF-030
  • Motor Type
    Precious Metal Brush Motor
  • Rated Volt
    1V-12V
  • No-load Speed
    1000 Rpm TO 15000rpm
  • Size
    18.6 * 15.5 * 12mm
  • Construction
    Permanent Magnet
  • Application
    Precision Instruments, Household Appliances, Blood Pressure Meter, Etc.
  • Operating Temperature
    -20℃ To +80℃
  • Place of Origin
    Dongguan China
  • Brand Name
    Lihua Motor /HCS Motors
  • Certification
    ISO9001/CE/Reach/RoHs/IATF16949
  • Model Number
    FF-030 Mini DC Motor
  • Document
    9-FF-030-Model.pdf
  • Minimum Order Quantity
    1700pcs
  • Price
    Negotiation
  • Packaging Details
    Carbon Box
  • Delivery Time
    30-45Days
  • Payment Terms
    L/C,T/T,D/A,D/P,Western Union,MoneyGram
  • Supply Ability
    10000PCS/Day

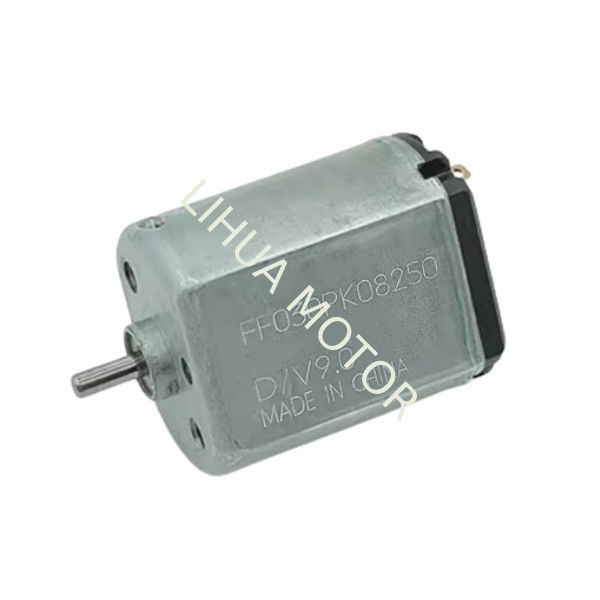

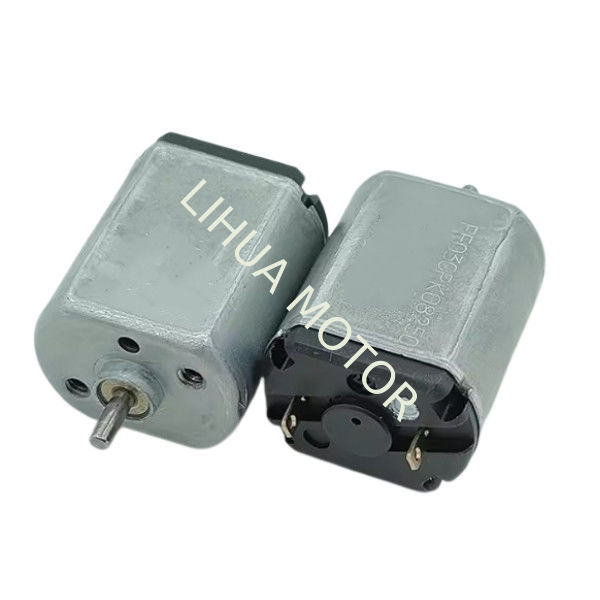

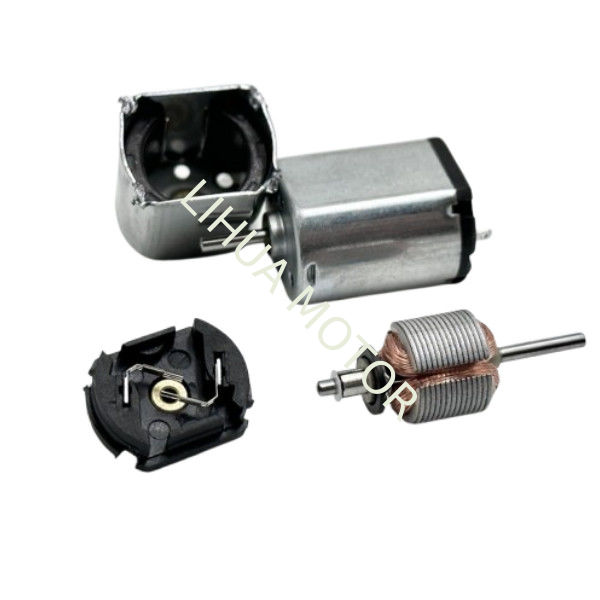

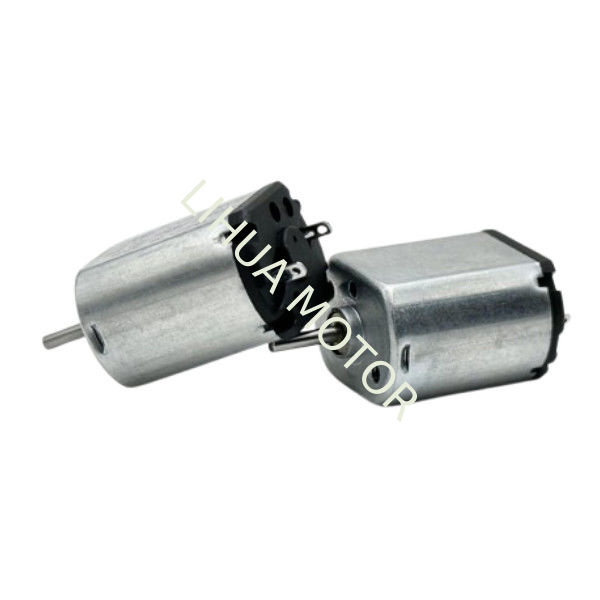

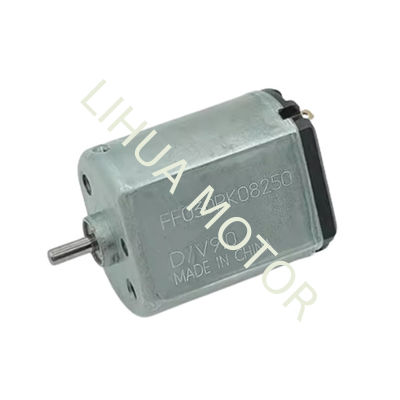

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor

  • Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
  • Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
  • Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
  • Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
  • Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
Get Price Contact Now

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor

16mm Diameter FF-030 Motor Basic Technical Parameters


FF-030 12mm in diameter and 15.5mm in length, the FF-030 is incredibly small and lightweight, making it ideal for space-constrained applications.With a maximum speed of 10700 RPM, this motor delivers the power you need to drive your mini water pump efficiently.


Item

Precise metal brush motor

Motor Type

FF-030

Rated Volt

DC1.5V-12V

No-load Speed

1000RPM to 15000RPM

Output Shaft Length

15.0±0.5mm  Or Customized

Direction of Rotation

CW/CCW

OEM & ODM

Accepted

MOQ

1700 units

Capacity

30,000 units/month

Package

Carton

Place of Origin

Dongguan, Guangdong, China

Delivery Date

Depending on the quantity, please ask the salesman.

Port of Shipment

Shenzhen / Hong Kong



Customized 16mm Diameter FF-030 Motor Variable Speed Parameter Types Table

Model

Voltage

No Load

At Maximum Efficiency

Stall

Operating  Range

Nominal

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

mN-m

g-cm

w

mN-m

g-cm

A

FF-030PA-10180

DC 3.5-6.0V

DC 5.0V

11700

0.05

9230

0.19

0.5

5.1

0.48

2.35

24

0.7

FF-030PA-09180

DC1.0-5.0V

DC 5.0V

10500

0.046

8140

0.16

0.44

4.5

0.37

1.96

20

0.55

FF-030PK-08250

DC1.0-6.0V

DC 2.5V

4100

0.028

2940

0.071

0.21

2.1

0.064

0.74

7.6

0.18

DC 5.0V

10500

0.041

8020

0.13

0.43

4.4

0.36

1.81

19

0.43

FF-030-09210

DC 4.5-6.0V

DC 5.0V

10400

0.045

8000

0.15

0.42

4.3

0.35

1.81

19

0.5

*Note:

All above typical technical data for reference, special requirement can be customized.

1mNm= 1Ncm = 10.2gcm

Customized product models name are available upon request




Hobby Electric Motors 16mm Diameter FF-030 Motor Dimension

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 0

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 1Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 2Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 3


Standard Size Information for FF-030PK Mini Motor


FF-030 Body Size: 18.6*15.5*12mm (L*W*H)
Output Shaft Length: L±0.5mm (Free Custom)
Output Shaft Diameter: 1.5mm
Screw Hole Size:2mm*0.4
Screw Hole Distance: 10.0±0.1mm
Front Step Height:1.5mm
Weight: 10 grams
Unit:mm


Differences Between FF-030 ,FF-031 and FF-032 Mini Motor
DC Motor Type Volt

Standard Motor Size

(L*W*H)

 Brush Type Direction Of Rotation Torque ODM/OEM Pciture Overview
FF-030PK/FF-030 1V-12V 18.6mm*15.5mm*12mm Precious Metal Brushed CW/CCW 19.3g.cm(3V) Accepted Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 4
FF-031PK/FF-031 1V-12V

20mm*14mm*12mm

 Precious Metal Brushed CW/CCW 21.0g.cm(3V) Accepted Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 5
FF-032PKFF-032 1V-12V 18mm*14mm*12mm Precious Metal Brushed CW/CCW 15.5g.cm(3V) Accepted Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 6


Some Customized 030 Mini Motor Types Solutions Display


At Lihua Motor, we specialize in providing tailored micro motor solutions to meet diverse application needs. This showcase features several customized 030 mini motor types, each developed based on specific customer requirements across industries such as smart home devices, personal care tools, and compact robotics. From enhanced torque output to ultra-low noise designs and extended service life, these motor variants demonstrate our R&D team’s ability to deliver high-performance, precision-engineered solutions. Whether for high-speed vibration, stable rotation, or miniaturized structural constraints, our customized 030 motors are built to exceed expectations and drive innovation.
Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 7 Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 8 Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor 9

Electric Message Vibrator Brush 3v Dc Mini Vibration Motor FF-030PK

Hobby Electric Motors Low Speed 030  with Plastic Worm Shaft

Metal Brush Motor DC 3V 5V 6V 8700RPM Mini 12mm*15mm Electric 030 Motor for AV Device/Lock of Car
